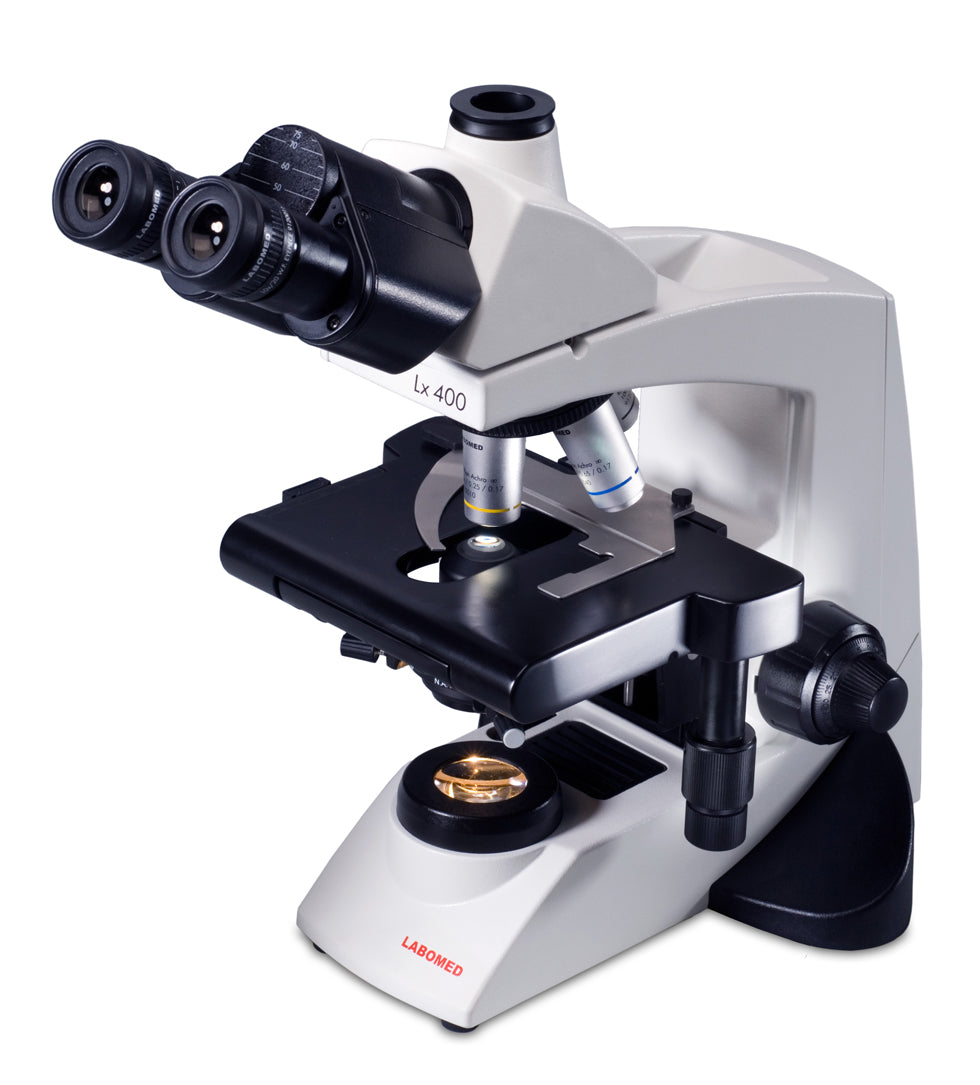

Labomed Lx400 Cytology Microscope
Labomed Lx400 Cytology Microscope

Labomed Lx400 Cytology Microscope

  • SKU: LX400-CY-B-H
$880.00 $1,038.00
  • Binocular or Trinocular
  • Plan Achromat Objectives
  • Rackless Stage
  • LED or Halogen Illumination
  • Dual Viewing Available
Head
Illumination
Request Quote

The Labomed Lx400 Cytology microscope delivers performance without breaking the budget. The microscope comes standard with a rackless mechanical stage and is offered in both halogen or LED illumiation. You can also choose between binocular or trinocular heads. The plan achromat 4x, 10x, and 40x objectives offer clear and crisp images. The hard coated stage comes with a double slide holder.

SPECIFICATIONS
Stand: Single mold sturdy stand with anti rust materials. Extended base for better stability
Viewing Head:

Siedentopf Binocular OR Trinocular 30° inclined, 360° rotatable, Inter-pupillary distance 48 - 75mm

Dual Viewing Unit also available

Eyepiece: Widefield 10x/20mm focussable eyepieces with foldable rubber eye guards, antifungal
Nosepiece: Reverse angle quadruple nosepiece (Ball bearing type) with click stops and rubber grip
Objectives: RP series Infinity Corrected DIN Plan Achromatic objectives 4x, 10x, 40x
Stage:

Rackless X axis, double plate stage size 200 x 160mm, X/Y travel range 78mm x 54mm. Low drive right hand movement controls.

Hard coated surface for scratch resistance. Double specimen holder

Condenser: Sub‐stage Abbe condenser NA 1.25 with blue filter (Halogen Only), Iris diaphragm. Rack and pinion movements on stainless steel guides
Focusing: Coaxial coarse and fine focusing on ball drive system for smooth operation
Illumination:
Options:
  • 6v 30w Halogen Up to 500 hours of Halogen lamp life
  • LED Rechargeable
Electrical: Universal input 100V - 240V AC, 50/60Hz
Accessories: Spare bulb and fuse, immersion oil, dust cover, and cleaning cloth.



The Labomed Lx400 Cytology microscope delivers performance without breaking the budget. The microscope comes standard with a rackless mechanical stage and is offered in both halogen or LED illumiation. You can also choose between binocular or trinocular heads. The plan achromat 4x, 10x, and 40x objectives offer clear and crisp images. The hard coated stage comes with a double slide holder.

SPECIFICATIONS
Stand: Single mold sturdy stand with anti rust materials. Extended base for better stability
Viewing Head:

Siedentopf Binocular OR Trinocular 30° inclined, 360° rotatable, Inter-pupillary distance 48 - 75mm

Dual Viewing Unit also available

Eyepiece: Widefield 10x/20mm focussable eyepieces with foldable rubber eye guards, antifungal
Nosepiece: Reverse angle quadruple nosepiece (Ball bearing type) with click stops and rubber grip
Objectives: RP series Infinity Corrected DIN Plan Achromatic objectives 4x, 10x, 40x
Stage:

Rackless X axis, double plate stage size 200 x 160mm, X/Y travel range 78mm x 54mm. Low drive right hand movement controls.

Hard coated surface for scratch resistance. Double specimen holder

Condenser: Sub‐stage Abbe condenser NA 1.25 with blue filter (Halogen Only), Iris diaphragm. Rack and pinion movements on stainless steel guides
Focusing: Coaxial coarse and fine focusing on ball drive system for smooth operation
Illumination: Options:
  • 6v 30w Halogen Up to 500 hours of Halogen lamp life
  • LED Rechargeable
Electrical: Universal input 100V - 240V AC, 50/60Hz
Accessories: Spare bulb and fuse, immersion oil, dust cover, and cleaning cloth.



  Please Contact Us for all additional parts and accessories
