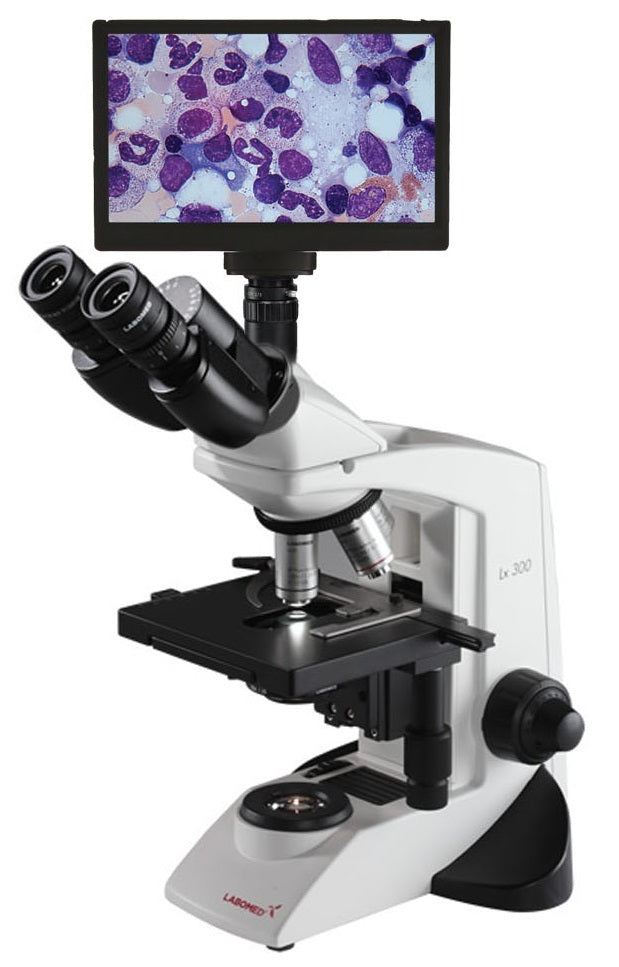

Labomed Lx300 HD Digital Microscope

Labomed Lx300 HD Digital Microscope

Available: In Stock
  • Choose With or Without Screen
  • Infinity Plan Achromat Objectives
  • Scratch Resistant Stage
  • Rechargeable LED Illumination
  • 5 Year Mechanical & 1 Year Electrical Warranty
Wishlist
  • Product SKU: 9136003-HD
$1,633.00 $1,838.00
Request Quote

This complete Lx300 digital microscope package includes your choice of HDMI / USB output camera. You can choose to have an 11.6" retina display screen above the eyepieces to view, capture images / videos to a removable SD card, or replay images / videos. In addition you can also output directly to a PC to capture images into the free software. If you do not select the screen you can still output HDMI to your own screen off to the side, or USB to a computer. The screen just serves as an all-in-one streamlined solution.

The Labomed Lx300 microscope is ideal for educational as well as laboratory use. The microscope was designed with the demand for high quality sharp images with ergonomics at a reasonable price. The microscope can come with a binocular or trinocular viewing head with 10x/18mm eyepieces. The eyepieces lock in to avoid tampering. The quadruple reversed nosepiece houses the EP2 Infinity Plan Achromat 4x, 10x, 40x, and 100x oil objectives. The XY mechanical stage features a scratch resistant coating. The variable LED illumination is rechargeable so you can use it without being plugged in!

The included camera is a powerful tool that can output HDMI to any monitor or USB to a computer. When output HDMI on-board software pops up on your screen and you can control the camera with the included mouse. The camera can also output to a PC and can be used with the feature right included software which allows for image / video capture, measurements, extended depth of focus, annotations, stitching, and more!

Labomed Microscope LX 300 Specifications
Head: Trinocular 45° inclined, 360° rotatable,
Eyepieces: Wide field focusable paired eyepiece 10x/18mm with foldable eye guard, lockable
Nosepiece: Reverse angle quadruple nosepiece (Ball bearing type) with click stops and rubber grip
Objectives: EP2 Plan Achromat DIN Infinity objectives 4x, 10x, 40x (spring loaded), 100x (spring loaded, oil), antifungal
Condenser: Sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with snap-in blue filter. Rack and pinion movements on metal guides
Stage: Double plate stage 150 x 135mm, X-Y travel range 75mm x 40mm with low-height controls. Hard coated surface for scratch resistance. Double specimen holder.
Illumination: Intensity controlled LED (up to 50,000 hours of LED life)
Focusing: Coaxial coarse and fine focus on ball drive system for smooth operation
Accessories: Dust cover, immersion oil & instruction manual included
Warranty: 5 Year Mechanical &1 Year  Electrical



Camera Specifications
Optional Screen: 11.6" Retina Display Screen
Resolution (Live): 1920 x 1080 - Captured  5 M.P.
Sensor:

1/2.5" (0.5x C-mount recommended); APTINA MT9P031

Frame Rate:

HDMI (30fps); USB 2.0 (15fps)

Image Capture: High Speed SD Card (4GB)
Video Capture: HDMI: 1080p, 30fps to SD Card
USB 2.0: 1080p, 15fps to PC or Mac
Exposure Time: 0.001 sec - 10.0 sec
White Balance: Auto
Settings: Gain, Gamma, Saturation, Contraction
Built-in Software: Cloud 1.0
PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function
Image Types: JPEG, BMP, TIFF and RAW
Output Modes: Mode 1: USB 2.0 / Mode 2: HDMI
System Compatibility: Windows XP, Vista 7 and 8, and 10 (32 or 64-bit)
Mac OS X (for image transfer to Mac OS X only)
System Requirements: Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port
Power Supply: DC12V/1A
Warranty: 1 year
