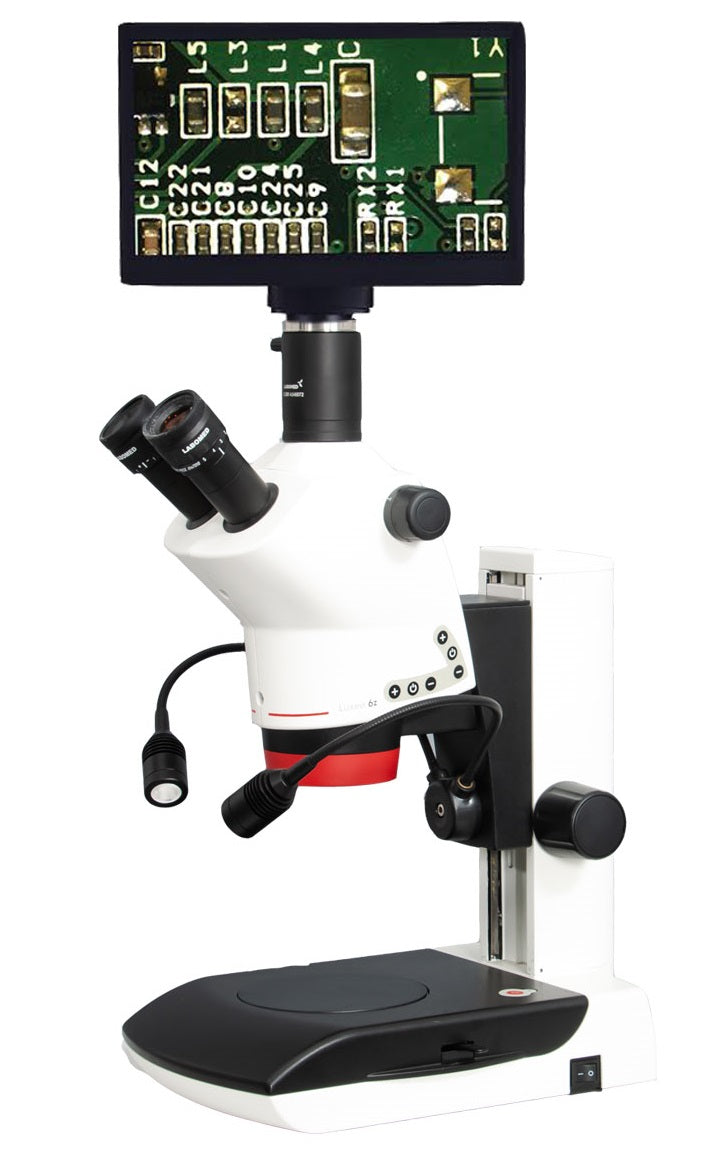

Labomed Luxeo 6Z Digital HD Stereo Microscope on LED Stand

Recently viewed

Labomed Luxeo 6Z Digital HD Stereo Microscope on LED Stand

Labomed Luxeo 6Z Digital HD Stereo Microscope on LED Stand

  • SKU: 4146200-300-HD
$2,610.00 $2,900.00
  • Choose With or Without Screen
  • 8x - 50x Zoom Magnification
  • Built-In LED Ring Light and Dual Goosenecks
  • Brightfield & Darkfield Illlumination
  • 5 Year Mechanical & Electrical Warranty
Camera
Request Quote

This complete Luxeo 6Z digital package includes your choice of HDMI / USB output camera. You can choose to have an 11.6" retina display screen above the eyepieces to view, capture images / videos to a removable SD card, or replay images / videos. In addition you can also output directly to a PC to capture images into the free software (AU-300-HDS). If you do not select the screen (AI-300-HD) you can still output HDMI to your own screen off to the side, or USB to a computer. The screen just serves as an all-in-one streamlined solution.

The Labomed Luxeo 6Z stereo zoom microscope is loaded with features! The microscope offers a wide zoom range of 8x - 50x with the included 10x/22mm FOV eyepieces. The LED stand configuration offers a wide selection of illumination settings including transmitted, reflected, gooseneck, axial illumination, and darkfield! There are two LED flexible goosenecks which are integrated within the focus bracket of the microscope. A built in 23-LED ring light with sectional controls provides for axial illumination with an intuitive membrane switch to conveniently control the light intensity. The LED base offers a removable LED cartridge which provides both bright field and dark field transmitted illumination. The microscope has detents which can be engaged for calibration and accuracy. The trinocular head is a 50/50 light split so you can view through the microscope and show an image with the camera at the same time. This microscope is ideal for education or laboratory use.

The included camera is a powerful tool that can output HDMI to any monitor or USB to a computer. When output HDMI on-board software pops up on your screen and you can control the camera with the included mouse. The camera can also output to a PC and can be used with the feature right included software which allows for image / video capture, measurements, extended depth of focus, annotations, stitching, and more!



SPECIFICATIONS
Head: Binocular or Trinocular 45 Degree
Eyepieces: Widefield 10x/22mm
Magnification Type: 8x - 50x (Detents Can Be Engaged)
Working Distance: 110mm
Stand:

LED Stand

Incident Light - LED ring light w/ Arch & Circular illumination options with intensity control:

-Front Angle Arc Illumination with Cluster of 11 LEDs

-Rear Angle Arc Illumination with Cluster of 12 LEDs

-Circular Illumination with cluster of 23 LEDs

-Goose neck for extra illumination

Detachable BF/DF Base

Accessories: Dust Cover, Power Cord, Manual
Warranty: 5 Year Mechanical & 1 Year Electrical



 Camera Specifications
Optional Screen: 11.6" Retina Display Screen
Resolution (Live): 1920 x 1080 - Captured  5 M.P.
Sensor:

1/2.5" (0.5x C-mount recommended); APTINA MT9P031

Frame Rate:

HDMI (30fps); USB 2.0 (15fps)

Image Capture: High Speed SD Card (4GB)
Video Capture: HDMI: 1080p, 30fps to SD Card
USB 2.0: 1080p, 15fps to PC or Mac
Exposure Time: 0.001 sec - 10.0 sec
White Balance: Auto
Settings: Gain, Gamma, Saturation, Contraction
Built-in Software: Cloud 1.0
PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function
Image Types: JPEG, BMP, TIFF and RAW
Output Modes: Mode 1: USB 2.0 / Mode 2: HDMI
System Compatibility: Windows XP, Vista 7 and 8, and 10 (32 or 64-bit)
Mac OS X (for image transfer to Mac OS X only)
System Requirements: Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port
Power Supply: DC12V/1A
Warranty: 1 year
