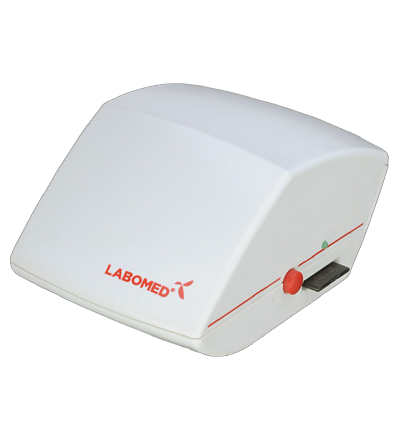

Labomed iVu5100 HD Digital Microscope Camera
![]()
![]()
![Accu-Scope 3000 LED Microscope - Microscope Central
- 2]()
![Accu-Scope 3000 Digital Microscope Package]()
![Accu-Scope EXC-120 Microscope]()
5 MP image resolution with 30 frames per second (fps), vivid color reproduction and high-fidelity in image contrast. Digital interface through USB 2.0 makes this system easy to integrate.
PixelPro Image Capture Software makes still and video capture simple. A modern, intuitive user interface allows users to quickly identify control functions, as well as archive and annotate images with ease.
![0.7X-5X Zoom 1080p 60fps 2MP Auto-focus HDMI Digital Inspection Microscope with Ring-light]()
![0.7X-5X Zoom 1080p 60fps 2MP Auto-focus HDMI Digital Inspection Microscope with Ring-light]()
![3.5X-180X Black Trinocular Stereo Zoom Microscope on Single Arm Boom Stand + 144 Direction Adjustable LED Ring Light & USB3.0 5MP Camera]()
![3.5X-180X Black Trinocular Stereo Zoom Microscope on Single Arm Boom Stand + 144 Direction Adjustable LED Ring Light & USB3.0 5MP Camera]()
![3.5X-90X Simul-Focal Stereo Zoom Microscope on Boom Stand with 144-LED Ring Light and 18MP USB3 Camera]()
![40X-2000X Trinocular Compound Darkfield Microscope with 100X Iris Objective and 1.2MP Low-noise Camera]()
![40X-2000X Trinocular Compound Darkfield Microscope with 100X Iris Objective and 1.2MP Low-noise Camera]()
![40X-2000X Trinocular Compound Darkfield Microscope with Oil Condenser and 100X Iris Objective]()
![40X-2000X Trinocular Compound Darkfield Microscope with Oil Condenser and 100X Iris Objective]()
Did You Know
Most Microscopes Can Be Fully Customized
Confused?
Our Experts Can Help Suggest The Best Microscope For Your Needs
Featured
Accu-Scope 3000 LED Microscope
$1,122.00
$936.00
Accu-Scope 3000 Digital Microscope Package
$2,368.00
$1,977.00
Accu-Scope EXC-120 LED Microscope
$755.00
$630.00
Labomed iVu5100 HD Digital Microscope Camera
$1,325.00
$1,395.00
- Order within
Digital Still and Video Capture...All In One
The super resolution iVu 5100 is a 5 MP high-definition CMOS solution that boasts one of the fastest frame rates in its class, superb contrast, and unparalleled accuracy in color reproduction. This digital solution offers HD video streaming, digital, and an SD card interface in one highly affordable package. Total vertical integration of our camera means better image quality, easy to navigate software, and better end-to-end software and driver support.
iVu 5100 Advantages:
5 MP image resolution with 30 frames per second (fps), vivid color reproduction and high-fidelity in image contrast. Digital interface through USB 2.0 makes this system easy to integrate.
PixelPro Image Capture Software makes still and video capture simple. A modern, intuitive user interface allows users to quickly identify control functions, as well as archive and annotate images with ease.
| Specifications | |
|---|---|
| Sensor: | 1/2.5” 5.0 Megapixel Color CMOS |
| Active area: | 5.70mm x 4.28mm |
| Sensor resolution: | 2592 x 1944 pixels |
| Pixel Size: | 2.2µm x 2.2µm |
| A/D conversion: | 12 Bit RGB |
| Pixel clock: | 48 MHz |
| Dynamic range: | 68 dB (measured at 10 ms exposure) |
| Max. exposure: | 3 seconds (Automatic Exp, WB, BL) |
| Frame rate (image size): | 30fps (1080p) |
| Image resolution: |
2592 x 1944 1280 x 720 |
| Interface: | USB 2.0, HDMI, Secure Digital (SD) Card |
| Optical connection: | C- Mount |
| Voltage supply: | 5V/ 2 Amp (via USB 2.0 connector, optional external power adapter) |
| Power consumption: | approx. 1.8W |
| Power indication | Green LED indicating power on and ready for capture |
| SD Card Slot: | Accepts SD and SDHC (High Capacity) cards |
| Ambient conditions: | Temperature: -30˚C… +70˚C Humidity: 5%... 80%, not condensing |
| Dimensions (LxWxH): | 145mm x 93mm x 123mm |
| Weight: | 600g |
| Capture software: | PixelPro |
| Computer Requirements: | PC: Microsoft Windows® XP/ Vista/ 7 OS, 3 Ghz CPU, 2GB RAM, USB 2.0 |
Digital Still and Video Capture...All In One
The super resolution iVu 5100 is a 5 MP high-definition CMOS solution that boasts one of the fastest frame rates in its class, superb contrast, and unparalleled accuracy in color reproduction. This digital solution offers HD video streaming, digital, and an SD card interface in one highly affordable package. Total vertical integration of our camera means better image quality, easy to navigate software, and better end-to-end software and driver support.iVu 5100 Advantages:
5 MP image resolution with 30 frames per second (fps), vivid color reproduction and high-fidelity in image contrast. Digital interface through USB 2.0 makes this system easy to integrate.
PixelPro Image Capture Software makes still and video capture simple. A modern, intuitive user interface allows users to quickly identify control functions, as well as archive and annotate images with ease.
| Specifications | |
|---|---|
| Sensor: | 1/2.5” 5.0 Megapixel Color CMOS |
| Active area: | 5.70mm x 4.28mm |
| Sensor resolution: | 2592 x 1944 pixels |
| Pixel Size: | 2.2µm x 2.2µm |
| A/D conversion: | 12 Bit RGB |
| Pixel clock: | 48 MHz |
| Dynamic range: | 68 dB (measured at 10 ms exposure) |
| Max. exposure: | 3 seconds (Automatic Exp, WB, BL) |
| Frame rate (image size): | 30fps (1080p) |
| Image resolution: |
2592 x 1944 1280 x 720 |
| Interface: | USB 2.0, HDMI, Secure Digital (SD) Card |
| Optical connection: | C- Mount |
| Voltage supply: | 5V/ 2 Amp (via USB 2.0 connector, optional external power adapter) |
| Power consumption: | approx. 1.8W |
| Power indication | Green LED indicating power on and ready for capture |
| SD Card Slot: | Accepts SD and SDHC (High Capacity) cards |
| Ambient conditions: | Temperature: -30˚C… +70˚C Humidity: 5%... 80%, not condensing |
| Dimensions (LxWxH): | 145mm x 93mm x 123mm |
| Weight: | 600g |
| Capture software: | PixelPro |
| Computer Requirements: | PC: Microsoft Windows® XP/ Vista/ 7 OS, 3 Ghz CPU, 2GB RAM, USB 2.0 |
