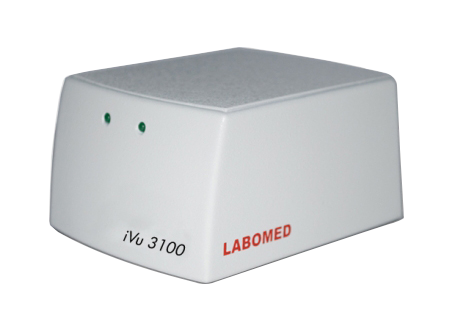

Labomed iVu 3100 Digital Microscope Camera

Labomed Cameras

$945.00  $995.00

Request Quote

Streamline Routine Imaging and Documentation Tasks

The iVu 3100 is a 3 Megapixel digital solution that boasts one of the fastest frame rates in its class, a high definition image, and unparalleled accuracy in color reproduction. Total vertical integration of camera development at Labomed means better image quality, easy to navigate software, and better end-to-end software and driver support.

iVu 3100 Advantages:

3 Megapixel image resolution with 30 frames per second 3 Megapixel image resolution with 30 frames per second (fps), vivid color reproduction and high-fidelity in image contrast.  Digital interfacing is accomplished through USB 2.0, making this system easy to integrate. PixelPro Image Capture Software PixelPro Image Capture Software makes still and video capturing simple.  A modern and easy to navigate user interface allows both teachers and students to quickly identify critical control functions, and to archive and annotate images with complete ease.
Specifications
Sensor: ½” 3.0 Megapixel Color CMOS Active area : 4.52mm x 3.40mm
Sensor resolution: 2048 x 1536 pixel
Scan Mode: Progressive
Pixel Size: 2.2μm x 2.2μm
A/D Conversion:
12 Bit RGB
Pixel clock: 48 MHz
Dynamic range: 56 dB (measured at 10 ms exposure)
Max. exposure: 2S (Automatic Exp, WB, BL)
Frame rate (image size):
30 fps (640 x 480)
Image resolution:
(Standard
Binning):
2048 x 1536
1024 x 768
640 x 480
Digital interface: USB 2.0
Optical connection: C- Mount 0.63x
Power consumption: approx. 1.9W
Ambient conditions: Temperature: -30°C … +70°C
Humidity: up to 80%, not Condensing
Computer Requirements: Microsoft XP/Vista/7 OS, 3 Ghz CPU, 2GB RAM (if 1GB, recommend 64MB graphics card), USB 2.0
