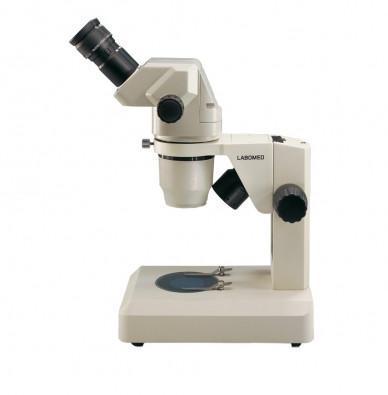

Labomed CZM6 Stereo Microscope

Labomed Microscopes

$974.00

Request Quote
Designed with a robust Greenough optical system, the Labomed CZM6 provides repeatable distortion-free high resolution erect 3-D images. The lateral zoom control adds convenience to operation. Available as a trinocular or binocular stereo microscope, the stand features an ergonomic design that provides fatigue-free operation for routine inspection processes. The large focusing knobs and ball-guide mechanism provide a smooth focusing throughout the entire working range.
Labomed CZM6 Specifications
Head: Binocular OR Trinocular, 45º, 360° rotatable, IPD 54-74mm
Optical System: Greenough
Magnification: 8x-45x Zoom Rage / 6.9:1 Zoom Ratio (With no Objective Lens)
Auxiliary Lens:
 Objective Working Distance  Magnification
0.5x 160mm 3.3-22.5x
1.5x 40mm 9.8-67.5x
2.0x 25mm 13-90x
Eyepieces: WF 10x/22mm focusable eyepieces with rubber eyeguards
Working Distance: 100 mm (Without Auxiliary Objective Lens)
Illumination: Incident (12v20w) and Transmitted (12v10w) dual light stand
Power Supply: Universal 100V - 240V, 50/60Hz integrated power supply with voltage flux stabilizer
Accessories: Black and White Stage Plate, Glass Stage Plate, Nylon Dust Cover
