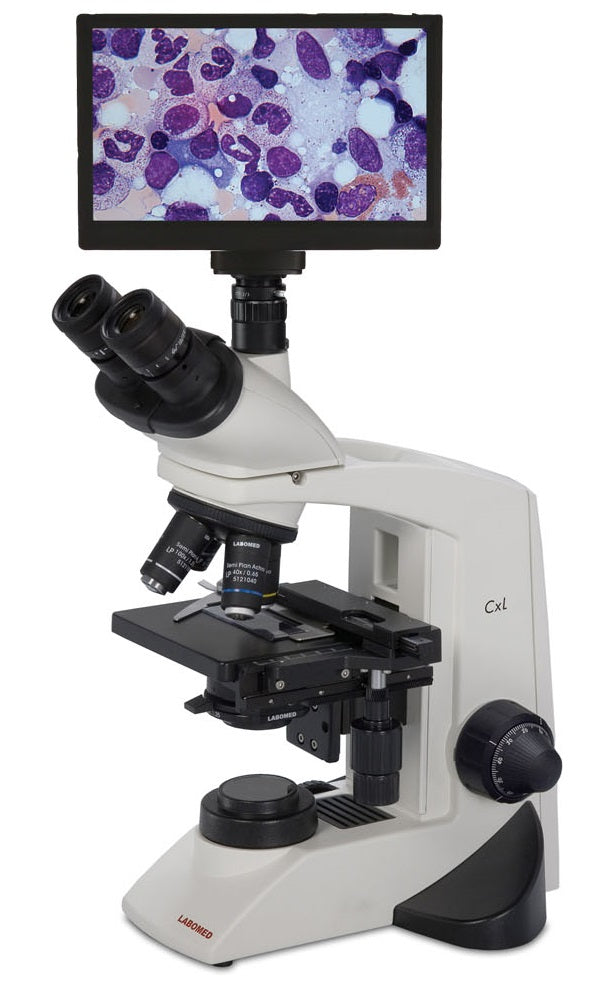

Labomed CxL Digital Microscope Package

Labomed CxL Digital Microscope Package

  • Choose With or Without Screen
  • 4x, 10x, 40x, 100x Oil Objectives
  • Great Value
  • LED Illumination
  • 5 Year Mechanical & Electrical Warranty
Wishlist
  • Product SKU: 9135007-HD
$1,445.00 $1,629.00
Request Quote

This complete Labomed CxL digital microscope package includes your choice of HDMI / USB output camera. You can choose to have an 11.6" retina display screen above the eyepieces to view, capture images / videos to a removable SD card, or replay images / videos. In addition you can also output directly to a PC to capture images into the free software. If you do not select the screen you can still output HDMI to your own screen off to the side, or USB to a computer. The screen just serves as an all-in-one streamlined solution.

The Labomed CxL microscope is ideal for education and low volume laboratory applications. It comes with a trinocular viewing head with c-mount adapter. The 10x/18mm FOV eyepieces lock in place to avoid tampering. The quadruple nosepiece is a ball bearing forward facing nosepiece. You can also choose between 4x, 10x, 40x, or 4x, 10x, 40x, 100x oil DIN Semi Plan Achromat objective lenses. The mechanical XY stage provides smooth and precise movement. The 1.25 N.A. condenser is fully focusable. The microscope can be outfitted with either rechargeable LED or halogen illumination.

The included camera is a powerful tool that can output HDMI to any monitor or USB to a computer. When output HDMI on-board software pops up on your screen and you can control the camera with the included mouse. The camera can also output to a PC and can be used with the feature right included software which allows for image / video capture, measurements, extended depth of focus, annotations, stitching, and more!

Specifications
Head: Trinocular 45° inclined, 360° rotatable,
Eyepieces: Wide field focusable paired eyepiece 10x/18mm with foldable eye guard, lockable
Nosepiece: Quadruple nosepiece turret (Ball bearing type) with rubber grip
Objectives: LP series DIN Semi Plan Achromat 4x, 10x, 40x (spring loaded), 100x (spring loaded, oil), anti fungus
Condenser: Sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with snap-in blue filter. Rack and pinion movements on metal guides
Stage: Rectangular stage 135 x 124mm, X/Y travel range 76mm x 50mm. Low drive movement controls, single specimen holder
Illumination: LED Rechargeable
Focusing: Co-axial coarse and fine focusing on ball drive system for smooth operation. BRASS rack and pinion stage drive. Fine drive movement 0.3mm/rotation
Accessories: Dust cover, immersion oil & instruction manual included
Warranty: 5 Year Mechanical &1 Year  Electrical



 Camera Specifications
Optional Screen: 11.6" Retina Display Screen
Resolution (Live): 1920 x 1080 - Captured  5 M.P.
Sensor:

1/2.5" (0.5x C-mount recommended); APTINA MT9P031

Frame Rate:

HDMI (30fps); USB 2.0 (15fps)

Image Capture: High Speed SD Card (4GB)
Video Capture: HDMI: 1080p, 30fps to SD Card
USB 2.0: 1080p, 15fps to PC or Mac
Exposure Time: 0.001 sec - 10.0 sec
White Balance: Auto
Settings: Gain, Gamma, Saturation, Contraction
Built-in Software: Cloud 1.0
PC Imaging Software: CaptaVision Imaging Software (for PC only; Mac OS not supported)
Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function
Image Types: JPEG, BMP, TIFF and RAW
Output Modes: Mode 1: USB 2.0 / Mode 2: HDMI
System Compatibility: Windows XP, Vista 7 and 8, and 10 (32 or 64-bit)
Mac OS X (for image transfer to Mac OS X only)
System Requirements: Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port
Power Supply: DC12V/1A
Warranty: 1 year

Labomed CxL Brochure
