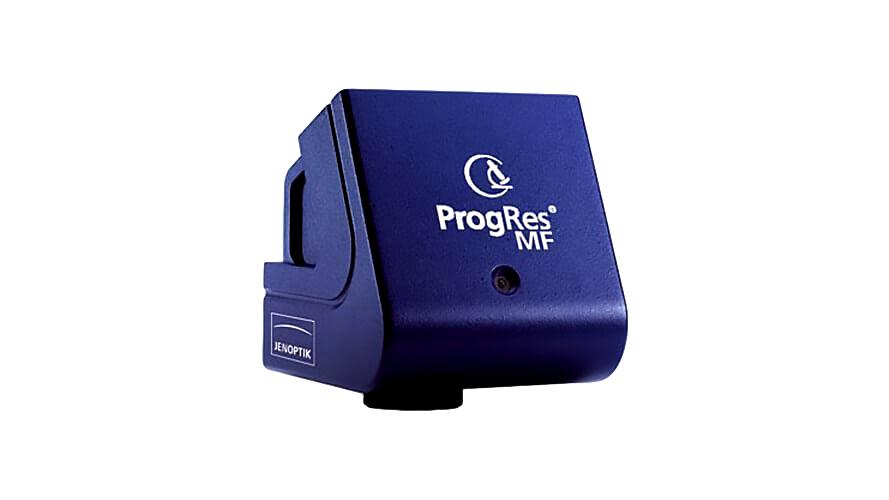

Jenoptik ProgRes MF CCD 1.4 M.P. Monochrome Microscope Camera
Categories
Jenoptik ProgRes MF CCD 1.4 M.P.  Monochrome Microscope Camera
Jenoptik ProgRes MF CCD 1.4 M.P.  Monochrome Microscope Camera

Jenoptik ProgRes MF CCD 1.4 M.P. Monochrome Microscope Camera

Available: In Stock
Wishlist
  • Product SKU: 017953-657-26
$0.00
Request Quote

Available in USB or FireWire

When working with low-light specimens the high sensitivity of ProgRes® MF models warrants brilliant images. Configured with a sensitive 1.4 megapixel CCD sensor and analog gain, MF series cameras feature high frame rates and a broad dynamic range. The digitization is done in 12 Bit.

The delivery includes ProgRes® CapturePro image acquisition software providing comprehensive functionality that has been designed for intuitive handling. The fluorescence mode supports up to five filters, corrects auto fluorescence and automatically merges the individual images.

With IEEE1394 Firewire™ and C-Mount each camera easily connects to any computer and microscope.

Specifications:
Image sensor: 2/3´´ CCD progress. scan
Color / Monochrome: Monochrome
Sensor resolution [max]: 1360 x 1024 pixel [1.4 Mpix]
Active sensor size [H x V]: 8.8 mm x 6.6 mm
Pixel size: 6.45 μm² x 6.45
A / D conversion: 12 bit (USB) / 14 bit (FireWire)
Pixel clock: 12 MHz I 24.5 MHz
Dynamic range: 65 ... 67 dB
Exposure times: 20 μs ... 180 s (USB) / 94 μs ... 180 s (FireWire)
Analog gain: 1x ... 14x (SDK) (USB) / 1x ... 8x (FireWire)
Max. frame rate [image size]: 15 fps [1360 x 1024 pixel] (USB) / 13 fps [1360 x 1024 pixel] (FireWire)
26.5 fps [680 x 512 pixel] (USB) / 51 fps [680 x 512 pixel] (FireWire)
Image resolution: Binning: 2x, 4x, 8x (SDK) (USB) / Binning: 2x ... 10x (SDK) (FireWire)
Cooling: No
Digital interface: USB 2.0 / FireWire
Optical connection: C-Mount (0.63× TV pref.)
Trigger In / Out: Yes
Voltage supply: USB powered / FireWire powered
Power consumption: approx. 2.5 W (USB) / approx. 5 W (FireWire)
Ambient conditions: Temperature: +5 °C ... +35 °C
Humidity: 5 % ... 80 %
non condensing
Storage conditions: Temperature: -10 °C ... +50 °C
Dimensions [L x W x H]: 89 mm x 84 mm x 93 mm
Weight: approx. 700 g
Application software: ProgRes CapturePro for PC (TWAIN); no MAC support (USB)
ProgRes CapturePro for PC/ MAC (TWAIN for PC only) (FireWire)
SDK: ProgRes SDK for PC; no MAC support (USB)
ProgRes SDK for PC, LINUX, MAC (FireWire)
Computer requirements: PC: MS WIN XP/ Vista /WIN 7
Mac: OS X 10.4 or higher (FireWire Only)
3 GHz CPU, 1 GB RAM
256 MB graphics, USB 2.0 / FireWire A
Multicore recommended
