Description

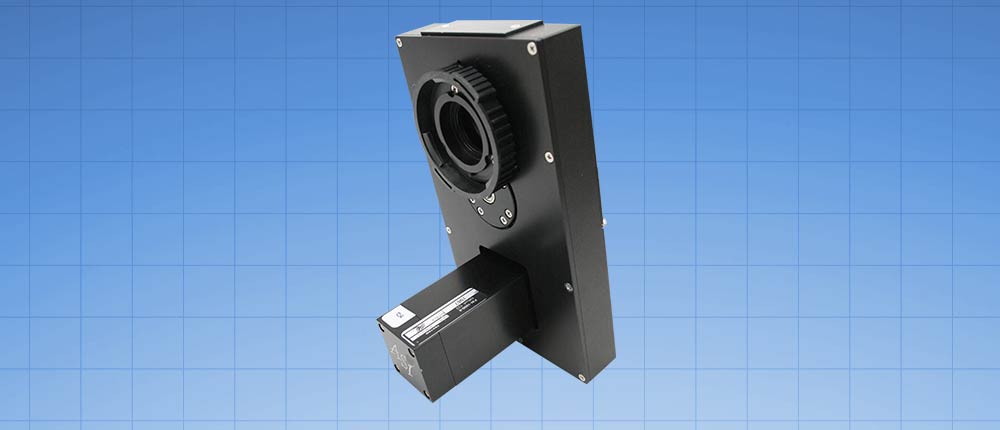

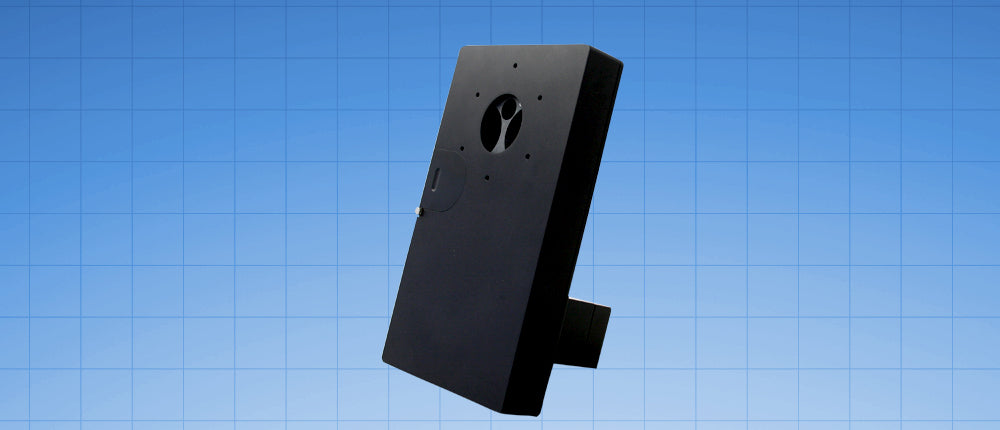

The FW-1000 is a high-speed filter wheel featuring extremely low vibration and ultra fast switching speed. Designed for research-grade microscopes but suitable for many more purposes, it is used to automatically swap optical filters (or any similar sized optics) during imaging.
The FW-1000 can be mounted on just about any microscope. For fluorescence emission control it can be configured with C-mount, F-mount, camera port, or custom connectors as needed. For illumination control it can be outfitted with epi-illumination port adapters for Evident/Olympus, Leica, Nikon, Zeiss, or many other microscopes.

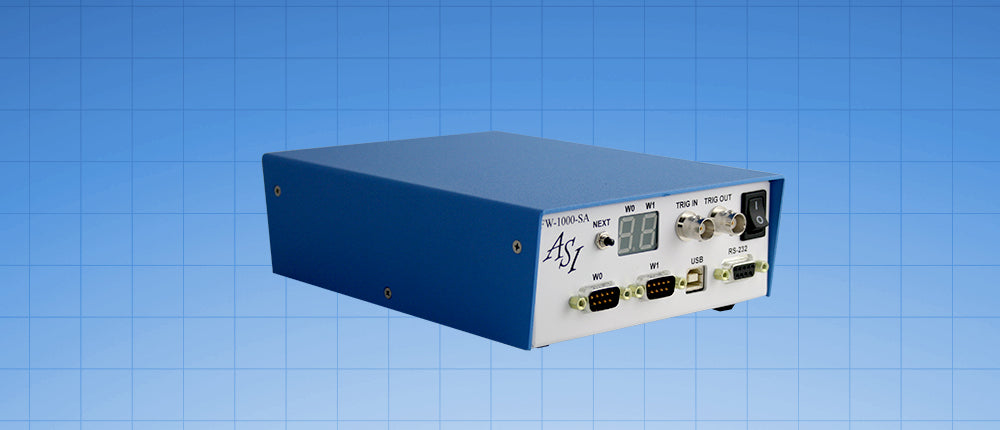

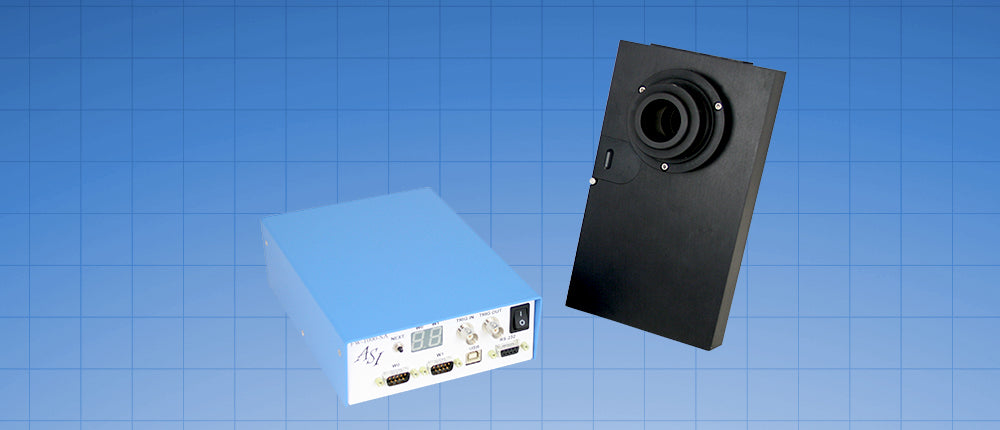

A single FW controller can govern up to two filter wheels, and communicates via USB, RS-232 serial, or TTL triggers and preprogrammed sequences. ASI products are supported by software from most microscope manufacturers, as well as Micro-Manager, Nebula, VisiView, Inscoper, Slidebook, MetaMorph, and more (SDK available).
The FW-1000 is ideal for:
- High speed fluorescence imaging
- Life science microscopy
- Spectral selection
- Intensity control
Specifications:
| Minimum Switching Time | < 40 ms | |
| Maximum Vibration Torque Impulse | < 3 x 10-4 kg·m2/s | |
| Dimensions | Filter Wheel | 203 mm x 118 mm x 29 mm |
| Controller | 58 mm H x 142 mm W x 194 mm L | |
| Filter specifications | Max. Thickness | 5mm |
| Mounting Angle | 4° (standard | |

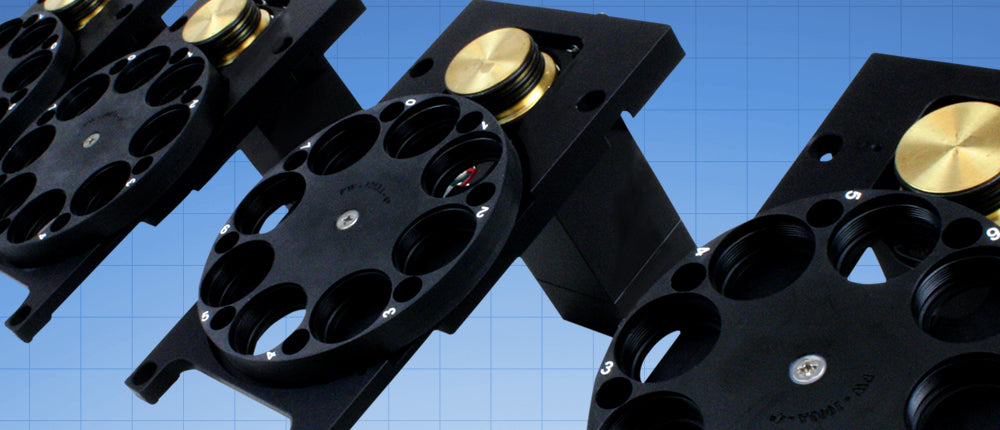

The FW-1000 is available in multiple configurations:
- 8-Position Filter Wheel Disk for 25 mm diameter filters
- 6-Position Filter Wheel Disk for 32 mm diameter filters
- 16-Position Filter Wheel Disk for 25 mm diameter filters
