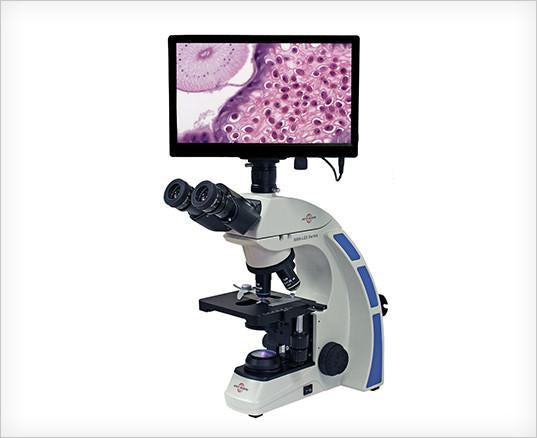

Accu-Scope Excelis HD Lite Microscope Camera w/ 11.6" Screen - AU-300-HDS
- SKU: AU-300-HDS
$980.00
$1,170.00
- HDMI / USB Output Camera
- 11.6" Retina Display Screen
- On-Board Camera Control With Included Mouse HDMI Output
- USB Output To PC For Further Capabilities
- Add To Any Microscope
The Excelis HD Lite AU-300-HDS camera comes with an 11.6" retina display screen attached for a streamlined HD microscope camera solution. The screen allows the user to view and capture images/videos directly to the SD card. The camera accepts a mouse (included) which allows the user to have control of the camera settings, playback, computer, side by side comparison, and much more. Furthermore the camera can output to any screen via HDMI or USB to a computer. Take advantage of the free computer software for advanced image/video capture, annotation, extended depth of focus, stitching and much more. For a larger audience the camera can output via HDMI to a projector or larger screen!
Watch our demo video under the demo video tab to see the camera capabilities with the 11.6 inch HD screen or larger projector/screen!
Features:
- 1080p color camera with live video preview without any lag time or compression
- 6 M.P.
- HDMI & USB 2.0 output for video and images
- Built-in mouse control software for HDMI viewing/recording without a computer
- Simultaneous live image output to an HD monitor to a computer via USB 2.0
- On-board camera software with basic image controls: auto/manual exposure time, 3D noise reduction, 1080p video recording, magnify (ROI), rotate, flip images, side by side comparison, browse images/video playback from SD card (PC & Mac compatible)
- CaptaVision PC imaging software for more advanced image control, annotation & analysis
- Exposure time of 0.001 seconds to 10 seconds, 20 scales of Gain value and incredibly efficient 3D noise reduction for fluorescence applications
- APTINA MT9P031 sensor, dual FPGA processors and unique algorithms produce perfect color reproduction
| Excelis Lite AU-300-HDS Specifications | |
|---|---|
| Screen | Mountable 11.6" retina display screen (hardware included) |
| Resolution (Live): | 1920X1080 - Captured 5 M.P. |
| Sensor: |
1/2.5" (0.5x C-mount recommended); APTINA MT9P031 |
| Frame Rate: |
HDMI (30fps); USB 2.0 (15fps) |
| Image Capture: | High Speed SD Card (4GB) |
| Video Capture: | HDMI: 1080p, 30fps to SD Card USB 2.0: 1080p, 15fps to PC or Mac |
| Exposure Time: | 0.001 sec - 10.0 sec |
| White Balance: | Auto |
| Settings: | Gain, Gamma, Saturation, Contraction |
| Built-in Software: | Cloud 1.0 |
| PC Imaging Software: |
CaptaVision Imaging Software (for PC only; Mac OS not supported) Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function Image Types: JPEG, BMP, TIFF and RAW |
| Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
| System Compatibility: | Windows XP, Vista 7 and 8, and 10 (32 or 64-bit) Mac OS X (for image transfer to Mac OS X only) |
| System Requirements: | Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port |
| Power Supply: | DC12V/1A |
| Warranty: | 1 year |
What's Included in the Box:
- Excelis HD Camera
- 11.6" Retina display monitor with mounting brackets
- HDMI Cable
- HDMI adapter
- Y Power Splitter
- USB 2.0 Cable
- 12V Power Adapter
- 4GB SD Card
- Mouse
- CaptaVision PC Imaging Software
The Excelis HD Lite AU-300-HDS camera comes with an 11.6" retina display screen attached for a streamlined HD microscope camera solution. The screen allows the user to view and capture images/videos directly to the SD card. The camera accepts a mouse (included) which allows the user to have control of the camera settings, playback, computer, side by side comparison, and much more. Furthermore the camera can output to any screen via HDMI or USB to a computer. Take advantage of the free computer software for advanced image/video capture, annotation, extended depth of focus, stitching and much more. For a larger audience the camera can output via HDMI to a projector or larger screen!
Watch our demo video under the demo video tab to see the camera capabilities with the 11.6 inch HD screen or larger projector/screen!
Features:
- 1080p color camera with live video preview without any lag time or compression
- 6 M.P.
- HDMI & USB 2.0 output for video and images
- Built-in mouse control software for HDMI viewing/recording without a computer
- Simultaneous live image output to an HD monitor to a computer via USB 2.0
- On-board camera software with basic image controls: auto/manual exposure time, 3D noise reduction, 1080p video recording, magnify (ROI), rotate, flip images, side by side comparison, browse images/video playback from SD card (PC & Mac compatible)
- CaptaVision PC imaging software for more advanced image control, annotation & analysis
- Exposure time of 0.001 seconds to 10 seconds, 20 scales of Gain value and incredibly efficient 3D noise reduction for fluorescence applications
- APTINA MT9P031 sensor, dual FPGA processors and unique algorithms produce perfect color reproduction
| Excelis Lite AU-300-HDS Specifications | |
|---|---|
| Screen | Mountable 11.6" retina display screen (hardware included) |
| Resolution (Live): | 1920X1080 - Captured 5 M.P. |
| Sensor: |
1/2.5" (0.5x C-mount recommended); APTINA MT9P031 |
| Frame Rate: |
HDMI (30fps); USB 2.0 (15fps) |
| Image Capture: | High Speed SD Card (4GB) |
| Video Capture: | HDMI: 1080p, 30fps to SD Card USB 2.0: 1080p, 15fps to PC or Mac |
| Exposure Time: | 0.001 sec - 10.0 sec |
| White Balance: | Auto |
| Settings: | Gain, Gamma, Saturation, Contraction |
| Built-in Software: | Cloud 1.0 |
| PC Imaging Software: |
CaptaVision Imaging Software (for PC only; Mac OS not supported) Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function Image Types: JPEG, BMP, TIFF and RAW |
| Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
| System Compatibility: | Windows XP, Vista 7 and 8, and 10 (32 or 64-bit) Mac OS X (for image transfer to Mac OS X only) |
| System Requirements: | Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port |
| Power Supply: | DC12V/1A |
| Warranty: | 1 year |
What's Included in the Box:
- Excelis HD Camera
- 11.6" Retina display monitor with mounting brackets
- HDMI Cable
- HDMI adapter
- Y Power Splitter
- USB 2.0 Cable
- 12V Power Adapter
- 4GB SD Card
- Mouse
- CaptaVision PC Imaging Software
