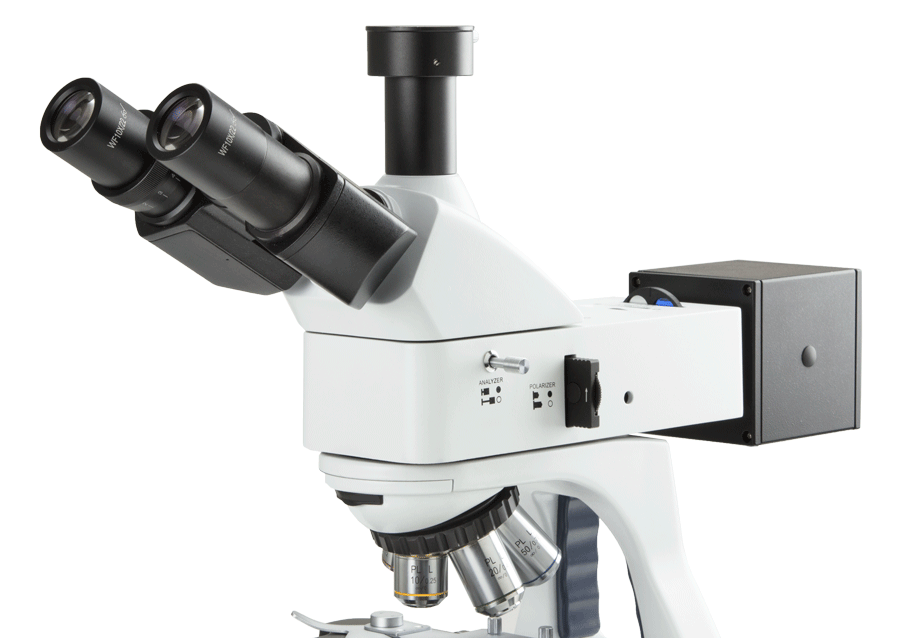

Euromex bScope Upright Metallurgical Microscope
- SKU: BS.1052-PLMi
- Binocular or Trinocular
- Transmitted & Reflected Illumination
- 5x, 10x, 20x, 50x Objectives
- NeoLED Illumination
- Made In Holland 10 Year Warranty
- Order within
The Euromex bScope is designed for observation of materials such as metals, plastics, woods, glass, etc. It provides both transmitted and reflected light illumination. This microscope is available in binocular or trinocular versions and comes with a pair of 10x/22mm eyepieces. The reversed quintuple nosepiece houses the Plan Achromat PLMi 5x, 10x, 20x, and 50x infinity corrected IOS objectives. The NeoLED reflected light illuminator is adjustable and has a push-pull type rotatable polarizer and push-pull analyzer. It has a built in condenser with iris and integrated rotating filter disc with green, blue, yellow, and white filters. The NeoLED transmitted illumination allows for brightness adjustment and low energy consumption. This high quality microscope is made in Holland and comes with a 10 year warranty.
Specifications | |
---|---|
Head: | Binocular OR Trinocular, 30⁰ inclined and rotatable 360⁰ |
Eyepieces: | WF 10x/22 |
Nosepiece: | Reversed, quintuple |
Reflected Light: | 3 Watt NeoLED w/ polarizer and analyzer, iris diaphragm, rotating filter with green, blue, yellow, and white filters |
Objectives: | Plan Achromat Infinity PLMi 5x, 10x, 20x, and 50x |
Stage: | Large XY mechanical stage |
Focusing: | Coarse / fine coaxial |
Illumination: | NeoLED transmitted illumination |
Accessories: | Dust cover, power cord |
Warranty: | 10 Year Mechanical & Electrical |
