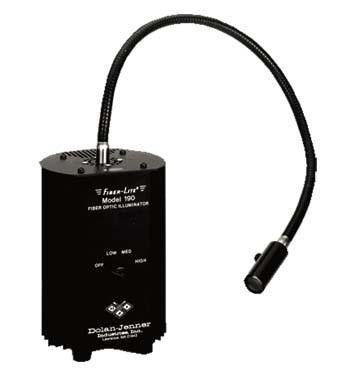

Dolan Jenner Fiber-Lite Model 190 Convection Cooled Single Gooseneck Illuminator - 190-1
- SKU: 190-1
$600.00
The Model 190-1 is a 30 Watt, quarts halogen illumination system capable of delivering over 10,000 foot candles of intense, cold illumination. The light source features a rugged, convention cooled enclosure which results in zero noise, vibration, or air particle generation, important benefits in semiconductor and other microscopy applications. The 4 position, solid state, light intensity switch allows the selection of appropriate light levels and significantly increases lamp life at lower settings. The system includes the BGT1826 Optic light guide and LH759 Focusing Lens. Its rugged enclosure with hard mounting capability makes the Model 190-1 ideal for industrial applications.
Convection Cooled and Rugged Gooseneck System
-
Delivers over 10,000 foot candles of intense, cold illumination
-
Rugged, convection-cooled enclosure
-
4-position switch allows selection of light levels
| Model (115 volt input): | 190-1 |
| Part number: | 002819010001 |
| Fiber input diameter: | 3/8 X 32 THD |
| Configuration: | Single gooseneck system |
| Fiber Optic Model / Part Number: | BGT1826 / 002 |
| Lens Model / Part Number: | LH-759 / 010030020003 |
| Lamp: | EKZ |
| Lamp life: | 200 hours |
| Lamp voltage/wattage: | 10.8V 30 Watt |
| Color temperature: | 3100K |
| Input voltage options: | 115VAC/60HZ |
| Intensity control: | 4 positon, Off/Low/Med/High |
| Cooling: | fanless operation |
| Noise level: | Very low noise, no moving parts |
| Safety certifications 115v: | none |
| Dimensions: | 7.5" H X 5.25" Diameter |
| Weight: | 6.25 lbs. |
The Model 190-1 is a 30 Watt, quarts halogen illumination system capable of delivering over 10,000 foot candles of intense, cold illumination. The light source features a rugged, convention cooled enclosure which results in zero noise, vibration, or air particle generation, important benefits in semiconductor and other microscopy applications. The 4 position, solid state, light intensity switch allows the selection of appropriate light levels and significantly increases lamp life at lower settings. The system includes the BGT1826 Optic light guide and LH759 Focusing Lens. Its rugged enclosure with hard mounting capability makes the Model 190-1 ideal for industrial applications.
Convection Cooled and Rugged Gooseneck System
-
Delivers over 10,000 foot candles of intense, cold illumination
-
Rugged, convection-cooled enclosure
-
4-position switch allows selection of light levels
| Model (115 volt input): | 190-1 |
| Part number: | 002819010001 |
| Fiber input diameter: | 3/8 X 32 THD |
| Configuration: | Single gooseneck system |
| Fiber Optic Model / Part Number: | BGT1826 / 002 |
| Lens Model / Part Number: | LH-759 / 010030020003 |
| Lamp: | EKZ |
| Lamp life: | 200 hours |
| Lamp voltage/wattage: | 10.8V 30 Watt |
| Color temperature: | 3100K |
| Input voltage options: | 115VAC/60HZ |
| Intensity control: | 4 positon, Off/Low/Med/High |
| Cooling: | fanless operation |
| Noise level: | Very low noise, no moving parts |
| Safety certifications 115v: | none |
| Dimensions: | 7.5" H X 5.25" Diameter |
| Weight: | 6.25 lbs. |
