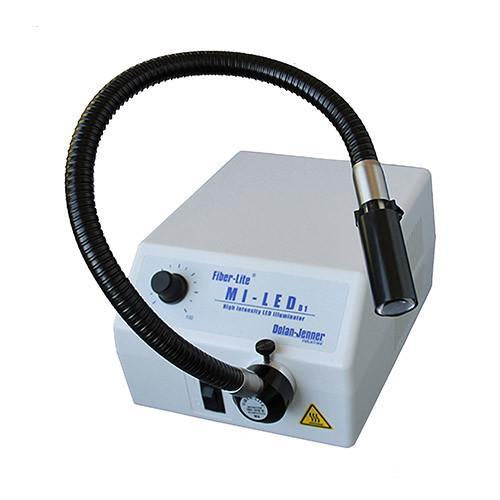

Dolan Jenner Fiber Lite Mi-LED Fiber Optic Single Gooseneck Illuminator - Mi-LED-US-SG

Dolan Jenner


Request Quote
Designed for microscopy and general illumination, this unit is energy efficient and features cool white LED lighting with a color temp of 5000K and higher output than the typical 150 watt halogen fiber optic illuminator. The Mi-LED supports and fully illuminates gooseneck and annular ring light fiber optics. It is also a great option for inspection equipment, forensics, machine vision, industrial borescopes, assembly stations, and OEM custom lighting. The long life LED's of this unit are rated to provide over 40,000 hours of light.
Gooseneck Features:
Self-Supporting Gooseneck  ■ Adjustable Light Postitioning  ■ LH-759 Light-Focusing Lens
Mi-LED Specifications
Light Output: 2000+ Lumens (12.7mm aperture)
Lighting: High Power White LEDs
Input Voltage: 100 - 240 VAC 50/60 Hz
Color Temperature: Typical: 5000 K
LED Life: 40,000 Hours D70
Fiber Optic Interface: 15 mm or (25 mm optional)
Operating Temp: 5 - 40°C - Fan Cooled
Intensity Control: Variable 10 - 100%
Dimensions/Weight: 7.0” W X 4.9” H X 8.8” DP/ 6 lbs
Certifications: ETL, CE, RoHS
