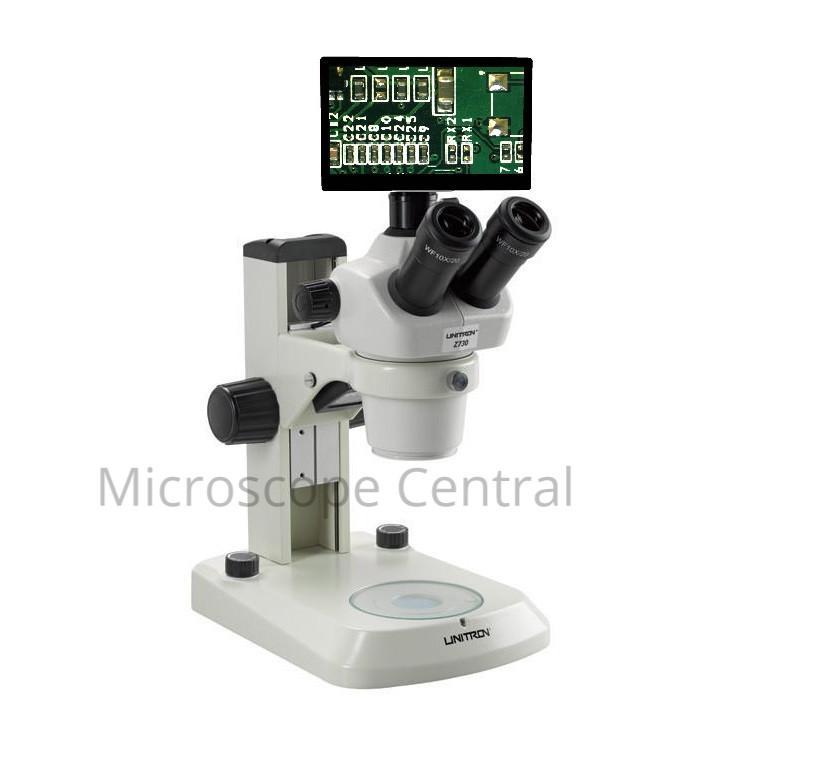

Unitron Z730 E-LED Stand Digital Stereo Microscope 0.7x - 3.0x
Unitron Z730 E-LED Stand Digital Stereo Microscope 0.7x - 3.0x
|
SKU: 13238-300-HD
Couldn't load pickup availability
Description
The Unitron Z730 has a 4.3:1 zoom ratio and is and ideal choice for industrial inspection, assembly, quality control, OEM integration, research and education applicaiotns. Featuring outstanding optics and a large field of view the Z730 has a 0.7x - 3.0x zoom range. This digital package comes complete with your choice of Excelis camera. The Excelis camera line gives you the capability to capture images to your computer or bypass a computer and display a live image on a HD monitor to capture images/videos to the removable SD card.
Select your model of Excelis AU-300-HD (30 FPS) or AU-600-HD (60 FPS) camera. All models are multi-output USB / HDMI cameras and have an optional 11.6" retina display screen that can be mounted to the camera for a streamlined design. (AU-300-HDS or AU-600-HDS).
| Microscope Specifications: | |
|---|---|
| Head: | Trinocular viewing head, inclined 45°, rotatable 360° w/ c-mount adapter |
| Eyepieces: | WF10x/22mm eyepieces w/built in diopter adjustments & eyeguards |
| Magnification: | 0.7x to 3.0x zoom range (7x -30x with 10x eyepieces) |
| Stand: | Variable LED incident and transmitted stand - compact |
| Accessories: | Dust Cover & Manual |
| Warranty: | 5 Year Mechanical |
| AU-300-HD Excelis Lite Specifications | |
|---|---|
| Resolution (Live): | 1920 x 1080 - Captured 5 M.P. |
| Sensor: |
1/2.5" (0.5x C-mount recommended); APTINA MT9P031 |
| Frame Rate: |
HDMI (30fps); USB 2.0 (15fps) |
| Image Capture: | High Speed SD Card (4GB) |
| Video Capture: | HDMI: 1080p, 30fps to SD Card USB 2.0: 1080p, 15fps to PC or Mac |
| Exposure Time: | 0.001 sec - 10.0 sec |
| White Balance: | Auto |
| Settings: | Gain, Gamma, Saturation, Contraction |
| Built-in Software: | Cloud 1.0 |
| PC Imaging Software: |
CaptaVision Imaging Software (for PC only; Mac OS not supported) Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function Image Types: JPEG, BMP, TIFF and RAW |
| Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
| System Compatibility: | Windows XP, Vista 7 and 8, and 10 (32 or 64-bit) Mac OS X (for image transfer to Mac OS X only) |
| System Requirements: | Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port |
| Power Supply: | DC12V/1A |
| Warranty: | 1 year |
| AU-300-HDS Excelis Lite Specifications | |
|---|---|
| Screen: | Mountable 11.6" Retina HD Display (mounting hardware included) |
| Resolution (Live): | 1920 x 1080 - Captured 5 M.P. |
| Sensor: |
1/2.5" (0.5x C-mount recommended); APTINA MT9P031 |
| Frame Rate: |
HDMI (30fps); USB 2.0 (15fps) |
| Image Capture: | High Speed SD Card (4GB) |
| Video Capture: | HDMI: 1080p, 30fps to SD Card USB 2.0: 1080p, 15fps to PC or Mac |
| Exposure Time: | 0.001 sec - 10.0 sec |
| White Balance: | Auto |
| Settings: | Gain, Gamma, Saturation, Contraction |
| Built-in Software: | Cloud 1.0 |
| PC Imaging Software: |
CaptaVision Imaging Software (for PC only; Mac OS not supported) Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function Image Types: JPEG, BMP, TIFF and RAW |
| Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
| System Compatibility: | Windows XP, Vista 7 and 8, and 10 (32 or 64-bit) Mac OS X (for image transfer to Mac OS X only) |
| System Requirements: | Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port |
| Power Supply: | DC12V/1A |
| Warranty: | 1 year |
| AU-600-HD Excelis Camera Specifications | |
|---|---|
| Mega Pixel | 6.0 M.P. |
| Sensor: | SONY IMX236 |
| Sensor Size: | 1/2.7” , 0.5x C-mount recommended |
| Live Resolution: | 1920 x 1080 |
| Frame Rate: | HDMI (60fps); USB 2.0 (30fps) |
| Image Capture: | High Speed SD Card (8GB) |
| Video Capture: | HDMI: 1080p, 60fps to SD Card |
| USB 2.0: 1080p, 30fps to PC or Mac | |
| Exposure Time: | 0.001sec—10.0 sec |
| Settings: | Auto white balance, Gain, Gamma, Saturation, Contraction |
| PC Imaging Software: | CaptaVision Imaging Software (for PC only; Mac OS not supported) Advanced Camera Controls: live/still image measurement and annotation; flat field correction; extended depth of focus (focus stacking); image stitching; fluorescence image settings; fluorescence multi-color channel merge; HDR (High Dynamic Range) function; Image Types: JPEG, BMP, TIFF and RAW |
| Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
| Software Compatibility: | Windows XP, Vista, 7, and 8 (32 or 64 bit) |
| Mac OSX (for image transfer to Mac OSX only) | |
| AU-600-HDS Excelis Camera Specifications | |
|---|---|
| Screen: | Mountable 11.6" Retina HD Display (mounting hardware included) |
| Resolution (Live): | 1920X1080 6 M.P. |
| Sensor: | 1/2.7" (0.5x C-mount recommended); SONY IMX236 |
| Frame Rate: | HDMI (60fps); USB 2.0 (30fps) |
| Image Capture: | High Speed SD Card (8GB) |
| Video Capture: | HDMI: 1080p, 60fps to SD Card USB 2.0: 1080p, 30fps to PC or Mac |
| Exposure Time: | 0.001 sec - 10.0 sec |
| White Balance: | Auto |
| Settings: | Gain, Gamma, Saturation, Contraction |
| Built-in Software: | Cloud 1.0 |
| PC Imaging Software: |
CaptaVision Imaging Software (for PC only; Mac OS not supported) Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; fluorescence image settings; fluorescence multi-color channel merge; HDR (High Dynamic Range) function Image Types: JPEG, BMP, TIFF and RAW |
| Output Modes: | Mode 1: USB 2.0 / Mode 2: HDMI |
| System Compatibility: | Windows XP, Vista 7 and 8 (32 or 64-bit) Mac OS X (for image transfer to Mac OS X only) |
| System Requirements: | Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port |
| Power Supply: | DC12V/1A |
| Warranty: | 1 year |
