Ash Vision Inspex II Digital Microscope System On Illuminated Track Stand

Recently viewed

Ash Vision Inspex II Digital Microscope System On Illuminated Track Stand
Ash Vision Inspex II Digital Microscope System On Illuminated Track Stand
Ash Vision Inspex II Digital Microscope System On Illuminated Track Stand
Ash Vision Inspex II Digital Microscope System On Illuminated Track Stand

Ash Vision Inspex II Digital Microscope System On Illuminated Track Stand

  • SKU: 14790-14835
$7,404.00 $7,794.00
  • 1080p HD Digital Microscope
  • 2.2x - 132x Mag on 24" Monitor
  • Measurement Features, No Computer Needed
  • LED Track Stand
  • 5 Year Mechanical & Electrical Warranty
Request Quote
  • Order within

The Ash Vision Inspex II is an easy to use all-in-one digital microscope system. It has everything you need in a robust, and sleek design. The system is a 1080p digital microscope system that allows you to view a real time image, save images / videos, and take measurements without the need for a PC. This system outputs to a monitor via HDMI cable and has built in software and features. The included external keypad allows you to control many of the systems functions.



Key Features

  • AshCal™ Calibration Tracking continually adjusts and maintains calibration for accurate measurements across the entire zoom range.
  • On-Screen Preset Buttons allow quick access to pre-configured part-specific systems settings.
  • 2-D Line Measurement enables on-screen overlays rapid go/no-go inspection of samples.
  • User access control manages system-related operation to standardize inspection and eliminate operational error.
  • One click Auto Focus provides instant indication that the sample is in focus.

Keypad Features / Controls

  • Enables memory/recall of magnification and image capture parameters
  • 5 preset buttons are easy to program and increase repeatability and speed of inspection processes
  • Controls LED lighting
  • Zoom and auto focus
  • Designed exclusively for the INSPEX II

Specifications

  • 1080p Digital inspection station with 5D lens
  • 200mm working distance (with 5D lens, included)
  • Magnification range: 2.2x - 132x (on 24" monitor)
  • Maximum magnification: 66x optical, 132.2x digital
  • Camera resolution: 1920 x 1080, 60fps

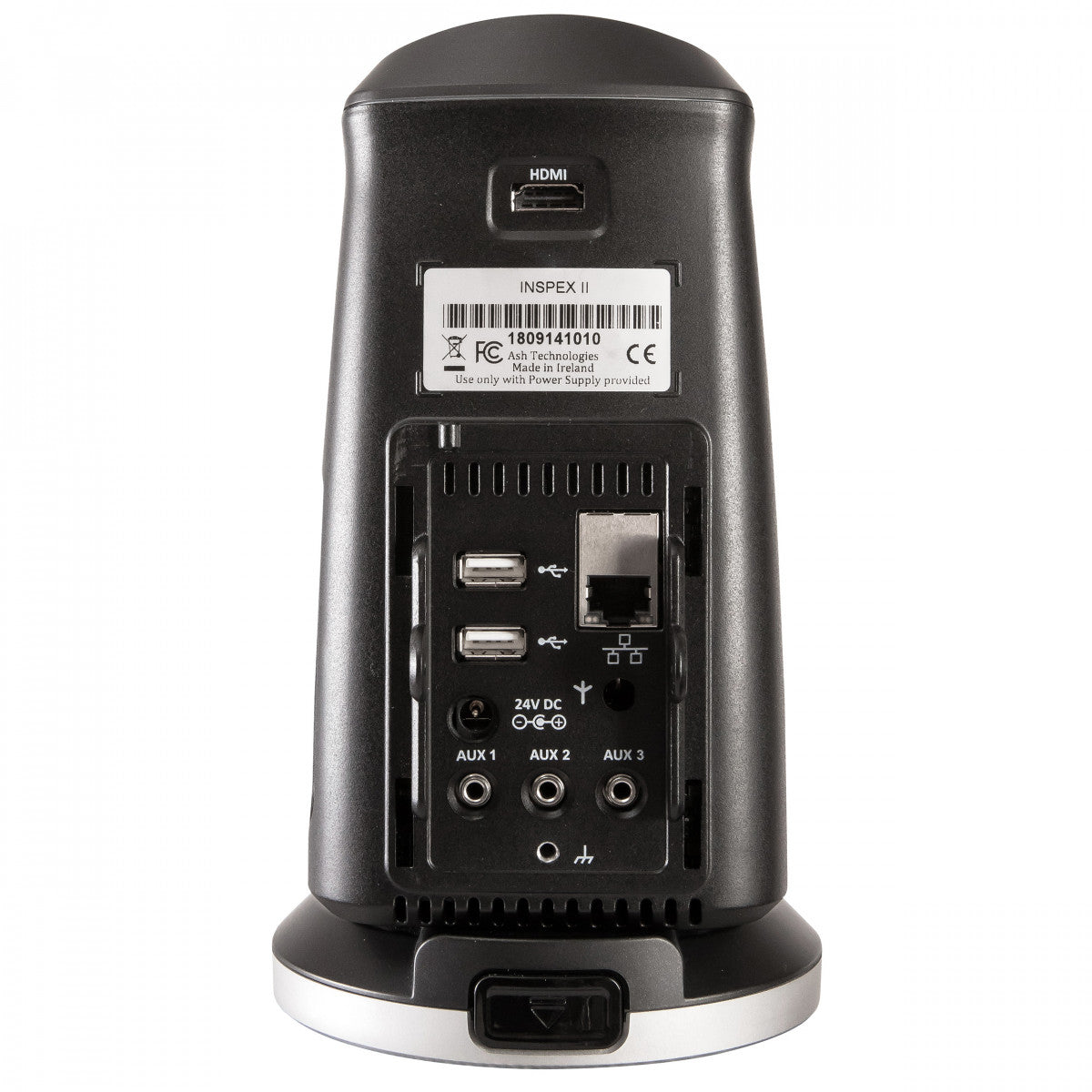

  • HDMI output, four USB 2.0 ports, mini USB, three general purpose I/O ports, DC power jack
  • Internal image storage, removable USB image storage, USB on the go (PC Connectivity)
  • Integrated LED ring light with intensity and quadrant control; LED Lamp life approx. 40,000 hours
  • Wireless keyboard and wireless mouse included
  • HDMI-to-HDMI cable, mini USB cable and USB memory stick included
  • Grounding cable included
  • Optional objectives: +10D, +25D, 2x Plan, 0.3x , 1x Plan, 0.5x Plan APO, 0.5xwd
  • REQUIRES STAND. Stand not included.
  • REQUIRES MONITOR. Monitor not included.
  • Shipping weight 7lbs.
