Ash Vision Inspex II Digital Microscope System On Gliding Arm Boom Stand

The Ash Vision Inspex II is an easy to use all-in-one digital microscope system. It has everything you need in a robust, and sleek design. The system is a 1080p digital microscope system that allows you to view a real time image, save images / videos, and take measurements without the need for a PC. This system outputs to a monitor via HDMI cable and has built in software and features. The included external keypad allows you to control many of the systems functions.

Key Features

• AshCal™ Calibration Tracking continually adjusts and maintains calibration for accurate measurements across the entire zoom range.
• On-Screen Preset Buttons allow quick access to pre-configured part-specific systems settings.
• 2-D Line Measurement enables on-screen overlays rapid go/no-go inspection of samples.
• User access control manages system-related operation to standardize inspection and eliminate operational error.
• One click Auto Focus provides instant indication that the sample is in focus.

Keypad Features / Controls

• Enables memory/recall of magnification and image capture parameters
• 5 preset buttons are easy to program and increase repeatability and speed of inspection processes
• Controls LED lighting
• Zoom and auto focus
• Designed exclusively for the INSPEX II

Specifications

• 1080p Digital inspection station with 5D lens
• 200mm working distance (with 5D lens, included)
• Magnification range: 2.2x - 132x (on 24" monitor)
• Maximum magnification: 66x optical, 132.2x digital
• Camera resolution: 1920 x 1080, 60fps

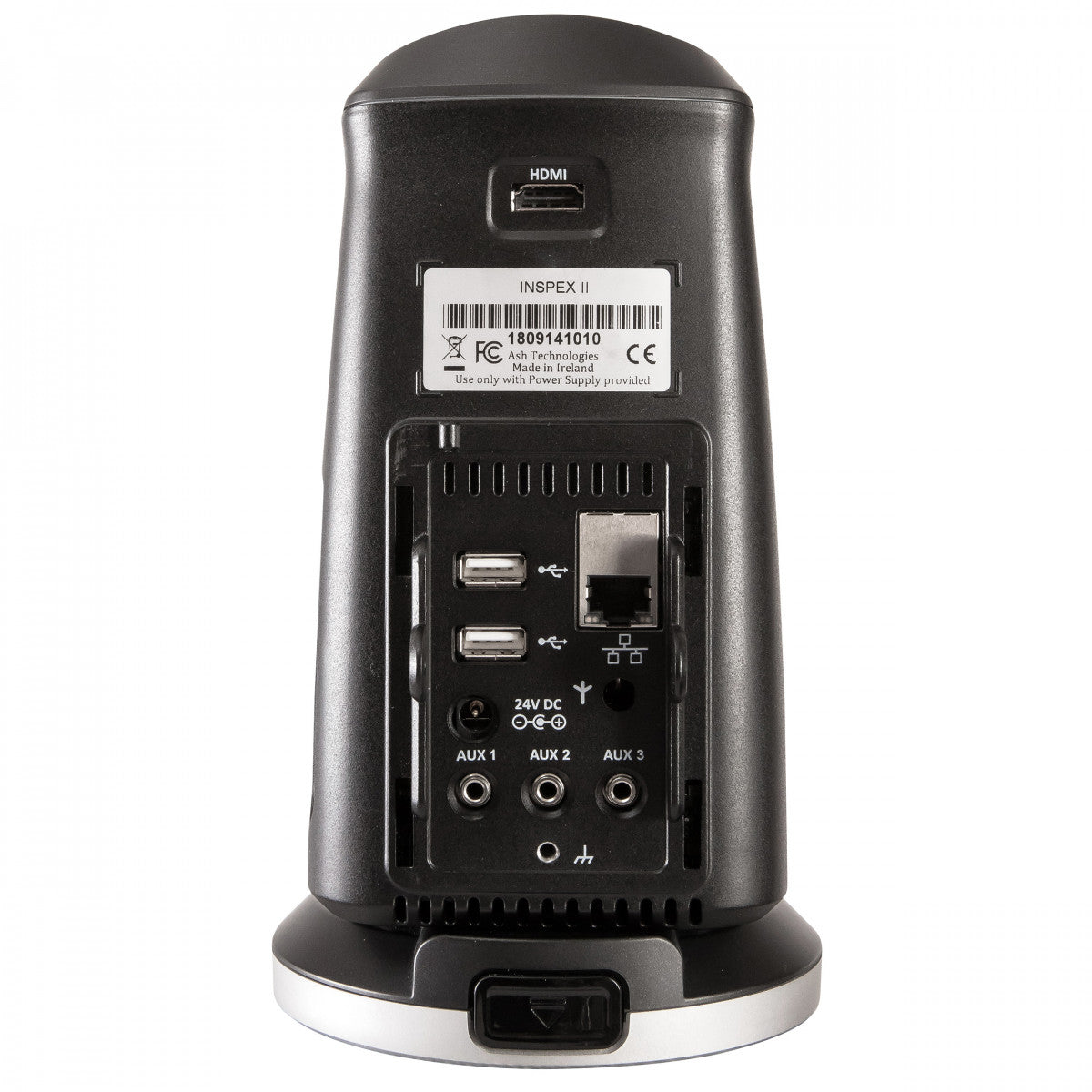

• HDMI output, four USB 2.0 ports, mini USB, three general purpose I/O ports, DC power jack
• Internal image storage, removable USB image storage, USB on the go (PC Connectivity)
• Integrated LED ring light with intensity and quadrant control; LED Lamp life approx. 40,000 hours
• Wireless keyboard and wireless mouse included
• HDMI-to-HDMI cable, mini USB cable and USB memory stick included
• Grounding cable included
• Optional objectives: +10D, +25D, 2x Plan, 0.3x , 1x Plan, 0.5x Plan APO, 0.5xwd
• REQUIRES STAND. Stand not included.
• REQUIRES MONITOR. Monitor not included.
• Shipping weight 7lbs.
