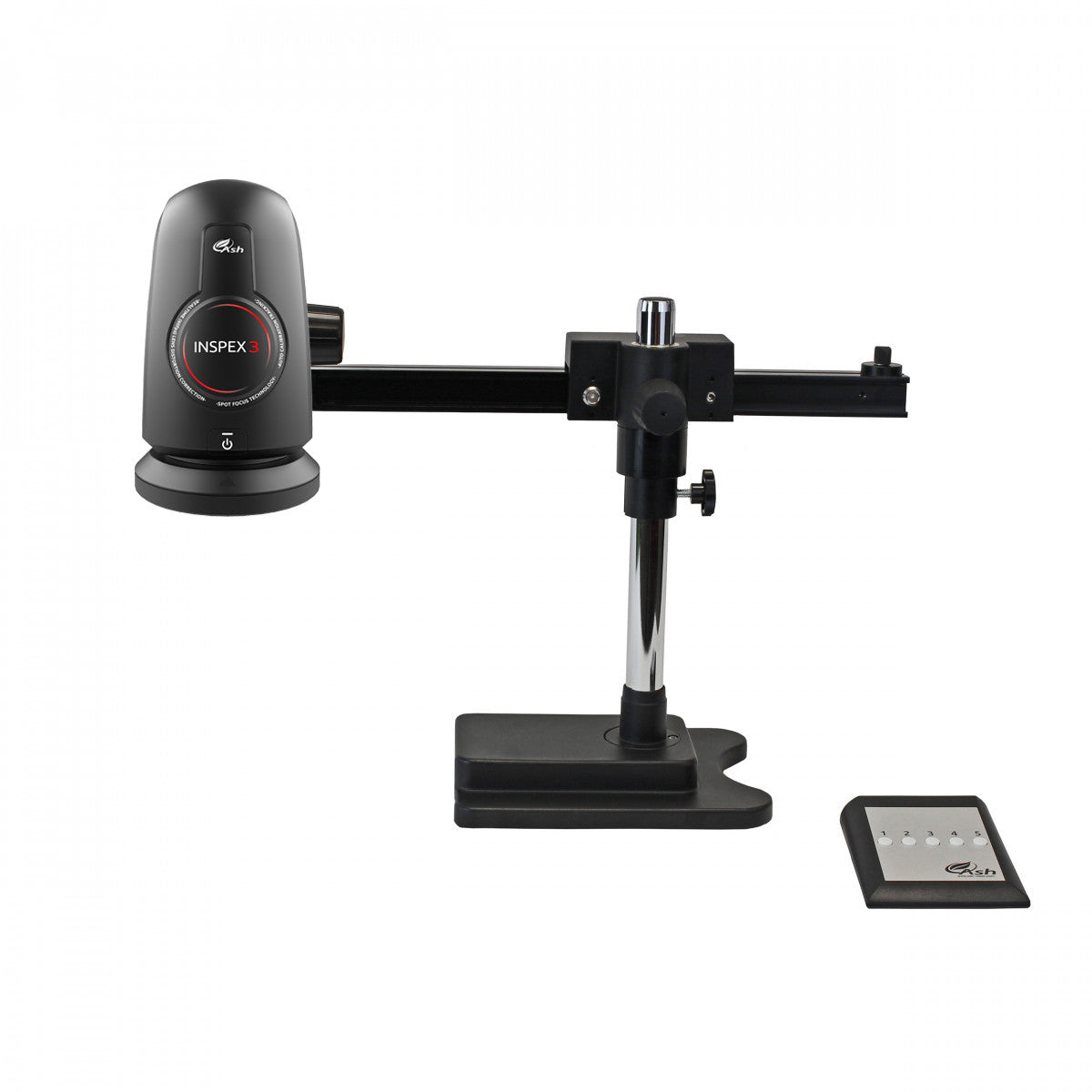

Ash Vision Inspex 3 Digital Microscope System On Gliding Arm Boom Stand

Recently viewed

Ash Vision Inspex 3 Digital Microscope System On Gliding Arm Boom Stand

Ash Vision Inspex 3 Digital Microscope System On Gliding Arm Boom Stand

  • SKU: 14793-GS
$8,597.00
  • 1080p HD Digital Microscope
  • 2.1x - 131.6 Mag on 24" Monitor
  • Measurement Features, No Computer Needed
  • Gliding Arm Boom Stand
  • 5 Year Mechanical Warranty
Request Quote

The Inspex 3 Smart Inspection digital microscope is everything you need in a robust, dependable inspection instrument: easy to use, measurement tools, real-time video, preset configurations, pre-calibrated, and so much more!

Here we offer the Inspex 3 as a complete kit featuring the Inspex 3, a gliding arm boom stand, and a keypad at no additional cost!



Key Features

  • AshCal™ Calibration Tracking continually adjusts and maintains calibration for accurate measurements across the entire zoom range.
  • On-Screen Preset Buttons allow quick access to pre-configured part-specific systems settings.
  • 2-D Line Measurement enables on-screen overlays rapid go/no-go inspection of samples.
  • User access control manages system-related operation to standardize inspection and eliminate operational error.
  • One click Auto Focus provides instant indication that the sample is in focus.

Specifications

  • 1080p Digital inspection station with 5D lens
  • 195mm working distance (with 5D lens, included)
  • Magnification range: 2.1x - 131.6x (on 24" monitor)
  • Maximum magnification: 65.6x optical, 131.6x digital
  • Camera resolution: 1920 x 1080, 60fps
  • HDMI output, four USB 2.0 ports, mini USB, three general purpose I/O ports, DC power jack
  • Internal image storage, removable USB image storage, USB on the go (PC Connectivity)
  • Integrated LED ring light with intensity and quadrant control; LED Lamp life approx. 40,000 hours
  • Wireless keyboard and wireless mouse included
  • HDMI-to-HDMI cable, mini USB cable and USB memory stick included
  • Grounding cable included
  • Optional objectives: +10D, +25D, 1x Plan (5D)
  • Gliding arm boom stand included.
  • Keypad included.
  • REQUIRES MONITOR. Monitor not included.
  • Shipping weight 40lbs.
