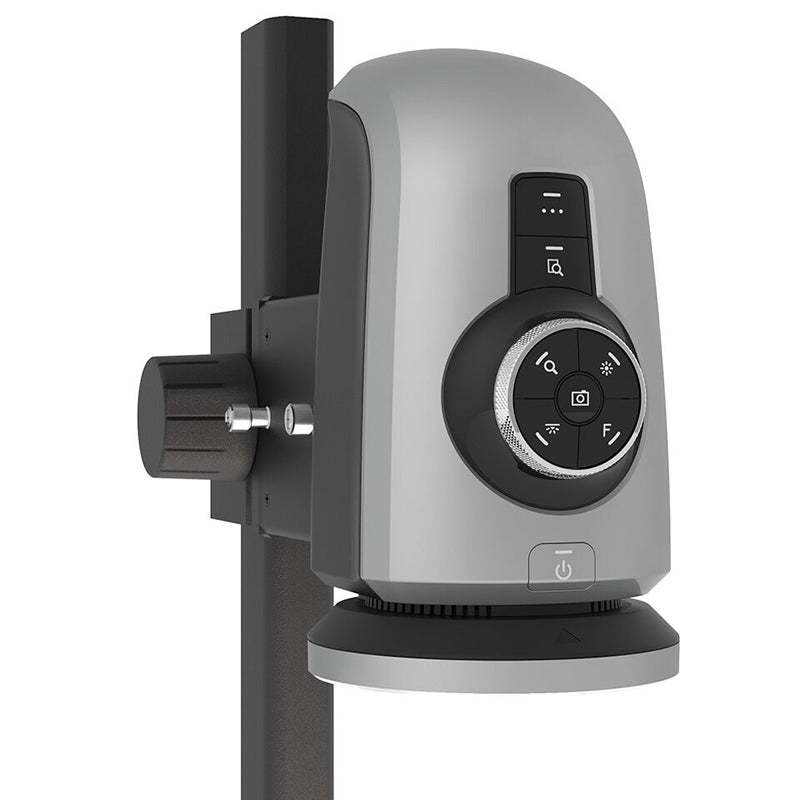

Ash OMNI Core Digital Microscope Measuring System on Boom Stand

Recently viewed

Ash OMNI Core Digital Microscope Measuring System on Boom Stand
Ash OMNI Core Digital Microscope Measuring System on Boom Stand
Ash OMNI Core Digital Microscope Measuring System on Boom Stand

Ash OMNI Core Digital Microscope Measuring System on Boom Stand

  • SKU: 14860-CORE-BBB
$0.00
Request Quote
  • Order within

The Ash Vision OMNI Core digital microscope measurement system delivers fully HD live video for quality control, rework, assembly, inspection, and more. The easy to use, sleek interface is intuitive and efficient to operate. This system outputs HDMI to a monitor and is fully controlled without the need for a PC.



Key Features

  • Operate the OMNI Core directly from a monitor with a mouse, or use the controls on the front of the unit.
  • The OMNI Core is precalibrated at the factory, and calibration tracks across all zoom levels.
  • Save files to internal or removable memory, or to a network location or by email via ethernet.
  • Lens distortion correction delivers a "flat" image at low magnification.
  • User priviledges increases efficiency and reduces operational error.
  • Start with the Core, then add apps as you need them: 2D measurement, Annotation and Graticules; Automatic Measurement; DXF File Importer; Image  Comparator Overlay; Side by Side Image Comparator; Image Stacking

Specifications

  • 1080p Digital inspection station with 5D lens system.
  • Magnification range 2.5x - 122x (on 24" monitor).
  • Camera resolution - 1080p, 1980 x 1080, 60fps.
  • 170mm working distance (with 5D lens, included).
  • DVI and HDMI output, four USB 2.0 ports, RJ45 Ethernet connector for networking, three general purpose I/O ports, DC 24v power jack.
  • Internal image storage, removable USB image storage, USB on the go (PC Connectivity).
  • Integrated LED ring light with intensity control; LED Lamp life approx. 40,000 hours.
  • Wireless keyboard and wireless mouse included.
  • HDMI-to-HDMI cable, mini USB cable and USB memory stick included.
  • Grounding cable included.
  • REQUIRES STAND. Stand not included.
  • REQUIRES MONITOR. Monitor not included.
  • Shipping weight 7lbs.
