AmScope Turret Phase Contrast Doctor Veterinary Compound Microscope

Recently viewed

AmScope Turret Phase Contrast Doctor Veterinary Compound Microscope
AmScope Turret Phase Contrast Doctor Veterinary Compound Microscope

AmScope Turret Phase Contrast Doctor Veterinary Compound Microscope

  • SKU: B390A-PCT
$1,107.99 $2,215.99
Request Quote

This is a professional binocular microscope that offers brightfield and phase contrast features. It comes with a sliding binocular head, rack and pinion adjustment abbe condenser with iris diaphragm, double layer mechanical stage, and a complete turret phase contrast kit. This microscope is designed for teaching demonstration, clinical examination and research purpose. It offers eight levels of magnification: 40X, 64X, 100X, 160X, 400X, 640X, 1000X and 1600X. The phase contrast kit includes a phase contrast condenser, CT lens and a set of phase contrast 10X, 20X, 40X and 100X PLAN objectives, offering eight levels of phase contrast magnifications: 100X, 160X, 200X, 320X, 400X, 640X, 1000X and 1600X. This microscope is a perfect instrument for vets, college students, and those in clinic offices and biological labs.

Features:

  • Brightfield and turret phase contrast microscopy system for vets, labs, clinics, universities, and high schools
  • Complete turret phase contrast kit included
  • High quality professional optical glass elements
  • 45 degree inclined 360 degree swiveling binocular head
  • Eight (8) levels of magnification: 40X-64X-100X-160X-400X-640X-1000X-1600X
  • Eight (8) phase contrast magnification settings: 100X-160X-200X-320X-400X-640X-1000X-1600X
  • Four (4) achromatic objectives DIN 4X, 10X, 40X(S), 100X(S,Oil)
  • Two (2) pairs of eyepieces: WF10X and P16X
  • Large size 3-D double layer mechanical stage with stain resistant finish
  • Low position coaxial stage movement controls
  • Coaxial coarse fine focusing with CA knob tension control
  • Sliding interpupillary distance adjustment
  • Ocular diopter adjustable on both eyetubes
  • Variable intensity halogen illumination
  • High resolution images over a wide field of view
  • Metal framework
  • Coaxial coarse and fine focus adjustment
  • Dual focusing knobs (on both sides)
  • Stage upward moving lock protects objectives and slides
  • Large stain-resistant double layer mechanical stage
  • NA1.25 Abbe Condenser with iris diaphragm filters
  • Rack and pinion adjustment condenser
  • Product GS and CE approved
  • Spare Bulb, Fuse, and Immersion Oil Included
  • Manufactured under ISO 9001 Quality Control Standards
  • Excellent Five (5) Year Factory Warranty
  • Satisfaction Guaranteed or Money Back!
  •

    Specifications:

  • Phase Contrast: Turret
  • Head: 45 degree inclined 360 degree swiveling binocular
  • Nosepiece: revolving quadruple
  • Eyepieces: wide field WF10X and P16X
  • Objective: Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)
  • Total Magnification: 40X-64X-100X-160X-400X-640X-1000X-1600X
  • Phase Contrast Plan Objectives: Plan PH10X(0.25), PH 20X(0.40), PH40X(0.65) and PH100X(1.25, oil)
  • Total Phase Contrast Magnification: 100X-160X-200X-320X-400X-640X-1000X-1600X
  • Transmitted (lower) Illuminator: 6V/20W Halogen
  • Stage: mechanical double layer size: 5-1/2" x 5-1/2" (140mm x 140mm)
  • Stage X-Y Stroke (travel range): 3" x 2" (75mm x 50mm)
  • Focus Adjustment: coaxial coarse fine knobs on both sides
  • Focusing knob can be locked for observation transportation
  • Condenser diaphragm: NA1.25 Abbe condenser with iris diaphragm
  • Power supply: 110V/220V built-in auto-switching power adapter
  • Dimension: 11" x7-1/2" x 15-3/4" (28cm x 19cm x 40cm)
  • Net Weight: 10 lbs (4.5kg)
  • Package Weight 20 lbs
  •

    Packing List:

  • One Binocular Microscope with 4 DIN Objectives
  • One Pair of Widefield 10X Eyepieces
  • One Pair of P16X Eyepieces

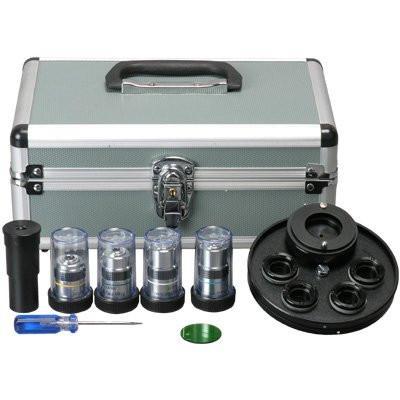

  • One Complete Turret Phase Contrast Kit
  • One Bottle of Immersion Oil
  • One Power Cord (US and Canada standard)
  • One Mirror for Power Outage
  • One Dust Cover
  • Two Color Filters
  • One Spare Halogen Bulb (6V/20W)
  • One Spare Fuse
  •

    AmScope B390A-PCT Microscope
