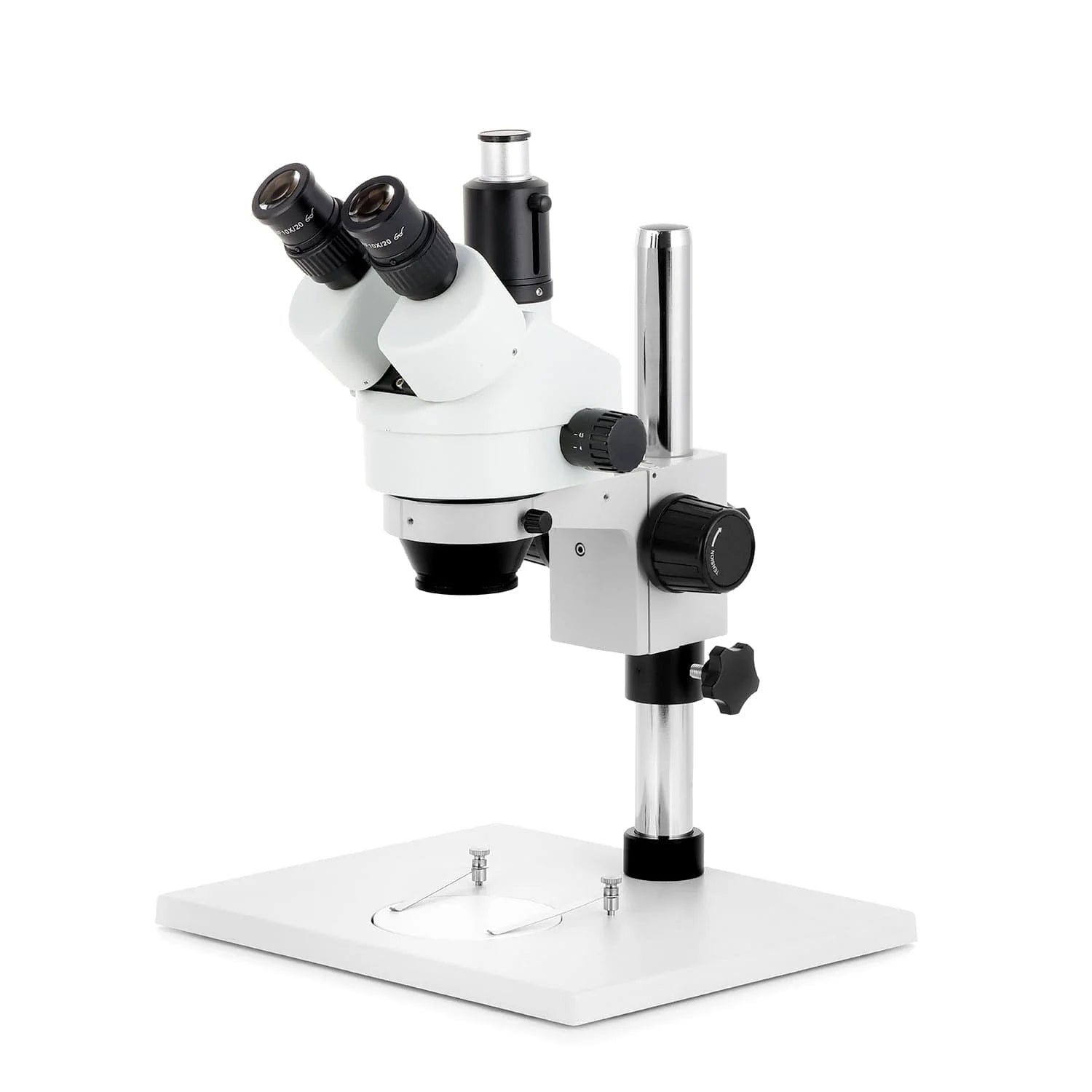

AmScope SM-1 Series Zoom Trinocular Stereo Microscope 3.5X-45X Magnification on Pillar Stand w/Extra Large Base Plate

This is a trinocular stereo zoom microscope with a pillar-stand with extra-large base. It incorporates all the most excellent features of a high quality laboratory instrument. Designed to meet the demands of modern microscopy applications, this scope exceeds all expectations. It comes with SUPER widefield optics and super large stand. This microscope offers high resolution and good depth within a broad field of view. It provides crystal clear sharp stereo images with a 4" (100mm) native working distance. Its 45 degree inclined ocular tubes ensure an easy observation and rubber eyeguards provide further comfort.

The stereo optics provide clear, sharp images with excellent focus-depth and a large working-distance. With 0.7X-4.5X zoom objectives, moving through the magnification range is as easy as turning a knob. 10X wide-field eyepieces provide an ample magnification range from 7X to 45X, with high-eyepoint optics to accommodate glasses or goggles. A 0.5X Barlow lens is included, which can be mounted to the objective housing to halve the magnification range to 3.5X-22.5X. This also increases the working distance. The combined magnification ranges provide 3.5X-45X.

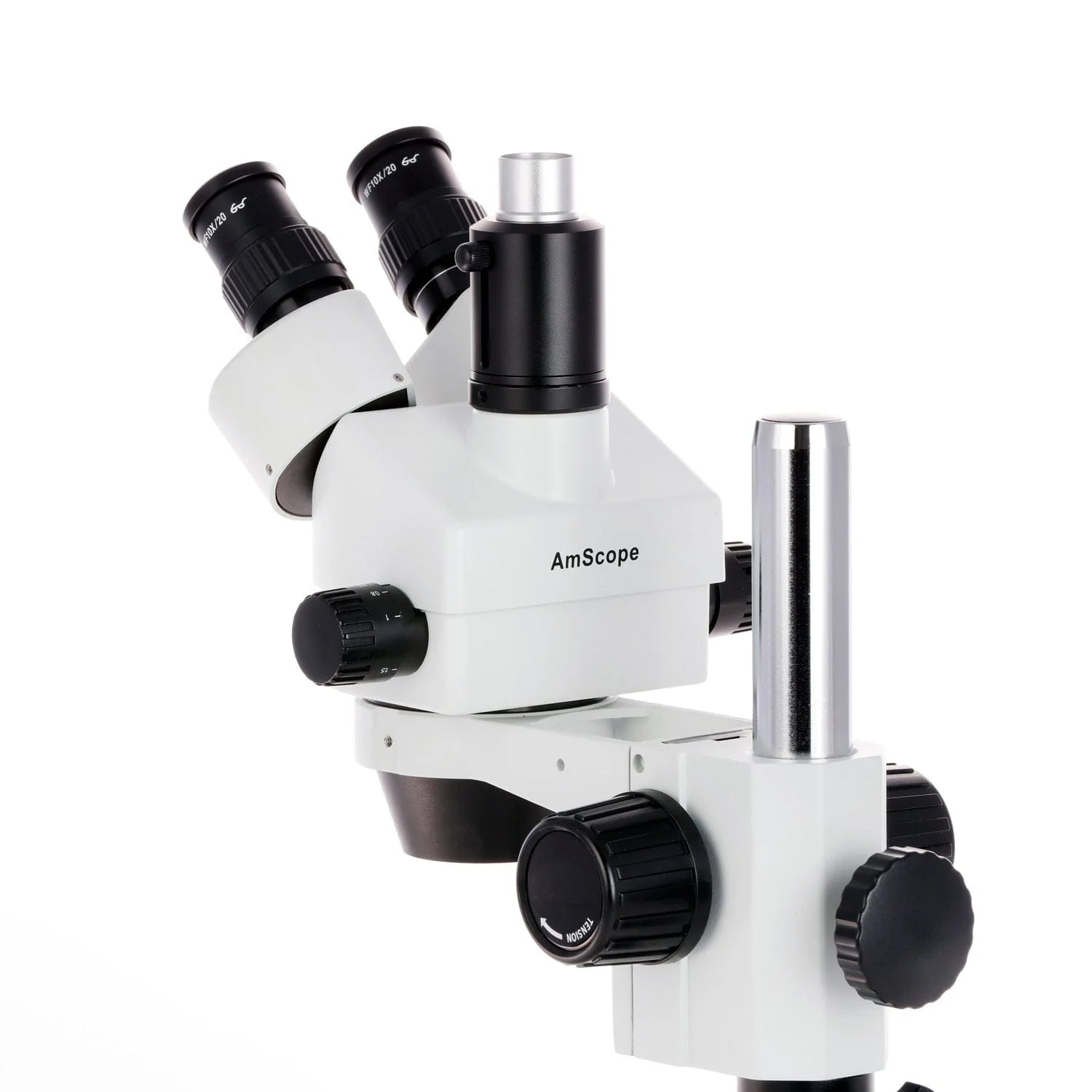

The microscope also features a switched trinocular photo port for attaching an imaging device without the need to replace one of the eyepieces. The photo port is especially useful for attaching a video-capable camera for a live video stream that can be projected on a television or monitor. Our unmatched lineup of cameras offers endless possibilities, including computer-based imaging and measurements, time-lapse capture, and wi-fi or LAN networking.

This microscope is useful for many applications. It can be used in gemology, geology, forestry, archaeology, agriculture and biology. It is appropriate for educational purposes in hospitals and schools. It is great for the exploration of the world of surface details and fine structures of various materials like wood, metal, solder, semiconductor and gemstone. It is perfect for the examination of insects, plants, rocks, stamps, coins, jewel, soldered points, microelectronic components, circuit boards or virtually any three dimensional objects. This scope is an ideal tool for research labs, gemologists, collectors, engravers, watchmakers, jewelers, dies-makers, philatelists, and anyone in semiconductor or electronic industry.

Features :

• 0.7X-4.5X Continuous Zoom Objective Lenses
• 30mm Super Widefield Oculars
• 4" (100mm) Large Native Working Distance
• 45 Degree Inclined Ocular Tubes
• Crystal Clear Original True Color Images
• Erect Sharp Stereo Images over a Super Widefield of View
• High Resolution with Great Flatness and Contrast
• Accurate Alignment Ensuring Fatigue-Free Comfortable Observation
• Both Ocular Tubes with Adjustable Diopters
• Adjustable Interpupillary Distance
• Full Optical Glass Elements
• Precise Ground Glass Lenses
• All Metal Mechanical Components
• Trinocular Port for Adding Photo / Video Capability
• Metal Pillar Stand Finished with Stain Resistant Enamel

Packing List:

• One trinocular stereo microscope head
• One photo port
• 10X eyepiece(s)
• One 0.5X Barlow lens
• One pair eye-guards
• One stand base
• One stand pillar
• One focusing block
• One pair stage clips
• One black/white stage plate
• One hex wrench
• Screws and washers
