AmScope Phase Contrast Doctor Veterinary Compound Microscope

AmScope Phase Contrast Doctor Veterinary Compound Microscope

This is a professional binocular microscope that offers brightfield and phase contrast features. The AmScope compound microscope comes with a sliding binocular head, rack and...

$685.02
Request Quote
Add to wishlist

This is a professional binocular microscope that offers brightfield and phase contrast features. The AmScope compound microscope comes with a sliding binocular head, rack and pinion adjustment abbe condenser with iris diaphragm, double layer mechanical stage, and a complete phase contrast kit.

This phase contrast microscope is designed for teaching demonstration, clinical examination and research purpose. It offers eight levels of magnification: 40X, 64X, 100X, 160X, 400X, 640X, 1000X and 1600X. The phase contrast kit includes a phase contrast condenser, CT lens and a set of phase contrast 10X, 40X and 100X PLAN objectives, offering six levels of phase contrast magnifications: 100X, 160X, 400X, 640X, 1000X and 1600X.

This AmScope compound microscope is a perfect instrument for vets, college students, and those in clinic offices and biological labs.

Features:

  • Brightfield and phase contrast microscopy system for vets, labs, clinics, universities, and high schools
  • Complete phase contrast kit included
  • High quality professional optical glass elements
  • 45 degree inclined 360 degree swiveling binocular head
  • Eight (8) levels of magnification: 40X-64X-100X-160X-400X-640X-1000X-1600X
  • Six phase contrast magnification settings: 100X-160X-400X-640X-1000X-1600X
  • Two (2) pairs of eyepieces: WF10X and P16X
  • Large size 3-D double layer mechanical stage with stain resistant finish
  • Low position coaxial stage movement controls
  • Coaxial coarse fine focusing with CA knob tension control
  • Sliding interpupillary distance adjustment
  • Ocular diopter adjustable on both eyetubes
  • Variable intensity halogen illumination
  • High resolution images over a wide field of view
  • Coaxial coarse and fine focus adjustment
  • Dual focusing knobs (on both sides)
  • Stage upward moving lock protects objectives and slides
  • Large stain-resistant double layer mechanical stage
  • NA1.25 Abbe Condenser with iris diaphragm filters
  • Rack and pinion adjustment condenser
  • Product GS and CE approved
  • Spare Bulb, Fuse, and Immersion Oil Included
  • Manufactured under ISO 9001 Quality Control Standards
  • Excellent Five (5) Year Factory Warranty
  •

    Specifications:

  • Phase Contrast: Simple
  • Head: 45 degree inclined 360 degree swiveling binocular
  • Nosepiece: revolving quadruple
  • Eyepieces: wide field WF10X and P16X
  • Objective: Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)
  • Total Magnification: 40X-64X-100X-160X-400X-640X-1000X-1600X
  • Phase Contrast Plan Objectives: Plan PH10x(0.25), PH40x(0.65) and PH100x(1.25, oil)
  • Total Phase Contrast Magnification: 100X-160X-400X-640X-1000X-1600X
  • Transmitted (lower) Illuminator: 6V/20W Halogen
  • Stage: mechanical double layer size: 5-1/2" x 5-1/2" (140mm x 140mm)
  • Stage X-Y Stroke (travel range): 3" x 2" (75mm x 50mm)
  • Focus Adjustment: coaxial coarse fine knobs on both sides
  • Focusing knob can be locked for observation transportation
  • Condenser diaphragm: NA1.25 Abbe condenser with iris diaphragm
  • Power supply: 110V/220V built-in auto-switching power adapter
  • Dimension: 11" x7-1/2" x 15-3/4" (28cm x 19cm x 40cm)
  • Net Weight: 10 lbs (4.5kg)
  • Package Weight 20 lbs
  •

    Packing List:

  • One Binocular Microscope with 4 DIN Objectives
  • One Pair of Widefield 10X Eyepieces
  • One Pair of P16X Eyepieces

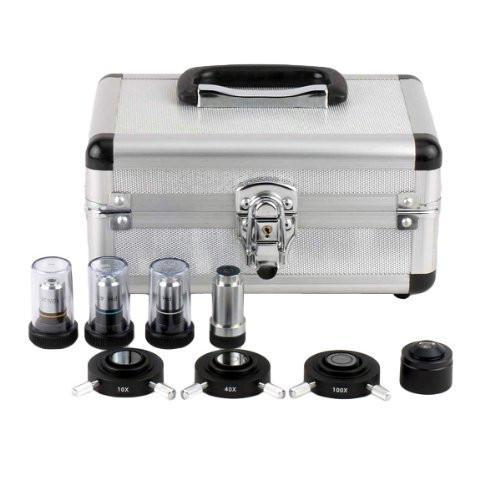

  • One Complete Phase Contrast Kit
  • One Bottle of Immersion Oil
  • One Power Cord (US and Canada standard)
  • One Mirror for Power Outage
  • One Dust Cover
  • Two Color Filters
  • One Spare Halogen Bulb (6V/20W)
  • One Spare Fuse
  • AmScope B390A-PCS Microscope
