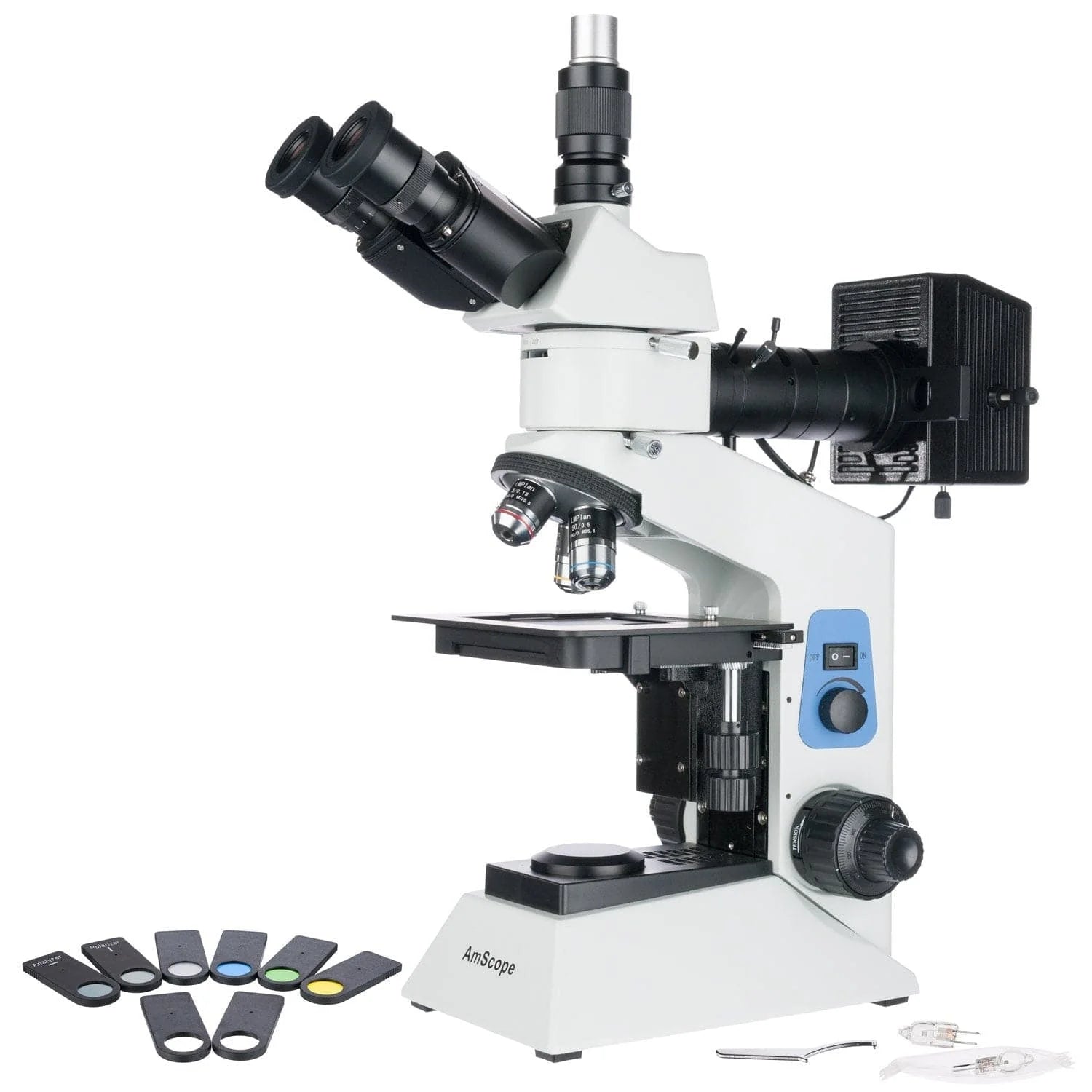

AmScope ME580 Metallurgical Upright Trinocular Microscope 50X-500X Magnification with Polarized Light

This is a feature-packed, economical metallurgical microscope with an upright design, and 30W polarized-light episcopic illumination. The plan-achromatic optical system offers sharp, flat-field images with excellent color-correction across three magnification levels: 50X, 100X, 500X. The Siedentopf head with dual diopters and high-eyepoint eyepieces provide a comfortable and adjustable viewing platform. The dedicated photo port allows for simultaneous viewing and imaging.

Change magnifications quickly using the objective turret without significant refocusing thanks to the parfocal design. Using the included 10X eyepieces, the magnification range spans from 50X to 500X with three unique settings. The lenses are achromatically corrected for improved resolution, and flat-field corrected to ensure edge-to-edge sharpness.

Features:

• An advanced metallurgical microscopy system with reflected illumination
• Polarized lighting for structural analysis
• Includes a range of filters for lighting manipulation
• 5X, 10X, and 50X long-working-distance metallurgy objectives
• Co-axial coarse & fine focusing system
• 30 degree inclined 360 degree rotatable trinocular head
• Coaxial coarse and fine focusing
• Dual focusing control knobs
• Focusing tension control mechanism
• Adjustable interpupillary distance
• Adjustable diopters on both eye tubes
• Solid metal frame construction with stain resistant enamel finish

Packing List:

• One microscope with trinocular Siedentopf head
• Three LM Plan achromatic objectives (5X, 10X, 50X)
• One pair 10X eyepieces
• One Halogen episcopic illuminator module
• One 6V 30W G4 halogen bulb
• Six filters (polarizer, analyzer, green, blue, yellow, diffuser)
• One AC cord
• One dust cover
• One tension wrench
