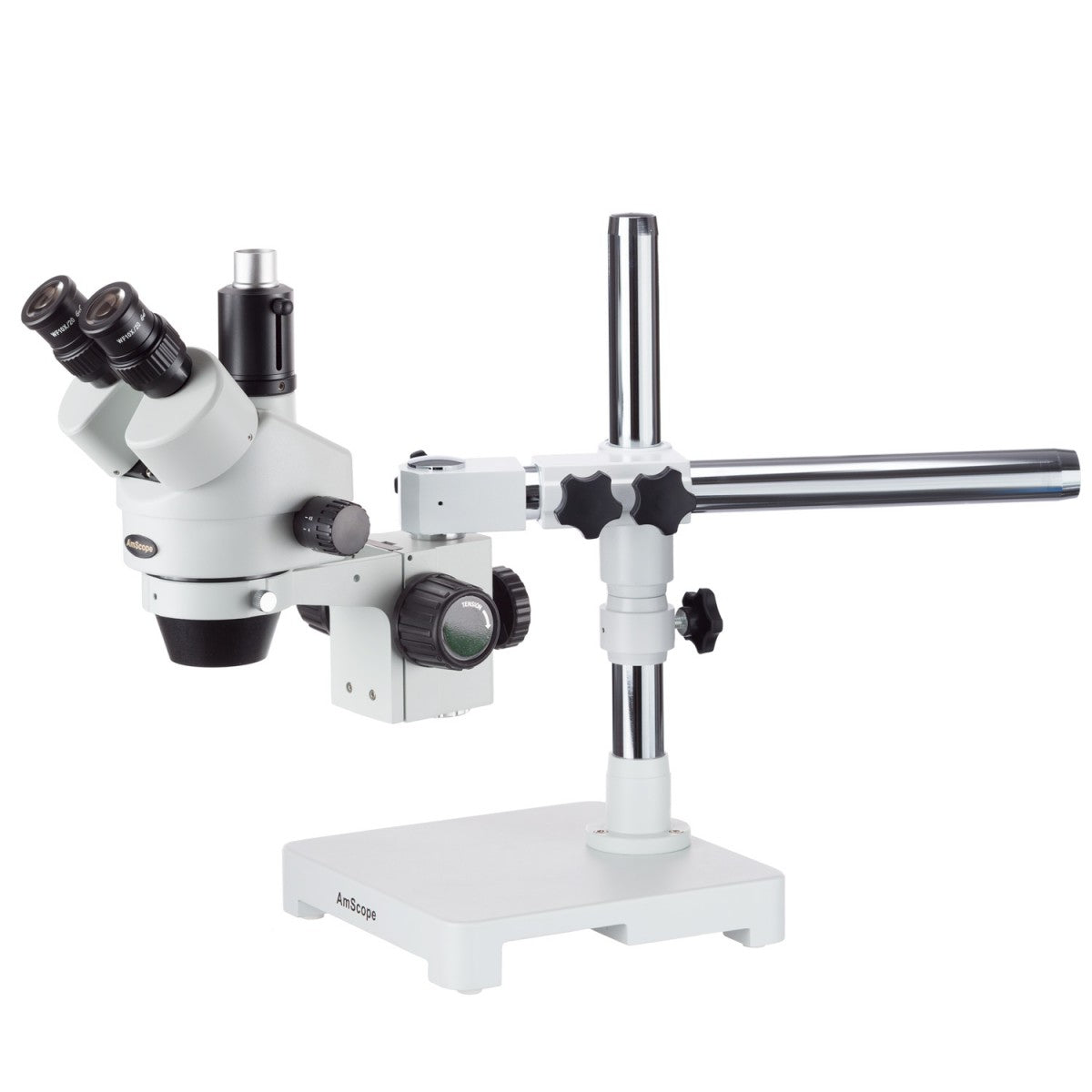

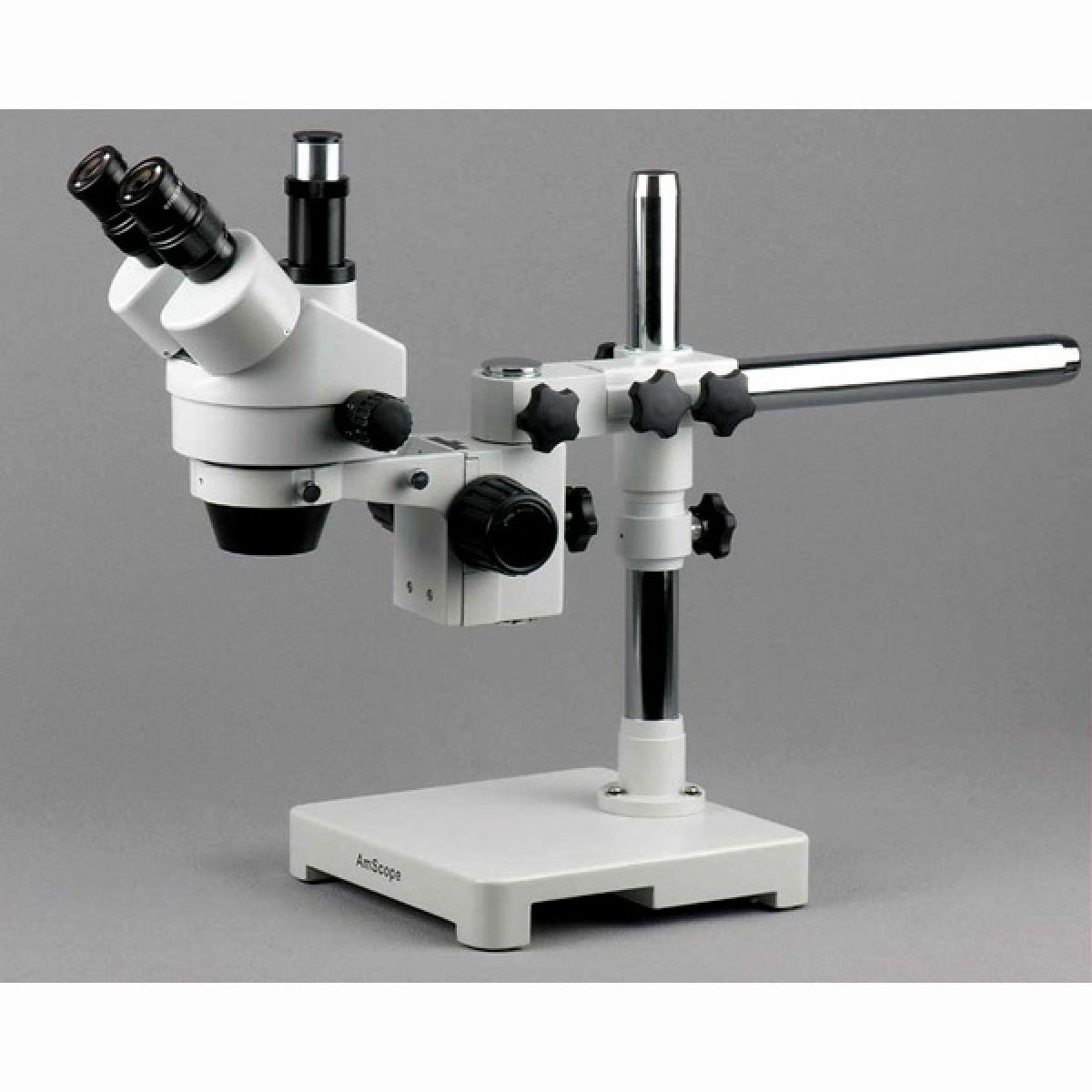

AmScope 7X-45X Trinocular Stereo Zoom Microscope on Single Arm Boom Stand

AmScope 7X-45X Trinocular Stereo Zoom Microscope on Single Arm Boom Stand

This trinocular 7X-45X zoom stereo microscope on a single-arm boom stand gives crystal clear sharp images. It comes with a trinocular head with super widefield...

$368.99
Request Quote
Add to wishlist

This trinocular 7X-45X zoom stereo microscope on a single-arm boom stand gives crystal clear sharp images. It comes with a trinocular head with super widefield optics and a sturdy single-arm boom stand. The trinocular port enables to add photographic or video capability to the microscope. Its 45 degree inclined trinocular oculars and high-eyepoint optical design ensures a comfortable observation for all kinds of users including eyeglass wearers. The single-arm boom stand allows to turn the microscope head around two different axes, letting you point microscope head in various directions. This microscope offers high resolution, super widefield of view, large magnifying zoom range and long working distance. It is an ideal instrument for researchers, gemologists, engravers, and anyone in semiconductor and/or electronics industry.

Features:

  • 7X-45X Zoom Stereo Microscope with Super Widefield Optics
  • Trinocular Design for High Quality Photographs or Video
  • 30mm Super Widefield 10X Eyepieces with 20mm Field of View
  • 4 inch (100mm) Large Working Distance
  • 45 Degree Inclined Trinocular Head
  • Sharp Stereo Erect Images over a Wide Field View
  • Crystal Clear Original True Color Images
  • High Resolution with Great Flatness and Contrast
  • Eye Tube with Adjustable Diopter
  • Adjustable Interpupillary Distance
  • High-eyepoint Optic Design Ensuring an Easy and Comfortable Viewing, Especially for Eyeglass Wearers
  • Accurate Alignment Ensuring a Fatigue-Free Comfortable Observation
  • Rubber Eyeguards Providing Further Comfort
  • Full Optical Glass Elements
  • Precise Ground Glass Lens
  • Sturdy Boom Stand for Versatility and Large Working Area
  • Stand Finished with Stain Resistant Enamel
  • 1.5" Rugged Solid Cast Metal Stand Base
  • All Metal Mechanical Components
  • Manufactured under ISO 9001 Quality Control Standard
  • Excellent Five (5) Year Manufacturer Warranty



Specifications:

  • Head: 45 degree inclined 360 degree swiveling trinocular
  • Eyepiece: 30mm super widefield high-eyepoint WF10X/20
  • Objective: 0.7-4.5X
  • Zoom Range: 6.5:1
  • Maximum Field of View: 1-1/4" (33mm)
  • Minimum Field of View: 3/16" (4.75mm)
  • Diopter Adjustment: +/-5dp
  • Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
  • Working Distance: 4" (100mm)
  • Boom Stand: 16" arm (overall length: 24"), 17" high pillar, 9" x 9" x 1-3/4" solid cast steel base
  • Accessories: eye-guards



Packing List :

  • One Trinocular Stereo Zoom Head
  • One Pair of Super Widefield 10X Eyepieces
  • One Single-Arm Boom Stand
  • One Focus Rack
  • One Pair of Eye-Guards
  • User's Manual Download
  • Shipping Weight: 65 lbs
  • SM-3T
