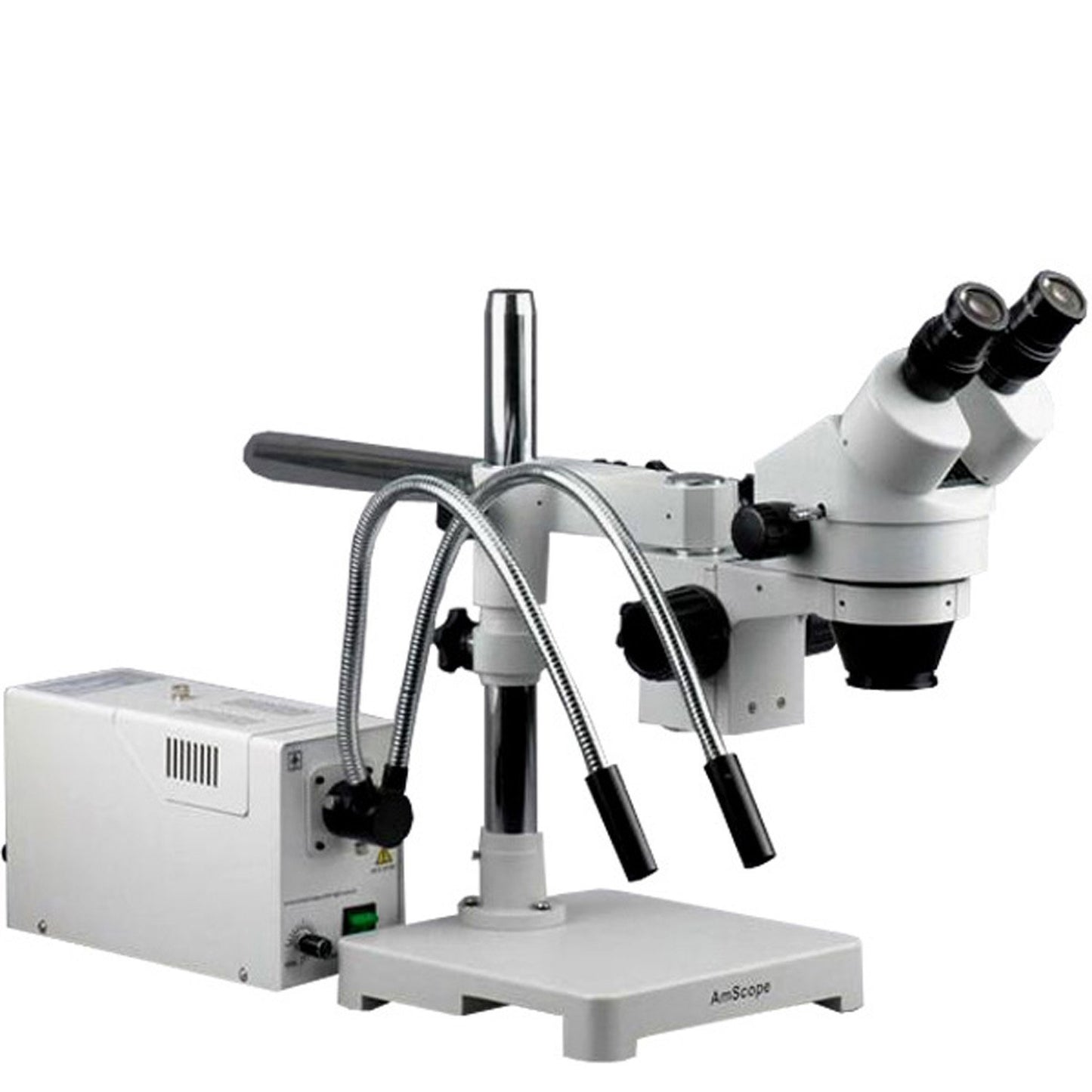

AmScope 7X-45X Stereo Zoom Microscope on Boom w Fiber Optic Gooseneck Light

AmScope 7X-45X Stereo Zoom Microscope on Boom w Fiber Optic Gooseneck Light

|

SKU: SM-3B-FOD

Regular price $723.99
Regular price $868.99 Sale price $723.99
Sale Sold out
Quote Request
AmScope 7X-45X Stereo Zoom Microscope on Boom w Fiber Optic Gooseneck Light
Got Questions? Why Choose Us? View full details

Description

This 3.5X-90X trinocular stereo zoom microscope is on boom stand. It comes with a trinocular head with super widefield optics, a heavy-duty single-arm boom stand, a 54-LED ring light with dimmer, and a 3MP color digital camera. It offers crystal clear erect stereo images, 2-1/2" (65mm) super widefield of view, 26:1 large magnification zoom range and 8" (200mm) large working distance. The high-eyepoint optical design ensures an easy and comfortable observation for all users including eyeglass wearers.

The boom stand gives your microscope the flexibility to cover large working area. The intensity-adjustable LED ring light provides bright, even and cool light illumination.

T The digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.

This microscopy system is an ideal instrument for researchers, gemologists, engravers, collectors and anyone in semiconductor and electronics industries. It is also a perfect microscope for biological laboratory applications that require low heat release.

Features :



  • A 3.5X-90X Continuous Zoom Magnification Microscopy System with Digital Camera on Boom Stand!
  • 54-LED Bright, Even and Cool Lighting Illumination
  • 45 Degree Inclined Trinocular Head with SUPER Widefield High-Eyepoint Eyepieces
  • Erect Stereo Sharp Images over a SUPER Widefield of View
  • Full Optical Glass Elements
  • Precise Ground Glass Lenses
  • High Resolution with Great Flatness and Contrast
  • Crystal Clear Original True Color Images
  • 30mm SUPER Widefield WF10X/20 Eyepieces
  • Large Working Distance
  • Accurate Alignment Ensuring Fatigue-Free Observation
  • Both Ocular-Tubes with Adjustable Diopter
  • Adjustable Interpupillary Distance
  • Versatile Boom Stand Covering Large Working Area
  • Heavy-Duty Cast Steel Stand Finished with Stain Resistant Enamel
  • Rugged Solid Cast Steel Base
  • All Metal Mechanical Components
  • Rubber Eye-guards Included
  • Mounting Adapter for LED Ring Light Included
  • Camera Adapters for Fitting All Other Microscopes Included
  • Manufactured Under ISO 9001 Quality Control Standard
  • Excellent Five (5) Year Factory Warranty
  •



    Specifications :



  • Head: 45 degree inclined 360 degree swiveling trinocular
  • Eyepiece: 30mm Super widefield high-eyepoint WF10X/20
  • Objective: 0.7-4.5X
  • Barlow Lens: 0.5X and 2.0X
  • Zoom Range: 26:1
  • Diopter Adjustment: +/-5dp
  • Interpupillary Distance: 2-3/16" - 2-15/16" (55-75mm)
  • Working Distance: 8" (200mm)
  • Widefield of View (Maximum): 2-1/2" (65mm) in diameter, super widefield
  • Illumination: 54-LED
  • Power input: 110-240V, 50-60HZ, Automatic Switching
  • Boom Stand: 16" arm (overall length: 24"), 17" high pillar, 9" x 9" x 1-3/4" solid cast steel base
  • Accessories: eye-guards
  • Shipping Weight: 65 lbs
  • Packages: 2
  •



    Camera Specifications:



  • Sensor: Aptina MT9T001
  • Sensor Type: CMOS
  • Sensor Size: 6.55x4.92mm
  • Pixel Size: 3.2
  • Resolution: 3.1MP
  • Frame Rate: 8@2048x1536, 22@1024x768, 43@680x510
  • Sensitivity: 1.0V/lux-sec
  • Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux
  •



    Software Specifications:



  • OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
  • Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port
  •





    Packing List :

  • One Trinocular Stereo Zoom Head
  • One Pair of SUPER Widefield 10X Eyepieces
  • One SUPER Widefield 0.5X Barlow Lens
  • One SUPER Widefield 2.0X Barlow Lens
  • One Single-Arm Boom Stand with Focus Rack
  • One Pair of Eye-Guards
  • User's Manual for the Microscope
  • One 54-LED Ring Light with Mounting Adapter
  • One 3MP USB2.0 Digital Camera with Reduction Lens
  • Two Adapters
  • One 6' USB Cable
  • One CD with Software, Driver and Step-by-Step User's Instructions
  •

    AmScope SM-3TZ-54S-3M
