AmScope 7X-45X Advanced Stereo Gemology Microscope with LED Top-light + 20MP USB Camera

AmScope 7X-45X Advanced Stereo Gemology Microscope with LED Top-light + 20MP USB Camera

|

SKU: GM400T-LED-20MBI3

Regular price $2,482.99
Regular price $2,979.99 Sale price $2,482.99
Sale Sold out
Quote Request
AmScope 7X-45X Advanced Stereo Gemology Microscope with LED Top-light + 20MP USB Camera
Got Questions? Why Choose Us? View full details

Description

The GM400T-LED is designed for professional jewelers and gemologists. It features a 7X-45X zoom stereo microscope head with a wide field-of-view. The trinocular head provides a switchable photo-port for mounting a camera. The support system features a rotating footprint for easy turning, and a reclining arem for sitting or standing. The sub-stage halogen illuminator provides switchable brightfield and darkfield with an iris aperture for transmitted lighting. A gooseneck-mounted LED lamp provides reflected illumination for surface inspection. All lights are variable-intensity for prcision control. The stage-mounted gem-clamp can be swiveled and twisted for precise positioning.

The 20MP USB camera can be used with PC and Mac computers, and provides extremely high-resolution images. The included software provides a live view for on-screen viewing, and multiple capture resolutions. The Windows version includes enhanced editing and measuring tools.

Features:

  • A high quality professional 7X-45X trinocular jeweler's microscope
  • Comfortable Ergonomic design
  • High resolution sharp images with both bright and dark field illumination
  • Large rotatable round stage with built-in darkfield condenser, 3D gem clamp and graduations
  • Adjustable stand for easy and comfortable observation
  • Possible to measure gem angles
  • Advanced halogen system providing 100% CRI illumination for brightfield and darkfield illumination
  • Flexible gooseneck-supported LED top-light for reflected illumination

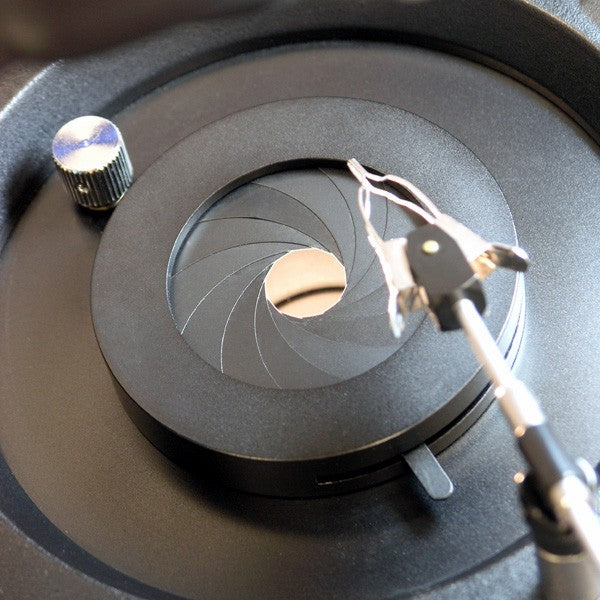

  • Built-in darkfield with iris-aperture
  • 3D flexible gem clamp
  • 45 degree inclined 360 degree rotatable trinocular head
  • Trinocular port for adding photo or video capability
  • Large zoom magnification range
  • High resolution optics with great flatness and contrast
  • Sharp stereo erect images over a wide field view
  • Crystal clear original true color images
  • Eye tube with adjustable diopter
  • Accurate alignment ensuring a fatigue-free viewing
  • Full optical glass elements
  • Precise ground glass lenses
  • All metal mechanical components
  • Adjustable interpupillary distance
  • Rubber eye-guards included
  • Manufactured under restrict ISO 9001 quality control system
  • Five (5) year manufacturer warranty for microscope
  • Unbeatable lowest price guaranteed or the difference back!
  • Satisfaction guaranteed or your money back!
  •

    Specifications:

  • Head: 45 degree inclined 360 degree swiveling trinocular
  • Eyepiece: 30mm widefield WF10X/20
  • Objective: 0.7-4.5X
  • Zoom Range: 6.7:1
  • Field of View: 1-1/2" (33mm) in diameter
  • Working Distance: 4" (100mm)
  • Interpupillary Distance: 2-3/16" - 2-15/16" (55mm-75mm)
  • Stand: gemology stand, inclinable up to 38 degrees
  • Iris Diaphragm: 2 - 41mm
  • Focal Range: 4-3/8" (110mm)
  • Stereo Angle: 12.4 degree
  • Diopter Adjustment: +/-5dp
  • Top Illumination: 1W LED
  • Bottom Illumination: 6V/30W halogen
  • Power Supply: 100-240VAC 50/60Hz
  •

    Camera Specifications:

  • Sensor: Sony IMX183 (color)
  • Sensor Type: BSI CMOS
  • Sensor Size: 1" (13.3mm x 8.9mm, 15.8mm diagonal)
  • Pixel Size: 2.4µm x 2.4µm
  • Sensor Pixels: 20MP (5440x3648)
  • Sensitivity: 462mv
  • Max Framerates: 15fps @ 5440x3648, 50fps @ 2736x1824, 60fps @ 1824x1216
  • Binning: 1x1, 2x2, 3x3
  • Exposure Time: 0.1ms - 15s
  • Connectivity: USB 3.0
  • Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux
  •

    Packing List:

  • One trinocular stereo zoom microscope head
  • One gemology microscope frame
  • One pair of super-widefield WH10X/20 eyepieces
  • One 3D gem-clamp (tweezers)
  • One dust cover
  • One 1X C-mount photo-port adapter
  • One 20MP camera
  • One USB cable
  • One software disk
