This high quality microscope is designed for professional jewelers and gemologists. It includes a 7X-45X super widefield zoom stereo microscope head, 3D jewelry/gem clamp (tweezers), rotatable round stage with darkfield iris condenser and professional GEM stand. It offers 4" (100mm) working distance, 1-1/4" (33mm) super wide field of view and 6.7:1 large zoom magnification range. The microscope is illuminated with a 30W darkfield halogen light built in to the base and a 7W gooseneck rectangular fluorescent incident light box, providing rich spectrum, high-temperature color and close-to-daylight illumination. The incident light box shines light down onto objects, used to observe the surface details and fine structures of jewels or gemstones. The transmitted light through the darkfield condenser is designed for the examination of the inside quality of diamonds. This microscope is manufactured under the strict guidelines established under ISO 9001:2000 Standards.
Features:
A high quality professional 7X-45X trinocular jewelry/gem microscope with rotatable darkfield stage
A right microscope for distinguishing genuine & imitation gems and judging production origin
Comfortable Ergonomic design
High resolution sharp images with both bright and dark field illumination
Large rotatable round stage with built-in darkfield condenser, 3D gem clamp and graduations
Adjustable stand for easy and comfortable observation
Possible to measure gem angles
Advanced halogen system providing rich spectrum, high-temperature color, and close-to-daylight illumination
Flexible gooseneck-supported rectangular incident (top) fluorescent lamp
Bright halogen bottom light with dimmer for best darkfield illumination

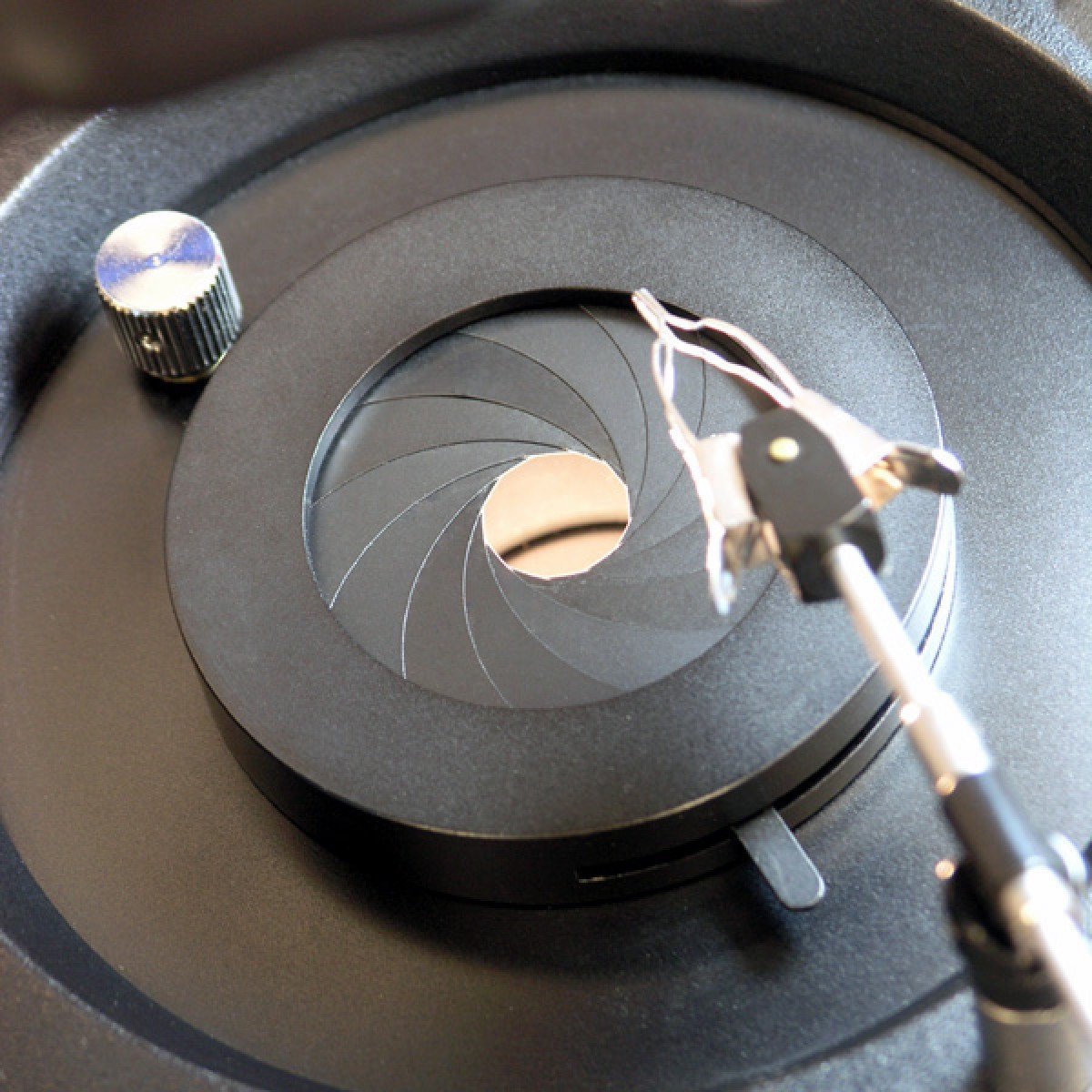

Built-in darkfield condenser with iris
3D flexible gem clamp
45 degree inclined 360 degree rotatable trinocular head
Trinocular port for adding photo or video capability
Large zoom magnification range
High resolution optics with great flatness and contrast
Sharp stereo erect images over a wide field view
Crystal clear original true color images
Eye tube with adjustable diopter
Accurate alignment ensuring a fatigue-free viewing
Full optical glass elements
Precise ground glass lenses
All metal mechanical components
Adjustable interpupillary distance
Rubber eye-guards included
Manufactured under restrict ISO 9001 quality control system
Five (5) year manufacturer warranty for microscope
Unbeatable lowest price guaranteed or the difference back!
Satisfaction guaranteed or your money back!
Specifications:
Head: 45 degree inclined 360 degree swiveling trinocular
Eyepiece: 30mm widefield WF10X/20
Objective: 0.7-4.5X
Zoom Range: 6.7:1
Field of View: 1-1/2" (33mm) in diameter
Working Distance: 4" (100mm)
Interpupillary Distance: 2-3/16" - 2-15/16" (55mm-75mm)
Stand: gemology stand, inclinable up to 38 degrees
Iris Diaphragm: 2 - 41mm
Focal Range: 4-3/8" (110mm)
Stereo Angle: 12.4 degree
Diopter Adjustment: +/-5dp
Top Illumination: 7W fluorescent
Bottom Illumination: 30W halogen
Power Supply: AC 110V 60Hz
Accessories: dust cover, eye-guards and clips
Shipping Weight: 50 lbs
Packing List:
One Trinocular Stereo Zoom Microscope Head
One gemology microscope Frame with Stage, Base and Darkfield Illumination House
One Pair of Super Widefield WH10X/20 Eyepieces
One Rectangular Fluorescent Lamp
One 3D Gem Clamp (tweezers)
One Dust Cover
User's Manual
This high quality microscope is designed for professional jewelers and gemologists. It includes a 7X-45X super widefield zoom stereo microscope head, 3D jewelry/gem clamp (tweezers), rotatable round stage with darkfield iris condenser and professional GEM stand. It offers 4" (100mm) working distance, 1-1/4" (33mm) super wide field of view and 6.7:1 large zoom magnification range. The microscope is illuminated with a 30W darkfield halogen light built in to the base and a 7W gooseneck rectangular fluorescent incident light box, providing rich spectrum, high-temperature color and close-to-daylight illumination. The incident light box shines light down onto objects, used to observe the surface details and fine structures of jewels or gemstones. The transmitted light through the darkfield condenser is designed for the examination of the inside quality of diamonds. This microscope is manufactured under the strict guidelines established under ISO 9001:2000 Standards.
Features:
A high quality professional 7X-45X trinocular jewelry/gem microscope with rotatable darkfield stage
A right microscope for distinguishing genuine & imitation gems and judging production origin
Comfortable Ergonomic design
High resolution sharp images with both bright and dark field illumination
Large rotatable round stage with built-in darkfield condenser, 3D gem clamp and graduations
Adjustable stand for easy and comfortable observation
Possible to measure gem angles
Advanced halogen system providing rich spectrum, high-temperature color, and close-to-daylight illumination
Flexible gooseneck-supported rectangular incident (top) fluorescent lamp
Bright halogen bottom light with dimmer for best darkfield illumination
Built-in darkfield condenser with iris
3D flexible gem clamp
45 degree inclined 360 degree rotatable trinocular head
Trinocular port for adding photo or video capability
Large zoom magnification range
High resolution optics with great flatness and contrast
Sharp stereo erect images over a wide field view
Crystal clear original true color images
Eye tube with adjustable diopter
Accurate alignment ensuring a fatigue-free viewing
Full optical glass elements
Precise ground glass lenses
All metal mechanical components
Adjustable interpupillary distance
Rubber eye-guards included
Manufactured under restrict ISO 9001 quality control system
Five (5) year manufacturer warranty for microscope
Unbeatable lowest price guaranteed or the difference back!
Satisfaction guaranteed or your money back!
Specifications:
Head: 45 degree inclined 360 degree swiveling trinocular
Eyepiece: 30mm widefield WF10X/20
Objective: 0.7-4.5X
Zoom Range: 6.7:1
Field of View: 1-1/2" (33mm) in diameter
Working Distance: 4" (100mm)
Interpupillary Distance: 2-3/16" - 2-15/16" (55mm-75mm)
Stand: gemology stand, inclinable up to 38 degrees
Iris Diaphragm: 2 - 41mm
Focal Range: 4-3/8" (110mm)
Stereo Angle: 12.4 degree
Diopter Adjustment: +/-5dp
Top Illumination: 7W fluorescent
Bottom Illumination: 30W halogen
Power Supply: AC 110V 60Hz
Accessories: dust cover, eye-guards and clips
Shipping Weight: 50 lbs
Packing List:
One Trinocular Stereo Zoom Microscope Head
One gemology microscope Frame with Stage, Base and Darkfield Illumination House
One Pair of Super Widefield WH10X/20 Eyepieces
One Rectangular Fluorescent Lamp
One 3D Gem Clamp (tweezers)
One Dust Cover
User's Manual
Microscope Type |
Stereo |
Specialized |
Darkfield |
Application |
Gemology/Jewelry |
Magnification Power |
7X-45X |
Field View |
Super Widefield |
Head Type |
Trinocular |
Objective Power |
0.7-4.5X |
Eyepiece Power |
10X |
Eyepiece Size |
30mm |
Stage |
Other |
Microscope Stand |
Other |
Light Type |
Halogen, Fluorescent |
Light Power |
7W, 30W |
Light Shape |
Rectangular Plate, Built-in |
Number of Light Bulbs |
2 |
Iris |
With Iris |
Power Supply |
110V, 220V |
Manufacturer |
AmScope |
Color |
White, Black |
