AmScope 5X-80X Jewelry Gem Trinocular Stereo Microscope with Three Lights - SH-2TZ-SL-DK
![]()
![]()
![Accu-Scope 3000 LED Microscope - Microscope Central
- 2]()
![Accu-Scope 3000 Digital Microscope Package]()
![Accu-Scope EXC-120 Microscope]()
A brightfield and darkfield trinocular microscopy system for jewelry/gem applications
Three light illumination: incident (top) light, darkfield transmitted bottom light and gooseneck fluorescent rectangular side lighting box
Trinocular port for adding photographic or video capability
Large zoom magnification range (10X-60X)
Darkfield condenser included
Jewelry/gem clamp included
45 degree inclined 360 degree rotatable trinocular head
High resolution optics with great flatness and contrast
Sharp stereo erect images over a wide field view
Crystal clear original true color images
Eye tube with adjustable diopter
Metal pillar stand finished with stain resistant enamel
Accurate alignment ensuring a fatigue-free long time view
Full optical glass elements
Precise ground glass lenses
All metal mechanical components
Adjustable interpupillary distance
Rubber eye-guards included
Dual halogen illumination system
Built-in top and bottom halogen lights
Manufactured under restrict ISO 9001 quality control system
Five (5) year manufacturer warranty for microscope
Lowest price for the same guaranteed or the difference back!
Satisfaction guaranteed or your money back!
Head: 45 degree inclined 360 degree swiveling trinocular
Eyepiece: 30.5mm widefield WF10X and WF15X
Objective: 1.0-4.0X
Zoom Range: 6:1
Diopter Adjustment: +/-5dp
Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
Working Distance: 3-3/8"
Frosted Glass Plate: 3-3/4" (95mm) in diameter
White/Black Plastic Plate: 3-3/4" (95mm) in diameter
Illumination: 12V/10W halogen lamps
Power Supply: 110V (220V adapter available)
Accessories: dust cover, eye-guards and clips
One Trinocular Stereo Zoom Microscope Head
One Pair of Widefield WF10X Eyepieces
One Pair of Widefield WF15X Eyepieces
One Pillar Stand with Incident and Darkfield Illumination System
One Rectangular Fluorescent Lighting Box
One 3D Gem Clamp (tweezers)
One Dust Cover
User's Manual
Shipping Weight: 20 lbs
A brightfield and darkfield trinocular microscopy system for jewelry/gem applications
Three light illumination: incident (top) light, darkfield transmitted bottom light and gooseneck fluorescent rectangular side lighting box
Trinocular port for adding photographic or video capability
Large zoom magnification range (10X-60X)
Darkfield condenser included
Jewelry/gem clamp included
45 degree inclined 360 degree rotatable trinocular head
High resolution optics with great flatness and contrast
Sharp stereo erect images over a wide field view
Crystal clear original true color images
Eye tube with adjustable diopter
Metal pillar stand finished with stain resistant enamel
Accurate alignment ensuring a fatigue-free long time view
Full optical glass elements
Precise ground glass lenses
All metal mechanical components
Adjustable interpupillary distance
Rubber eye-guards included
Dual halogen illumination system
Built-in top and bottom halogen lights
Manufactured under restrict ISO 9001 quality control system
Five (5) year manufacturer warranty for microscope
Lowest price for the same guaranteed or the difference back!
Satisfaction guaranteed or your money back!
Head: 45 degree inclined 360 degree swiveling trinocular
Eyepiece: 30.5mm widefield WF10X and WF15X
Objective: 1.0-4.0X
Zoom Range: 6:1
Diopter Adjustment: +/-5dp
Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
Working Distance: 3-3/8"
Frosted Glass Plate: 3-3/4" (95mm) in diameter
White/Black Plastic Plate: 3-3/4" (95mm) in diameter
Illumination: 12V/10W halogen lamps
Power Supply: 110V (220V adapter available)
Accessories: dust cover, eye-guards and clips
One Trinocular Stereo Zoom Microscope Head
One Pair of Widefield WF10X Eyepieces
One Pair of Widefield WF15X Eyepieces
One Pillar Stand with Incident and Darkfield Illumination System
One Rectangular Fluorescent Lighting Box
One 3D Gem Clamp (tweezers)
One Dust Cover
User's Manual
Shipping Weight: 20 lbs
![0.35x c-mount for Nikon Microscopes]()
![0.35x C-mount for Olympus Microscopes]()
![0.55x C-Mount for Nikon Microscopes]()
![0.7x C-Mount for Nikon Microscopes]()
Request Quote
![0.7X-5X Zoom Monocular Inspection Microscope + 9MP USB 2.0 C-mount Camera]()
![0.7X-5X Zoom Monocular Inspection Microscope + 9MP USB 2.0 C-mount Camera]()
Unsure Which Microscope?
Check Out Our Buying Tips
Confused?
Our Experts Can Help Suggest The Best Microscope For Your Needs
Featured
Accu-Scope 3000 LED Microscope
$1,122.00
$936.00
Accu-Scope 3000 Digital Microscope Package
$2,368.00
$1,977.00
Accu-Scope EXC-120 LED Microscope
$771.00
$643.00
AmScope 5X-80X Jewelry Gem Trinocular Stereo Microscope with Three Lights - SH-2TZ-SL-DK
- SKU: SH-2TY-SL-DK
$753.99
$943.99
This 10X-60X trinocular jewelry/gem stereo zoom microscope comes with a trinocular zoom head with a photo port, a darkfield condenser, a jewelry/gem clamp, a gooseneck fluorescent rectangular side lighting box, and a both incident (top) & transmitted (bottom) halogen illumination system. The trinocular port enables to add photographic or video capability. The lighting box shining down onto objects is used for the observation of surface details and fine structures of jewels or gemstones. The transmitted illumination through the condenser is for the examination of inside quality of diamonds. The 45 degree inclined trinocular ensures an comfortable observation. This microscope gives crystal clear images. It provides large zoom magnification range (6:1) and large working distance. It is an ideal instrument for gemologists, jewelry dealers and collectors.
Features :
Specifications :
Packing List :

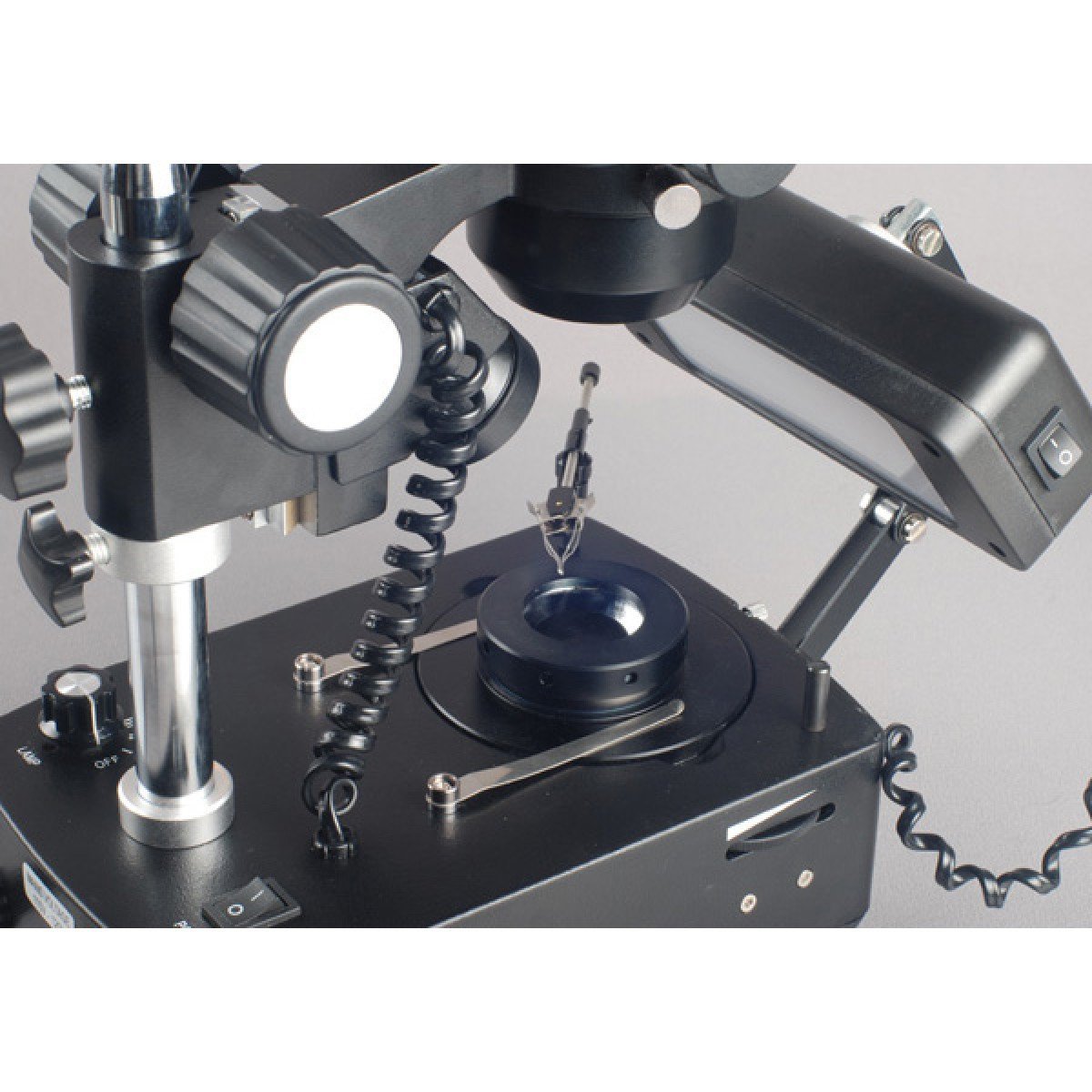

AmScope SH-2TY-SL-DK Microscope
This 10X-60X trinocular jewelry/gem stereo zoom microscope comes with a trinocular zoom head with a photo port, a darkfield condenser, a jewelry/gem clamp, a gooseneck fluorescent rectangular side lighting box, and a both incident (top) & transmitted (bottom) halogen illumination system. The trinocular port enables to add photographic or video capability. The lighting box shining down onto objects is used for the observation of surface details and fine structures of jewels or gemstones. The transmitted illumination through the condenser is for the examination of inside quality of diamonds. The 45 degree inclined trinocular ensures an comfortable observation. This microscope gives crystal clear images. It provides large zoom magnification range (6:1) and large working distance. It is an ideal instrument for gemologists, jewelry dealers and collectors.
Features :
Specifications :
Packing List :
AmScope SH-2TY-SL-DK Microscope
| Microscope Type | Stereo |
|---|---|
| Specialized | Darkfield |
| Application | Gemology/Jewelry |
| Field View | Widefield |
| Head Type | Trinocular |
| Objective Power | 1.0-4.0X |
| Eyepiece Power | 10X, 15X |
| Eyepiece Size | 30.5mm |
| Stage | Single-layer Stage with Clips |
| Microscope Stand | Table Stand: pillar |
| Light Type | Halogen, Fluorescent |
| Light Power | 10W |
| Light Shape | Built-in, Other |
| Number of Light Bulbs | 2 |
| Iris | Without Iris |
| Power Supply | 110V, 220V |
| Education | College, Teaching/Training |
| Manufacturer | AmScope |
| Color | Black |
