AmScope 5X-80X Darkfield Jewelry Gem Microscope + 3MP Camera

AmScope 5X-80X Darkfield Jewelry Gem Microscope + 3MP Camera

|

SKU: SH-2TZ-DK-3M

Regular price $757.99
Regular price $909.99 Sale price $757.99
Sale Sold out
AmScope 5X-80X Darkfield Jewelry Gem Microscope + 3MP Camera
Got Questions? Why Choose Us? View full details

Description

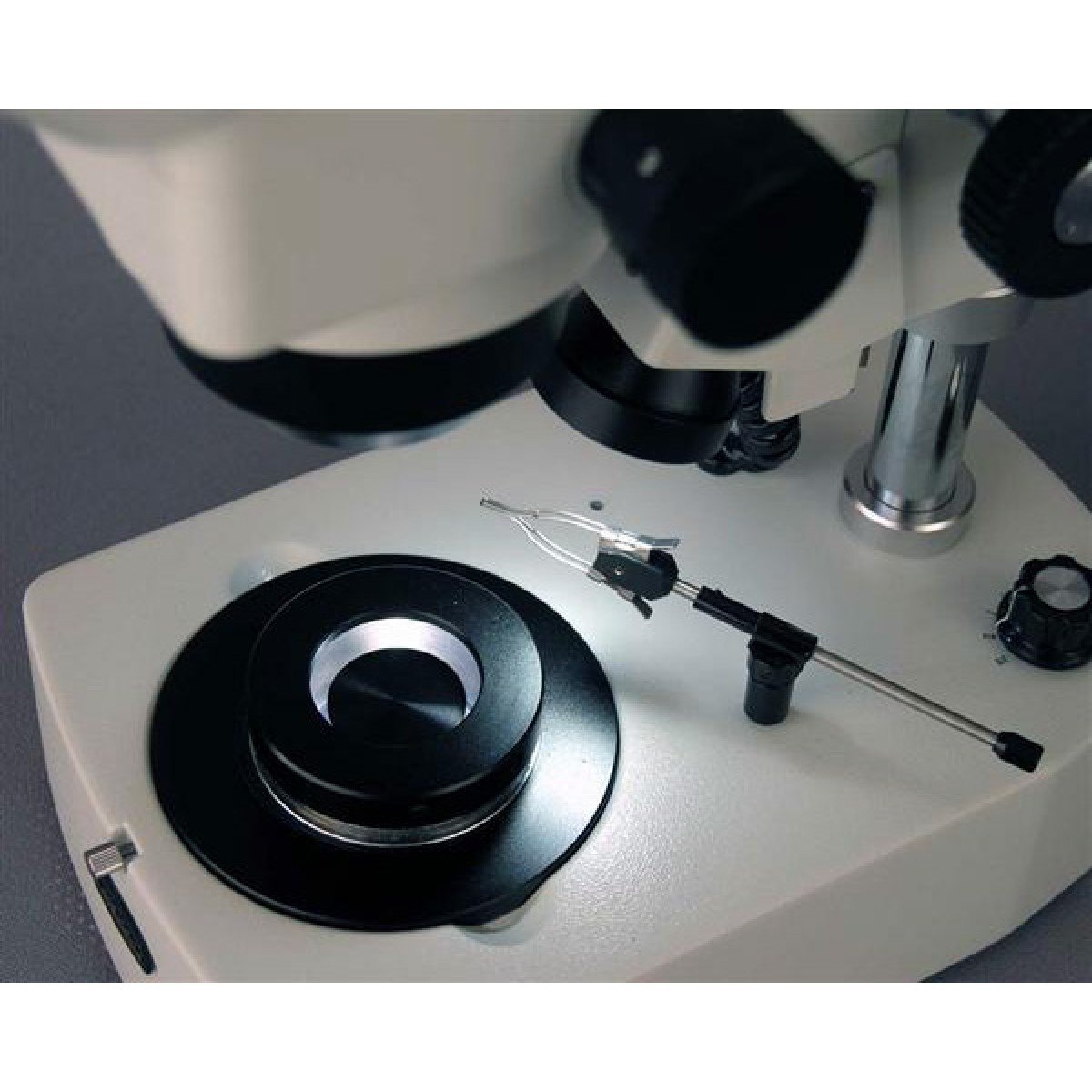

This is a trinocular jewelry/gem stereo zoom microscope with 3MP color USB2.0 digital camera that captures microscope images and displays them on your computer screens. The microscope comes with a darkfield condenser, a jewelry/gem clamp and top & bottom halogen lights. It offers a large zoom range (5X-80X) and crystal clear images. The digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features. This is an ideal instrument for jewelry dealers and collectors. This microscopy package is brand new in box.

Features :

  • A perfect brightfield and darkfield microscopy system for jewelry/gem applications
  • Large zoom magnification (5X-80X) microscopy turnkey package
  • Darkfield condenser included
  • Jewelry/gem clamp included
  • 45 degree inclined 360 degree rotatable trinocular head
  • High resolution optics with great flatness and contrast
  • Sharp stereo erect images over a wide field view
  • Crystal clear original true color images
  • Eye tube with adjustable diopter
  • Metal pillar stand finished with stain resistant enamel
  • Accurate alignment ensuring a fatigue-free long time view
  • Full optical glass elements
  • Precise ground glass lenses
  • All metal mechanical components
  • Adjustable interpupillary distance
  • Rubber eye-guards included
  • Dual halogen illumination system
  • Built-in top and bottom halogen lights
  • CE approval electric apparatus
  • Manufactured under ISO 9001 Quality Control Standard
  • Lowest price for the same guaranteed or the difference back!
  • Satisfaction guaranteed or your money back!
  • Manufactured under restrict ISO 9001 quality control system
  • Five (5) year manufacturer warranty for microscope
  •

    Specifications:

  • Head: 45 degree inclined 360 degree swiveling binocular
  • Eyepiece: 30.5mm widefield WF5X, WF10X & WF20X
  • Objective: 1.0-4.0X
  • Zoom Range: 16:1
  • Diopter Adjustment: +/-5dp
  • Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
  • Working Distance: 3-3/8"
  • Stage Plates: a frosted glass objective plate and a white/black plastic plate with diameter: 3-3/4" (95mm)
  • Illumination: 12V/10W halogen lamps
  • Accessories: dust cover, eye-guards and clips
  •

    Camera Specifications:

  • Sensor: Aptina MT9T001
  • Sensor Type: CMOS
  • Sensor Size: 6.55x4.92mm
  • Pixel Size: 3.2
  • Resolution: 3.1MP
  • Frame Rate: 8@2048x1536, 22@1024x768, 43@680x510
  • Sensitivity: 1.0V/lux-sec
  • Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux
  •

    Software Specifications:

  • OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
  • Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port
  • Packing List :
  • 1 Trinocular Stereo Zoom Head
  • 1 Pillar Base with Top and Bottom Lights and Focusing Rack
  • 1 Pair of 30.5mm Widefield 5X Eyepieces
  • 1 Pair of 30.5mm Widefield 10X Eyepieces
  • 1 Pair of 30.5mm Widefield 20X Eyepieces
  • 1 Frosted Round Glass Plate
  • 1 White/Black Round Plastic Plate
  • 1 Power Cord
  • 1 Pair of Clips
  • 1 Pair of Eye-guards
  • 1 Dust Cover
  • 1 3MP Color Digital Camera with Reduction Lens
  • 1 6' (1.8m) USB Cable
  • 2 Eyepiece Adapters, 30.0mm 30.5mm
  • 1 CD with Software, Driver and User's Instructions
  • Shipping Weight: 20 lbs
  • river and User's Instructions
  • Shipping Weight: 20 lbs
  • AmScope SH-2TZ-DK-3M Microscope
  •
