This is an advanced brightfield, darkfield and polarizing metallurgical microscopy system with 3MP USB2.0 digital image system. The microscope comes with a quintuple nosepiece, five infinity Plan objectives and a powerful 100W reflected Kohler illumination system, providing brightfield, darkfield and polarizing features. It offers ten metallurgical magnification settings (50X, 75X,100X, 150X, 200X, 300X, 500X, 750X, 800X & 1200X).
The digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.
This microscopy system is perfect for metallurgical labs and foundries for silicon wafer inspection, integrated circuit examination, quality control and R&D applications. It is an ideal instrument for metallurgical, mineral and crystal identification.
Features :
A brightfield, darkfield and polarizing metallurgical microscopy system with 100W Kohler illumination
Color corrected infinity optical system (CCIS)
25 degree inclined 360 degree rotatable gemel trinocular head with vertical image
100% prismatic rate
Quintuple nosepiece with brightfield (BF) and darkfield (DF)
Five infinity PLAN Achromatic objectives included
Eyepiece with 0.1mm micrometer and cross hair included
100 Watt halogen reflected EPI-illumination system
Digital controlled intensity adjustment and light reset
Ten levels of metallurgical magnification: 50X, 60X, 100X, 150X, 200X, 300X, 500X, 750X, 800X & 1200X
Two sets of high point Plan eyepieces included
6" extremely large mechanical stage with clutch for swift moving control
Low position stage traveling controls
Full optical glass elements
Precise ground glass lenses
All metal mechanical parts
Coaxial coarse and fine focusing system
Dual focusing control knobs
Focusing tension control mechanism
Adjustable interpupillary distance
Adjustable diopters on both eye tubes
Solid metal frame construction with stain resistant enamel finish
Spare bulb, fuse, bottle of immersion oil, and dust cover included
Manufactured under restrict ISO 9001 quality control standards
Excellent five (5) year factory warranty
Specifications :
Optical system: color corrected infinity optical system (CCIS)
Eyepieces: PL10X high point Plan eyepieces with 22mm (in diameter) field of view and PL15X high point Plan eyepieces with 16mm (in diameter) field of view
Head: 25 (in diameter) inclined gemel trinocular with vertical image and 100% prismatic rate
Nosepiece: build-in quintuple nosepiece with BF and DF
Objective: infinity Plan Achromatic metallurgical 5X/0.17/12, 10X/0.25/6, 20X/0.4/5, 50X/0.7/2 and 80X/0.8/1 for both BF and DF
Focusing System: coaxial coarse and fine; moving range: 33mm, fine precision: 0.001mm
Stage: 6" rectangle mechanical stage; moving range: 158mm x 158mm; low hand adjustment and clutch for swift moving control
Illuminator: reflected Kohler illuminator with BF and DF; 12V/100W halogen; digital adjustment of brightness and light renew function
Power Supply: 110V (220/240V version available)
Shipping Weight: 70 lbs
Packages: 2 (50 lbs + 20 lbs)
Camera Specifications:
Sensor: Aptina MT9T001
Sensor Type: CMOS
Sensor Size: 6.55x4.92mm
Pixel Size: 3.2
Resolution: 3.1MP
Frame Rate: 8@2048x1536, 22@1024x768, 43@680x510
Sensitivity: 1.0V/lux-sec
Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux
Software Specifications:
OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port
Packing List:
One Gemel Metallurgical Trinocular Infinity Microscope
One Microscope Body with Frame and Base
Two Pairs of Extreme Widefield Plan Eyepieces, PL10X and PL15X
Five Infinity Plan Achromatic Metallurgical Objectives, 5X, 10X, 20X, 50X & 80X
Phase Contrast, Darkfield and All Other Accessories

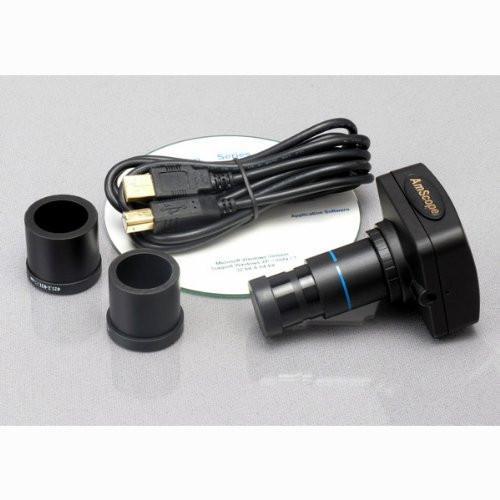

One 3MP USB Digital Camera with Reduction Lens
Step-by-Step User's Instructions
User's Manual
AmScope ME600TYA-3M Microscope
