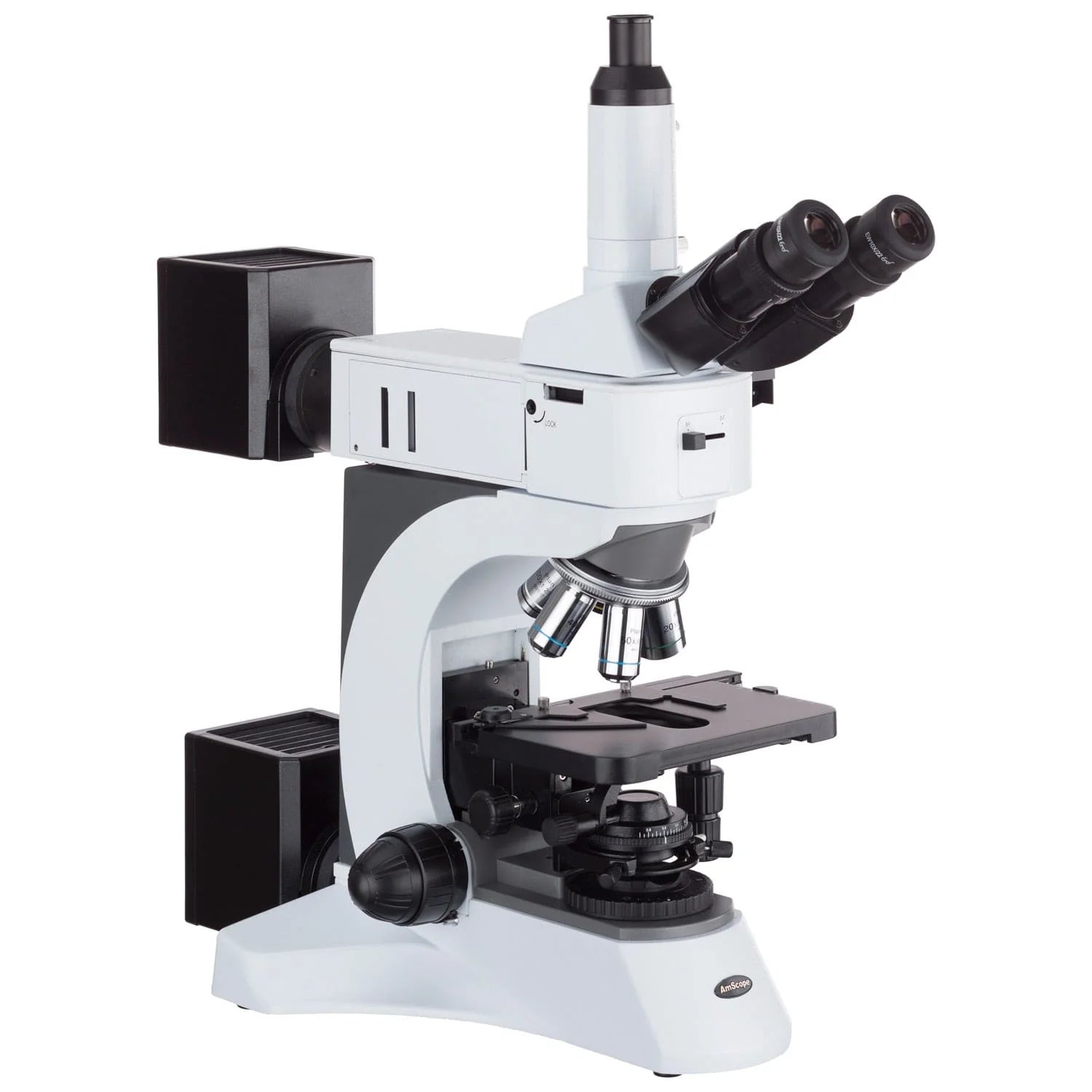

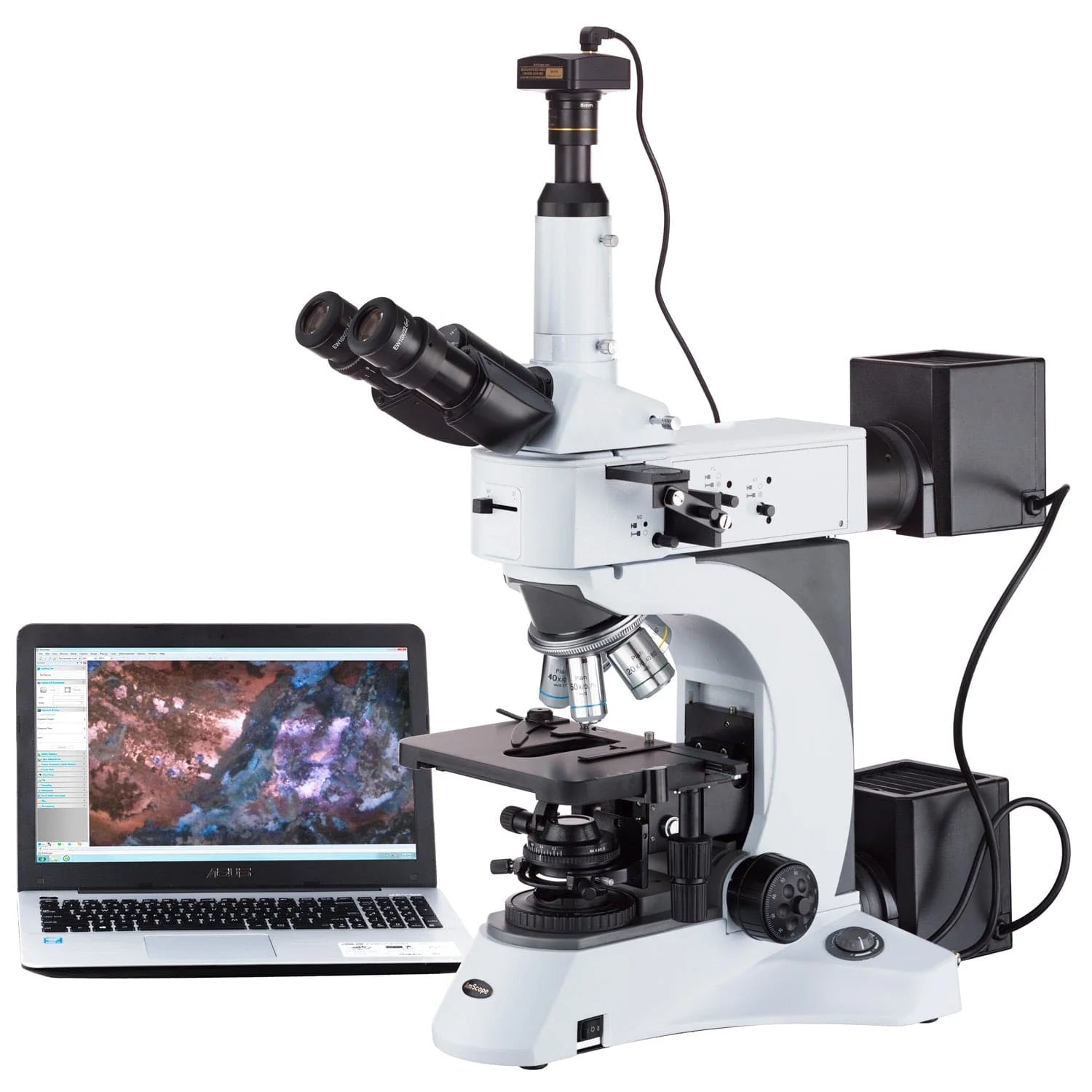

AmScope 50X-1000X Darkfield Polarizing Metallurgical Microscope + 9MP Camera
![]()
![]()
![Accu-Scope 3000 LED Microscope - Microscope Central
- 2]()
![Accu-Scope 3000 Digital Microscope Package]()
![Accu-Scope EXC-120 Microscope]()
An advanced metallurgical microscopy system with reflected and transmitted illuminations
A great microscope for both reflected and transmitted applications
Built-in polarization system with polarizer and analyzer
Built-in bright/dark viewing field system with conversion slide
Quintuple nosepiece with three holes for bright field objectives and another two for darkfield
Seven infinitive Plan Achromatic objectives included
Eyepiece with 0.1mm micrometer and cross hair included
100 Watt halogen reflected EPI-illumination system
100 Watt halogen transmitted illumination system
EPI-illumination filters included
Photo/video capability with 23mm universal/standard photo port
Fully coated optical system with high resolution
30 degree inclined 360 degree rotatable trinocular Siedentopf head
Nine levels of metallurgical magnification, 50X, 100X, 125X, 250X, 200X, 500X, 1250X, 1000X & 2500X
Three levels of transmitted (biological) magnification, 400X, 1000X & 2500X
Co-axial coarse & fine focusing system
Two sets of eyepiece included

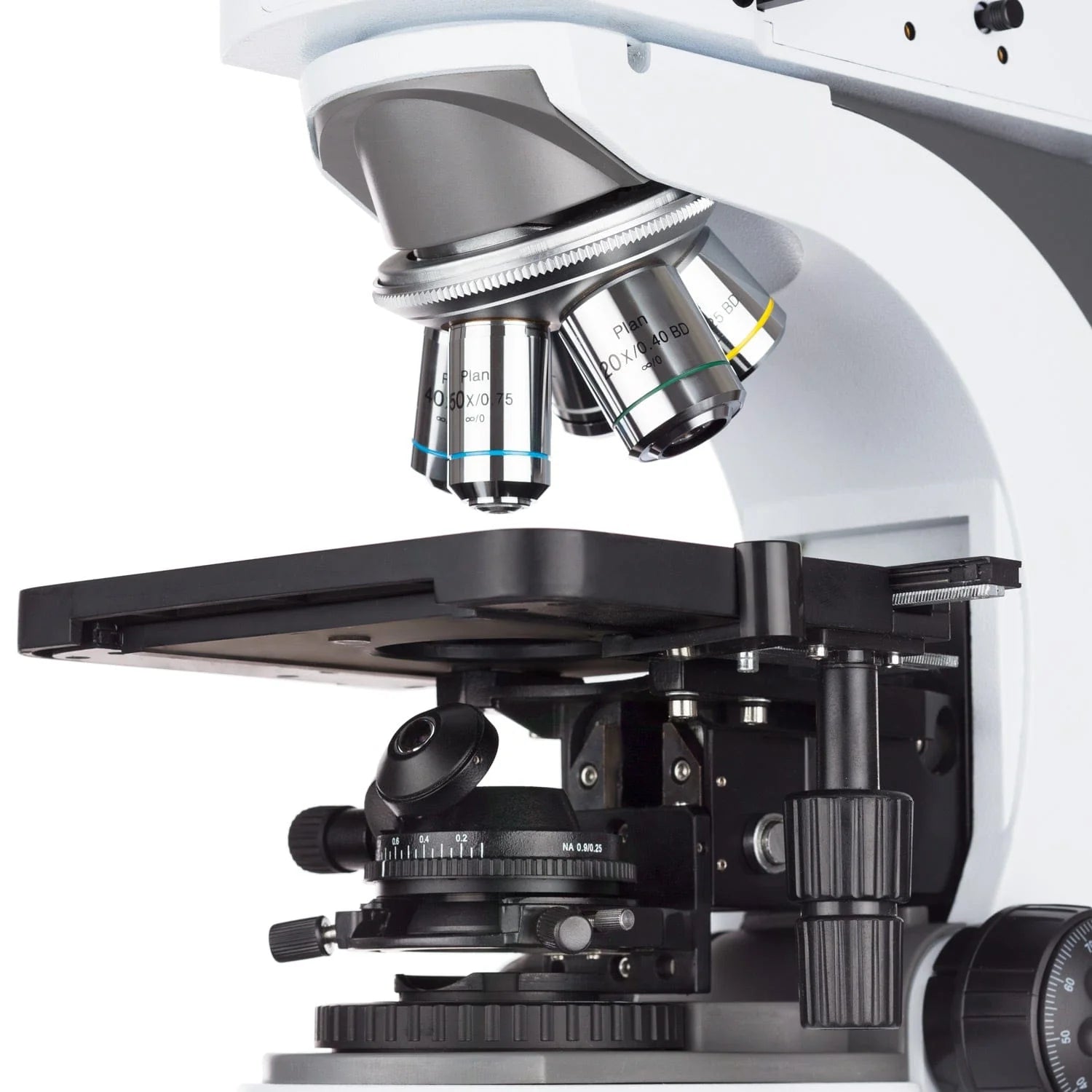

Large mechanical stage with stain resistant finish
Low position stage traveling controls
Full optical glass elements
Precise ground glass lens
All metal mechanical parts
Coaxial coarse and fine focusing
Dual focusing control knobs
Focusing tension control mechanism
30 degree inclined 360 degree rotatable trinocular head
Adjustable interpupillary distance
Adjustable diopters on both eye tubes
Solid metal frame construction with stain resistant enamel finish
Spare bulb, fuse, bottle of immersion oil, and dust cover included
Manufactured under ISO 9001 quality control standards
Excellent five (5) year factory warranty

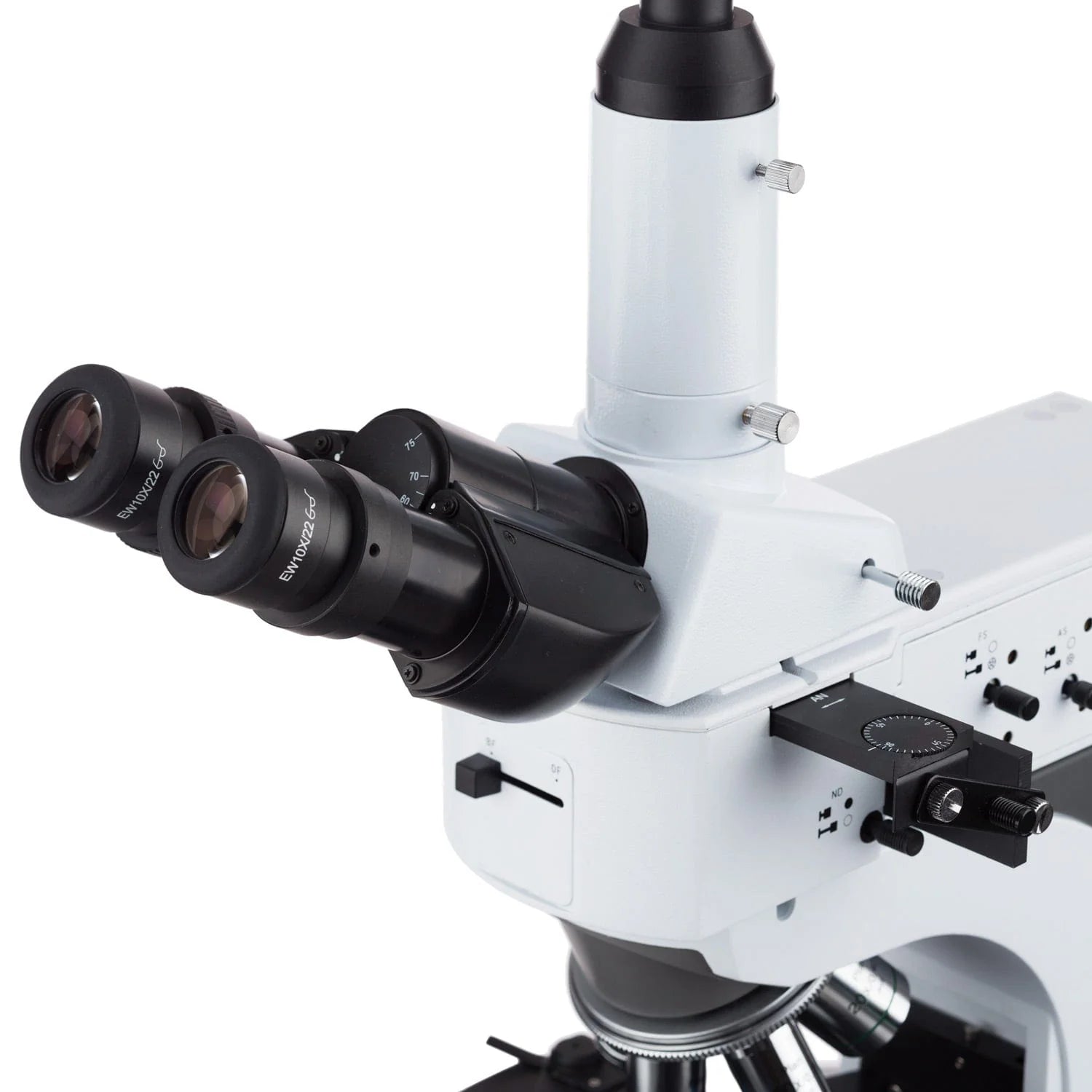

Head: 30 degree inclined trinocular
Eyepieces: WF10X/22 and WF25X/9
Nosepiece: quintuple nosepiece - 3 holes for bright field objectives and 2 holes for dark field objectives
Objectives: infinitive Plan Achromatic objectives, 5X/0.12, 10X/0.25, 20X/0.40, 50X/0.75 & 100X/0.90, for metallurgical applications and infinitive Plan Achromatic objectives, 40X/0.65 & 100X/1.25, for biological applications
Polarization System: built-in polarizer and analyzer
Bright/Dark Viewing Field System: built-in conversion slide for bright/dark field illumination
Diaphragm: Epi-illuminator with Iris aperture diaphragm and iris field diaphragm
Stage: double layer mechanical stage with size 185X142mm
Illumination Systems: 24V 100W T-H lamp for metallurgical applications (intensity adjustable, lamp centering adjustable) and built-in 24V 100W T-H lamp for biological applications (intensity adjustment)
Collector: centering adjustable Kohler collector with field iris diaphragm
Vertical Photo/Video Port: 23mm universal/standard photo tube (100%-0% or 20%-80%)
Power Supply: Wide Band, CE certified
Image Sensor: Micron (color)
Sensor Type: CMOS
Sensor Size: 1/2.3"
Pixel Size: 1.67µm
Resolution: 10.0MP
Frame Rate: 30 fps @ 640x480, 15 fps @ 1280x1024, 2.5fps @ 3856x2764
Sensitivity: 0.34V/lux-sec (550 nm)
Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX
One Trinocular Microscope Siedentopf Head
One Microscope Body with Frame, Stage, Base and EPI & Transmitted Illumination System
Five (EPI) Infinitive Plan Metallurgical Objectives, 5X (0.12), 10X (0.25), 20X (0.40), 50X (0.75) and 100X (0.90)
Two (Transmitted) Infinitive Plan Achromatic Objectives, 40X (0.65) and 100X (1.25)
One Pair of Extreme Widefield 10X Eyepieces
One Pair of Extreme Widefield 25X Eyepieces
One Extreme Widefield 10X Eyepiece with 0.1mm Micrometer and Cross Hair
One Set of Polarizer and Analyzer
One Set of Filters
Two (top & bottom) Light Houses
One Dust Cover
Two Spare Bulbs
Two Fuses
One Dust Cover
Immersion Oil Sample Included
Necessary Connection Cables Included
User's Microscope Manual Included

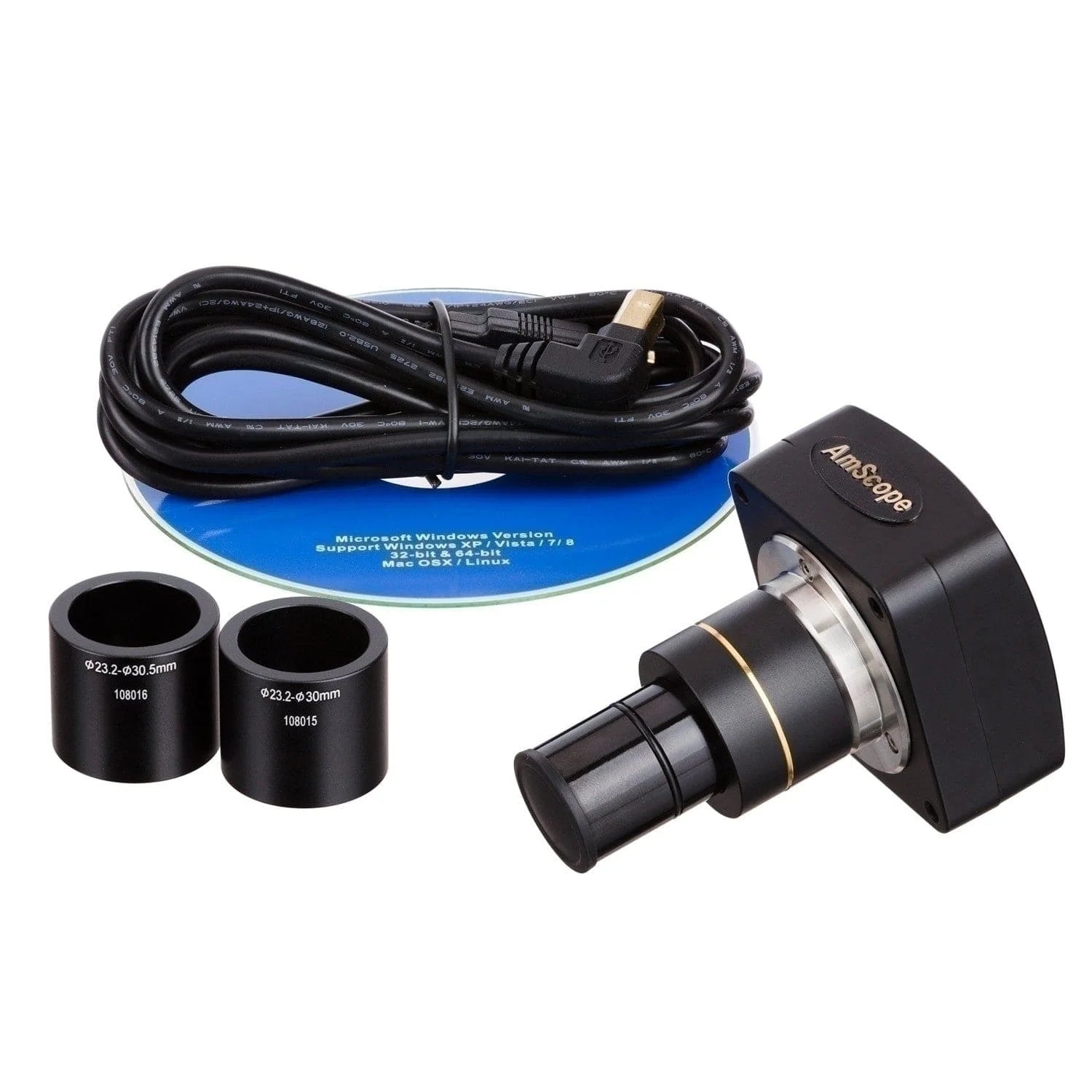

One 10MP USB2.0 Digital Camera
One 6' (1.8m) USB Cable
Two Adapters
One CD with Software, Driver and User's Instructions
Shipping Weight: 60 lbs
Package: 2 (40 + 20)
AmScope ME520T-9M Microscope
An advanced metallurgical microscopy system with reflected and transmitted illuminations
A great microscope for both reflected and transmitted applications
Built-in polarization system with polarizer and analyzer
Built-in bright/dark viewing field system with conversion slide
Quintuple nosepiece with three holes for bright field objectives and another two for darkfield
Seven infinitive Plan Achromatic objectives included
Eyepiece with 0.1mm micrometer and cross hair included
100 Watt halogen reflected EPI-illumination system
100 Watt halogen transmitted illumination system
EPI-illumination filters included
Photo/video capability with 23mm universal/standard photo port
Fully coated optical system with high resolution
30 degree inclined 360 degree rotatable trinocular Siedentopf head
Nine levels of metallurgical magnification, 50X, 100X, 125X, 250X, 200X, 500X, 1250X, 1000X & 2500X
Three levels of transmitted (biological) magnification, 400X, 1000X & 2500X
Co-axial coarse & fine focusing system
Two sets of eyepiece included
Large mechanical stage with stain resistant finish
Low position stage traveling controls
Full optical glass elements
Precise ground glass lens
All metal mechanical parts
Coaxial coarse and fine focusing
Dual focusing control knobs
Focusing tension control mechanism
30 degree inclined 360 degree rotatable trinocular head
Adjustable interpupillary distance
Adjustable diopters on both eye tubes
Solid metal frame construction with stain resistant enamel finish
Spare bulb, fuse, bottle of immersion oil, and dust cover included
Manufactured under ISO 9001 quality control standards
Excellent five (5) year factory warranty
Head: 30 degree inclined trinocular
Eyepieces: WF10X/22 and WF25X/9
Nosepiece: quintuple nosepiece - 3 holes for bright field objectives and 2 holes for dark field objectives
Objectives: infinitive Plan Achromatic objectives, 5X/0.12, 10X/0.25, 20X/0.40, 50X/0.75 & 100X/0.90, for metallurgical applications and infinitive Plan Achromatic objectives, 40X/0.65 & 100X/1.25, for biological applications
Polarization System: built-in polarizer and analyzer
Bright/Dark Viewing Field System: built-in conversion slide for bright/dark field illumination
Diaphragm: Epi-illuminator with Iris aperture diaphragm and iris field diaphragm
Stage: double layer mechanical stage with size 185X142mm
Illumination Systems: 24V 100W T-H lamp for metallurgical applications (intensity adjustable, lamp centering adjustable) and built-in 24V 100W T-H lamp for biological applications (intensity adjustment)
Collector: centering adjustable Kohler collector with field iris diaphragm
Vertical Photo/Video Port: 23mm universal/standard photo tube (100%-0% or 20%-80%)
Power Supply: Wide Band, CE certified
Image Sensor: Micron (color)
Sensor Type: CMOS
Sensor Size: 1/2.3"
Pixel Size: 1.67µm
Resolution: 10.0MP
Frame Rate: 30 fps @ 640x480, 15 fps @ 1280x1024, 2.5fps @ 3856x2764
Sensitivity: 0.34V/lux-sec (550 nm)
Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX
One Trinocular Microscope Siedentopf Head
One Microscope Body with Frame, Stage, Base and EPI & Transmitted Illumination System
Five (EPI) Infinitive Plan Metallurgical Objectives, 5X (0.12), 10X (0.25), 20X (0.40), 50X (0.75) and 100X (0.90)
Two (Transmitted) Infinitive Plan Achromatic Objectives, 40X (0.65) and 100X (1.25)
One Pair of Extreme Widefield 10X Eyepieces
One Pair of Extreme Widefield 25X Eyepieces
One Extreme Widefield 10X Eyepiece with 0.1mm Micrometer and Cross Hair
One Set of Polarizer and Analyzer
One Set of Filters
Two (top & bottom) Light Houses
One Dust Cover
Two Spare Bulbs
Two Fuses
One Dust Cover
Immersion Oil Sample Included
Necessary Connection Cables Included
User's Microscope Manual Included
One 10MP USB2.0 Digital Camera
One 6' (1.8m) USB Cable
Two Adapters
One CD with Software, Driver and User's Instructions
Shipping Weight: 60 lbs
Package: 2 (40 + 20)
AmScope ME520T-9M Microscope
![50X-500X High-performance Upright Polarized-light Microscope]()
![50X-500X High-performance Upright Polarized-light Microscope]()
![AmScope 50X-1000X Metallurgical Microscope w Darkfield & Polarizing Features]()
![AmScope 50X-1000X Metallurgical Microscope w Darkfield & Polarizing Features]()
![OMAX 40X-1000X PLAN Trinocular Infinity Polarizing Microscope With 1.3MP Camera]()
![OMAX 40X-1000X PLAN Trinocular Infinity Polarizing Microscope With 1.3MP Camera]()
![AmScope 50X-1000X Advanced EPI Trinocular Infinity Polarizing Microscope]()
![AmScope 50X-1000X Advanced EPI Trinocular Infinity Polarizing Microscope]()
![AmScope 50X-1000X EPI Trinocular Infinity Polarizing Microscope + 5MP Camera]()
![AmScope 50X-1000X EPI Trinocular Infinity Polarizing Microscope + 5MP Camera]()
Unsure Which Microscope?
Check Out Our Buying Tips
Confused?
Our Experts Can Help Suggest The Best Microscope For Your Needs
Featured
Accu-Scope 3000 LED Microscope
$1,122.00
$936.00
Accu-Scope 3000 Digital Microscope Package
$2,368.00
$1,977.00
Accu-Scope EXC-120 LED Microscope
$771.00
$643.00
AmScope 50X-1000X Darkfield Polarizing Metallurgical Microscope + 9MP Camera
- SKU: ME520T-9M
$4,573.99
$5,488.99
This is an up-right reflected and transmitted polarizing darkfield metallurgical microscopy system. The microscope comes with a quintuple nosepiece, seven infinitive Plan objectives, a built-in polarizer & analyzer, darkfield-viewing device, and both reflected (EPI) & transmitted illuminations. It offers nine metallurgical magnification settings (50X, 100X, 125X, 250X, 200X, 500X, 1250X, 1000X & 2500X) and three more levels of transmitted magnification settings (400X, 1000X & 2500X). It is a great instrument for both metallurgical (reflected) and biological (transmitted) applications.
The 10MP digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac, there is a lite version with limited processing features.
This microscopy system is perfect for metallurgical labs and foundries for silicon wafer inspection, integrated circuit examination, production quality control, and R&D applications. It is an ideal instrument for metallurgical, mineral and crystal identification. It is also a great microscopy system for transmitted illumination applications including those in biological areas.
Features:
Specifications:
Camera Specifications:
Contents:
This is an up-right reflected and transmitted polarizing darkfield metallurgical microscopy system. The microscope comes with a quintuple nosepiece, seven infinitive Plan objectives, a built-in polarizer & analyzer, darkfield-viewing device, and both reflected (EPI) & transmitted illuminations. It offers nine metallurgical magnification settings (50X, 100X, 125X, 250X, 200X, 500X, 1250X, 1000X & 2500X) and three more levels of transmitted magnification settings (400X, 1000X & 2500X). It is a great instrument for both metallurgical (reflected) and biological (transmitted) applications.
The 10MP digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac, there is a lite version with limited processing features.
This microscopy system is perfect for metallurgical labs and foundries for silicon wafer inspection, integrated circuit examination, production quality control, and R&D applications. It is an ideal instrument for metallurgical, mineral and crystal identification. It is also a great microscopy system for transmitted illumination applications including those in biological areas.
Features:
Specifications:
Camera Specifications:
Contents:
