Name: AmScope 50X-1000X Advanced EPI Trinocular Infinity Polarizing Microscope
Brand: AmScope
SKU: PZ600TB
Price: 6673.99 USD
Availability: OutOfStock

Description

This advanced trinocular polarizing microscope comes with an extreme widefield distressed infinity Plan optical system. It has a 30W halogen Kohler transmitted light and a 50W EPI reflected halogen illuminator with blue filter set, polarizer, iris and aperture. The trinocular head inclines at 30-degree and is 360-degree rotatable. The microscope offers six magnification settings, 50X, 100X, 200X, 400X, 500X & 1000X and co-axial coarse and fine focusing system. This is a perfect microscopy system for mineral applications. It is an ideal instrument for those in mineralogy and/or geology areas.

Features :

An advanced high quality EPI infinity Plan polarizing microscope!

Perfect for the application in mineralogy and geology!

Infinity corrected Plan distressed objectives for super quality images

360-degree rotatable stage with locking control

Kohler illumination system with swing type achromatic condenser

Built-In focusable Bertrand lens on rotatable disc with centering controls

Built-in analyzer with capability for removal from optical path

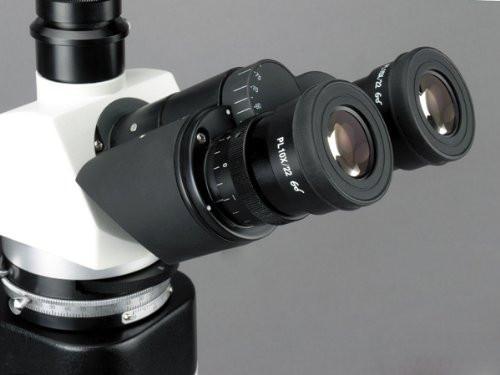

30-degree inclined 360-degree rotatable sliding trinocular head

Six magnification settings 50X, 100X, 200X, 400X, 500X & 1000X

PL high-eyepoint eyepieces included

Large round stage with stain resistant finish

Photo/video capability with 23mm universal/standard photo port

Full optical glass elements

Precise ground glass lens

All metal mechanical parts

Coaxial coarse and fine focusing

Dual focusing control knobs

Focusing tension control mechanism

Adjustable interpupillary distance

Adjustable diopters on both eye tubes

Solid metal frame construction with stain resistant enamel finish

Super widefield 30mm eyepieces

High resolution crystal clear images

Color corrected infinity optical system

Graduated in 1 degree for 90 degrees

360-degree rotatable polarizer able to be removed from optical path and lock positions

Brightfield/polarizing selectable knob for easily changing light from brightfield to polarization

Extremely widefield high eye-point 10x eyepieces with 22mm field of view (PL 10x/22mm)

High-eyepoint optics for an easy observation including eyeglass wearers

Four DIN strain-free Plan Achromatic infinity corrected objectives included: 5x, 10x, 20x (Spring), 50x (Spring)

Backward quadruple nosepiece

Objective centering screws on nosepiece for precise alignment

30-degree inclined 360-degree rotatable trinocular head

50mm - 80mm adjustable interpupillary distance (the distance between two eyes)

Oculars with adjustable diopter

Sub-stage condenser on swing with alignment controls and iris diaphragm

Rack & pinion steel gears for easy and better condenser movement

Blue filter, 45mm, for base illuminator

160mm (in diameter) large 360-degree rotatable stage with ball bearing and graduation marked every 1 degree

Stage rotation locking screw

Tension-adjustable coarse focusing

Adjustable lock ring stopper to limit coarse range to protect slides

30W intensity-variable halogen transmitted illumination

Kohler illumination with focusable field diaphragm for better and efficient illumination

Spare bulb, fuse, bottle of immersion oil, and dust cover included

Manufactured under ISO 9001 quality control standards

Excellent FIVE (5) year factory warranty

Specifications :

Eyepieces: PL10X and WH20X flat-field eyepieces with eye-guard

Objectives: infinity Plan distressed objectives: 5X, 10X, 20XS and 50XS

Head: 30-degree inclined Gemel type of trinocular head

Midst Head: build-in analyzer and Bertrand lens; external diameter 80mm; built-in analyzer; can shift out the optical way; 90 degree rotatable, a dose value of vernier 6′

Compensator: λ plate (λ ½18mm, first-order red, light path aberration: 551nm); λ / 4 plate (λ ½18mm, light path aberration: 147.3nm); Quartzes chock (12x28mm, I-IV)

Nosepiece: quadruple

Focusing System: coaxial coarse & fine controls with tension adjustment and up-moving stopper

Stage Focusing Range (up/down): 25mm; Fine focusing division: 0.002mm

Stage Rotation Range (circular): 360-degree rotatable circular worktable, a dose value of mark 1, a dose value of vernier 6'

Condenser: NA1.2/0.22 swing type achromatic condenser

Polarizer: 360 degree rotatable vibration; can shift out the optical way

Color Filter: blue

Camera/Video Port: 23mm universal/standard photo port

Transmission Illumination: Kohler illuminator systems, 30W/6V brightness-adjustable halogen lamp

Reflection Illumination: 50W/12V halogen reflected illuminator with blue filter set, polarizer, iris and aperture

Power Supply: 90V-240V fluctuate of voltage

Packing List :

One Extreme Widefield Infinity Plan Trinocular Microscope Siedentopf Head

One Microscope Body Frame with Round Stage and EPI & Transmitted Illumination

One Pair of Extreme Widefield PL10X Plan Eyepieces

One Pair of Extreme Widefield WH20X Eyepieces

Four Infinity Plan Distressed Objectives: 5X, 10X, 20XS and 50XS

One Set of Blue Filter, Polarizer, Iris and Aperture

One Kohler Condenser

Two Spare Halogen Bulbs

One Power Cord

One Dust Cover

User's Manual

Shipping Weight: 50 lbs

Package: 2 (28 + 22)

AmScope PZ600TB Microscope
