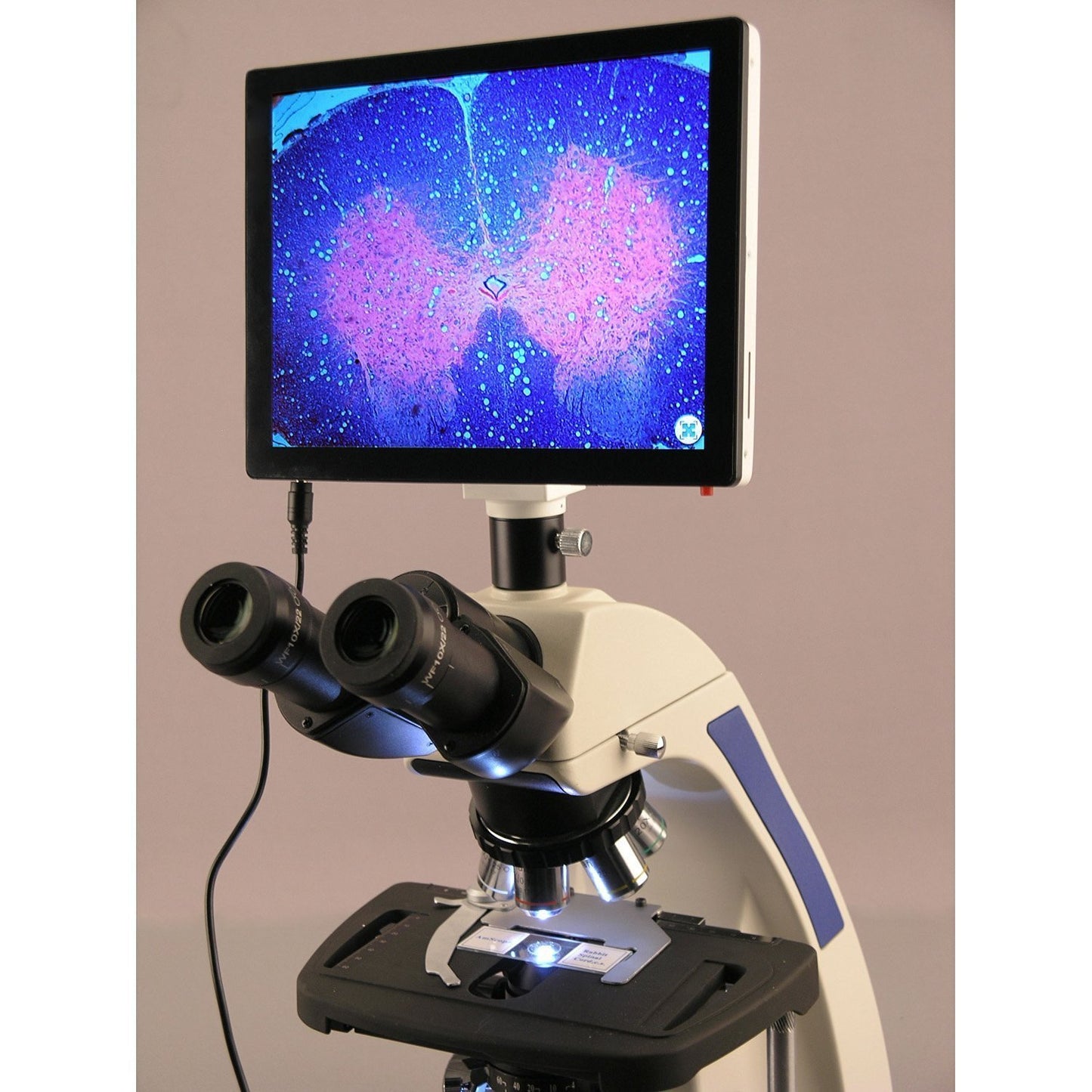

AmScope 40X-2500X Infinity Plan Laboratory Compound Microscope with LCD Touch Pad Screen

AmScope 40X-2500X Infinity Plan Laboratory Compound Microscope with LCD Touch Pad Screen



Regular price $1,607.99
Regular price $1,929.99 Sale price $1,607.99
Sale Sold out
Quote Request
AmScope 40X-2500X Infinity Plan Laboratory Compound Microscope with LCD Touch Pad Screen
Got Questions? Why Choose Us? View full details


This brand new professional trinocular compound microscope comes equipped with an infinity Plan optical system and offers advanced features as well as research grade performance. Its crystal clear optical and precise mechanical systems promise high quality performances for advanced applications. Also included is our unique 9.7" true color LCD screen and 5MP camera system, allowing you to view your sample in real time without straining your eyes! The backward nosepiece design allows spacious room for convenient operation. This microscope has four high quality Plan Achromatic objectives (4X, 10X, 40X, 100X), two pairs of extreme widefield 10X and 25X focusable eyepieces, a Kohler illumination system, a 30-degree incline on the ocular tubes for comfortable viewing, 360-degree swiveling, compensation-free trinocular head, a coaxial coarse & fine focusing system, and a 3D mechanical stage. It provides six levels of magnification: 40X, 100X, 250X, 400X, 1000X & 2500X. It is an ideal instrument for advanced researches.

Features :

  • Infinity Corrected Optical System with High Resolution
  • 9/7" True Color LCD Touch Screen Display
  • USB capable, SD Card Storage Expansion Bay, and HDMI Output
  • Can be connected via Wi-Fi and Bluetooth to a PC
  • Fully Coated Optics with Crystal Clear & Sharp Images
  • Precise Mechanical Control System
  • Reversed Nosepiece Design
  • Kohler Illumination System with Field Diaphragm for Lighting Control
  • 30-Degree Inclined, 360-Degree Swiveling, Compensation Free Trinocular Head
  • Six Magnification Levels: 40X, 100X, 250X, 400X, 1000X, 2500X
  • Intensity-Variable Transmitted LED Lighting System
  • Abbe Condenser with Iris Diaphragm and Swing-Out Filter Holder
  • Rack and Pinion Adjustment for Condenser
  • Low Position Coaxial Stage Movement Controlling Knobs
  • Dual Side Coaxial Coarse and Fine Focusing Control
  • Adjustable Interpupillary Distance
  • Adjustable Diopter on Eyepieces
  • Durable Cast Alloy Frame with Stain Resistant Enamel Finish
  • Five Infinity Plan Objectives Included
  • Two Pairs of Extreme Widefield Eyepieces Included
  • Quadruple, Reversed, Extra-Large Nosepiece with Wide, Knurled Grip for Easy Operation
  • Large Double Layer Mechanical Stage with Stain Resistant Coating
  • Upward Stage Limit Stop to Protect Objectives and Slides
  • Manufactured under ISO 9001 Quality Control Standards
  • Excellent Five (5) Year Factory Warranty

    Specifications :

  • Optical System: infinity corrected
  • Nosepiece: reversed, ball bearing quadruple
  • Head: gemel type trinocular head, 30-degree inclined
  • Eyepiece: high eye-point eyepieces, PL10X22mm, 10X9mm
  • Objectives: infinity plan objective 4X, 10X, 40X (spring), 100X (spring, oil)
  • Focusing: low position coaxial focus system
  • Focusing Range: 1-3/16" (30mm)
  • Interpupillary Adjustment Range: 2-3/16" - 3" (55-75mm)
  • Mechanical Tube Length: 6-5/16" (160mm)
  • Mechanical Stage: 8.5" x 5.9" (216mm x 150mm)
  • Stage Traveling Range: 2.9" x 2" (75x50mm)
  • Focusing Rang: 0.95" (24mm)
  • Division of Fine Focusing: 0.00003935" (0.001mm)
  • Illuminator: Built-in Kohler LED illumination system
  • Condenser: N.A. 1.25/0.22 swing achromatic condenser
  • Illumination: Kohler, LED
  • Power Supply: 90V-240 wide voltage, CE certified
  • 9.7" True Color LCD TouchPad Display
  • Runs on Android 4.2
  • Supports USB, SD Cards (up to 32gb), and HDMI Outputs
  • Wi-Fi & Bluetooth Enabled
  • 15 FPS @ 1024x768
  • 1/2.5" (4:3) 5M Pixel Color CMOS
  • Built in measurement capabilities
  • Weight: 30 lbs

    Packing List :

  • 1 Trinocular Compensation-Free Head
  • 1 Microscope Body with Frame, Base, and Kohler Illumination System
  • 1 Unique 9.7" true color LCD screen and 5MP camera system
  • 4 High Quality DIN Plan Achromatic Objectives: 4X, 10X, 40X and 100X
  • 2 Extreme Widefield PL10X Eyepieces
  • 2 Extreme Widefield 25X Eyepieces
  • 1 Dust Cover
  • 1 Immersion Oil
  • 1 User's Manual
  • AmScope T720C-TP
