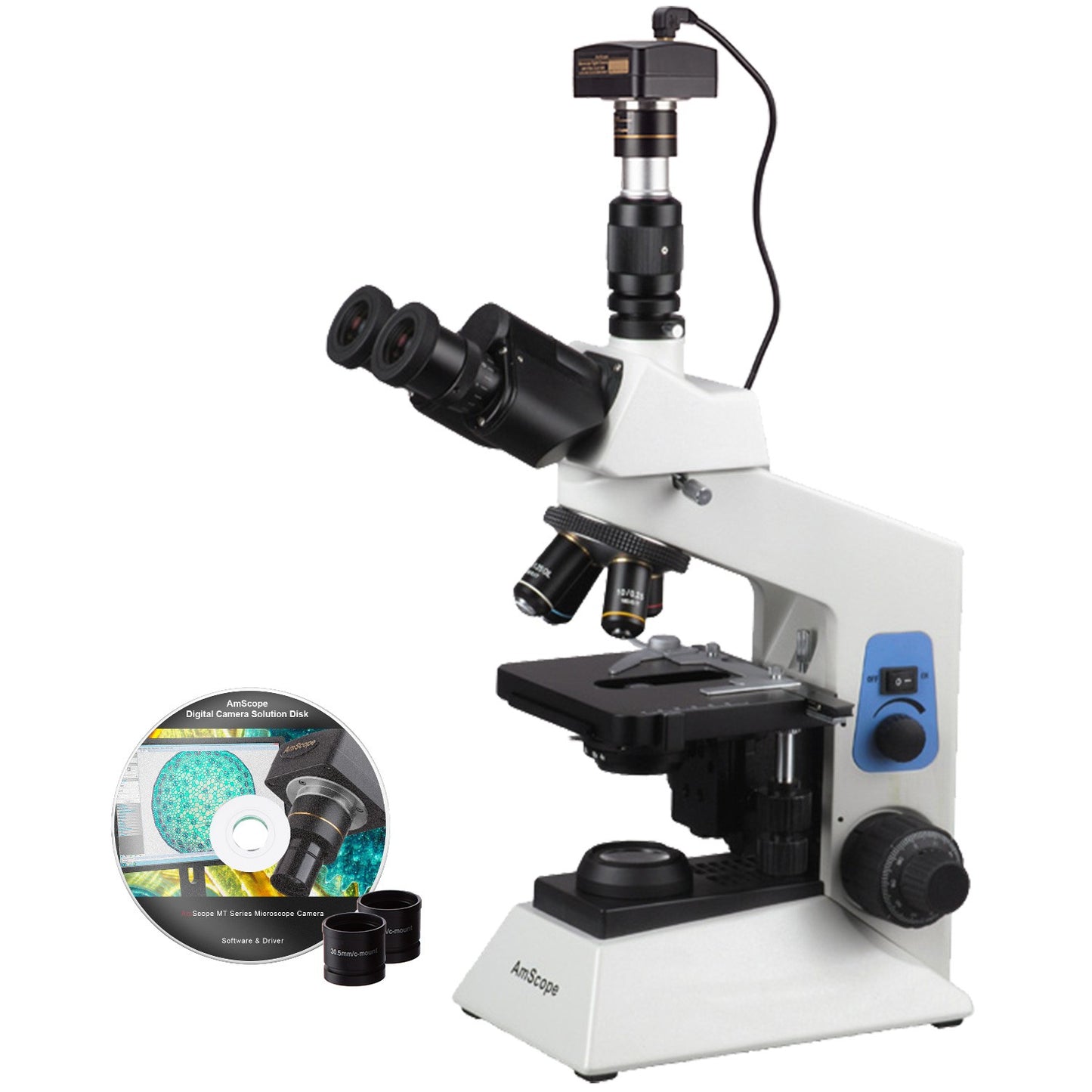

AmScope 40X-2000X Biological Research Microscope with 5MP Camera

AmScope 40X-2000X Biological Research Microscope with 5MP Camera

  • SKU: T580B-5M
$825.99 $990.99
Quote Request

This professional trinocular microscope boasts four unique features no other microscope dealer can claim! Different from most other microscopes on the market, the T580B is remarkable because it features 1) crystal clear optical system, 2) simultaneous viewing through the photo port and eyepieces, and 3) an adjustable simul-focal trinocular port. The T580B's adjustable trinocular port creates a simul-focal optical system by allowing the image system attached to the photo port and the image in the eyepieces to be in focus at the same time. Traditional microscopes on the market allow you to see through either the trinocular port or eyepieces, forcing you to switch between the port and eyepieces. Because their trinocular port is not designed to be simul-focal with the microscope optical system, you have to conduct re-focusing after each "switch". The T580B, however, has simultaneous viewing and simul-focal trinocular port so that these "switch" and "re-focusing" are no longer necessary. Especially handy for teaching demonstrations, clinical examinations and laboratory applications, these features allow your students or colleagues to view crystal clear images simultaneously while you work through the eyepieces. In addition, the T580B's industry standard 23mm photo port can be converted into a C-Mount port by putting on the C-mount adapter, part CPC sold separately, allowing you to attach a microscope digital camera or a video system on the market. This microscope comes with high point plan eyepieces, high contrast objectives, 30 degree inclined 360 degree swiveling trinocular head, 3D mechanical stage, and intensity-variable halogen illumination. It offers eight magnifications: 40X-80X-100X-200X-400X-800X-1000X-2000X. Its trinocular port enables to add photo or video capability. This microscope is versatile and is ready for various accessories and attachments for advanced features.

The 5MP USB2.0 digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features

Features :

  • A First-Class High Quality Laboratory Compound Microscope for Professional Applications
  • High Eyepoint Plan Eyepieces
  • High Contrast Objectives
  • Fully Coated Optical System with High Resolution
  • Crystal Clear Sharp Images
  • Precise Mechanical System
  • Ready for Various Accessories and Attachments for Advanced Applications
  • 30 degree Inclined, 360 degree Swiveling Compensation Free Trinocular Head
  • Eight Magnification Levels: 40X-80X-100X-200X-400X-800X-1000X-2000X
  • Intensity-Variable Transmitted Halogen Lighting System
  • Abbe Condenser with Iris Diaphragm and Swing-Out Filter Holder
  • Color Filter Included
  • Rack and Pinion Adjustment for Condenser
  • Large 3-D Double Layer Mechanical Stage
  • Low Position Coaxial Stage Movement Control Knobs
  • Dual Side Coaxial Coarse and Fine Focusing Controls
  • Adjustable Interpupillary Distance
  • Adjustable Diopter on Ocular
  • Durable Cast Alloy Frame & Stand with Stain Resistant Enamel Finish
  • Two Sets of Wide Field Eyepieces: Wide Field 10X (18mm Field of View) and WF20X
  • Large Double Layer Mechanical Stage with Stain Resistant Finish
  • Upward Stage Stopper to Protect Objectives and Slides
  • Manufactured under ISO 9001 Quality Control Standard
  • Excellent Five (5) Year Factory Warranty
  •

    Specifications :

  • Nosepiece: ball bearing quadruple
  • Interpupillary Adjustment Mechanisms: 2-3/16" - 3-0" (55 - 75mm)
  • Mechanical Tube Length: 6-5/16" (160mm)
  • Head: trinocular anti-mold viewing head inclined at 30 degree
  • Wide-Field Eyepiece: Plan high eyepoint WF10X, WF20X
  • Objectives: high contrast 4X, 10X, 40X (spring), 100X (spring, oil)
  • Dual Stage Dimensions: 5-1/2"x 5-3/16" (140x132mm)
  • Stage Traveling Range: 3"x 2" (76x50mm)
  • Focusing Range: 1-1/8" (28mm)
  • Division of Fine Focusing: 0.0000787" (0.002mm)
  • Abbe Condenser: NA=1.25 with rack and pinion focusing control
  • Illumination: halogen lamp, 6V/20W
  • Wide Power Supply: 85V-265V, CE certified
  • Contamination: 2 (refer to IEC664)
  •

    Camera Specifications:

  • Sensor: Aptina MT9P001
  • Sensor Type: CMOS
  • Sensor Size: 5.7x4.28mm
  • Pixel Size: 2.2
  • Resolution: 5.1MP
  • Frame Rate: 5@2592x1944, 18@1280x960, 60@640x480
  • Sensitivity: 0.53 V/lux-sec
  • Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux
  •

    Packing List :

  • One Trinocular Compensation-Free Head
  • One Microscope Body with Frame, Base and Halogen Illumination System
  • Four High Contrast Objectives, 4X, 10X, 40X and 100X
  • Two Pairs of Plan High Eyepoint Eyepieces, WF10X and WF20X
  • Blue Filter
  • One Dust Cover
  • One Power Cord
  • One 6V/20W Spare Halogen Bulb
  • Two Spare Fuses
  • 5MP USB Camera

  •
