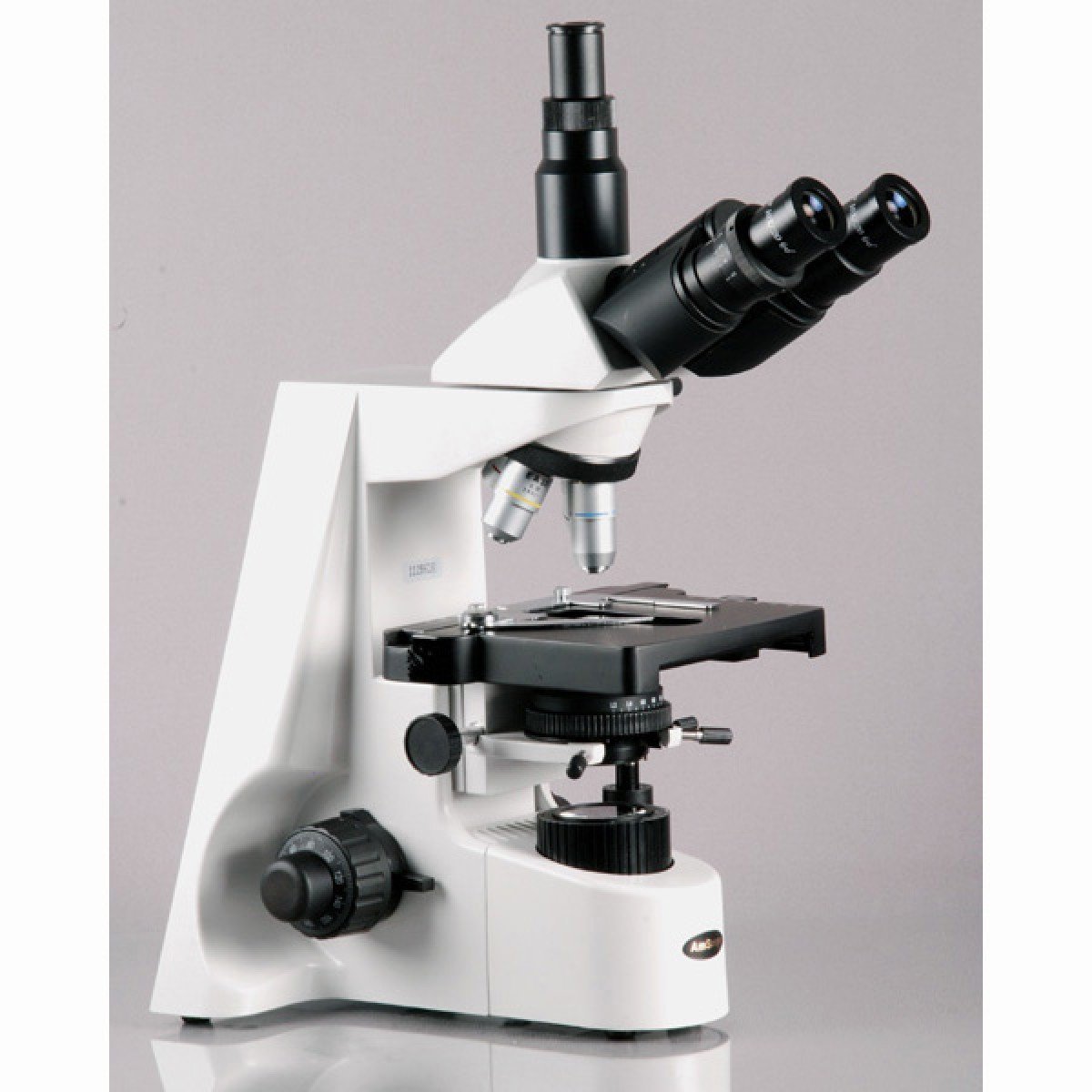

AmScope 40X-1500X Professional Infinity Plan Phase Contrast Kohler Trinocular Microscope

AmScope 40X-1500X Professional Infinity Plan Phase Contrast Kohler Trinocular Microscope

|

SKU: T690A-PCT200INF-PL

$1,728.99
$2,074.99 $1,728.99
Sale Sold out
Quote Request
AmScope 40X-1500X Professional Infinity Plan Phase Contrast Kohler Trinocular Microscope
Got Questions? Why Choose Us? View full details

Description

This is a brand new professional phase contrast trinocular compound microscope with superior extreme widefield infinity Plan Achromatic optical system, offering crisp clear images. It comes with a 30 degree inclined 360 degree swiveling trinocular Siedentopf head, extreme widefield eyepieces, infinity Plan objectives, coaxial coarse & fine focusing, 3-D mechanical stage, and Kohler halogen illumination with wide band power supply (from 85V to 230V). The backward nosepiece configuration allows spacious room for convenient operation and comfortable observation. The trinocular port uses the third port for camera capabilities giving you the remaining two ports to view your specimen. This microscope provides eight phase contrast magnification powers (40X, 60X, 100X, 150X, 400X, 600X, 1000X and 1500X) and eight levels of brightfield magnification (40X, 60X, 100X, 150X, 400X, 600X, 1000X and 1500X). It is a superb instrument for clinic offices, veterinary labs and research laboratories.

Features:

  • An Affordable Infinity Plan Optical Microscopy System with Koehler Illumination!
  • Backward Nosepiece Allowing Spacious Room for Comfortable Observation
  • Large Mechanical Stage with Two-microslide Specimen Clamp
  • Humanized Configuration Design Providing Comfortable Operation
  • Front Open Light house Framework for Easy Access to Light Bulb
  • Fully Coated Optical System with High Resolution
  • Crystal Clear Sharp Images
  • Precise Mechanical Control System
  • Backward Nosepiece Design for Spacious Operation Room
  • Koehler Illumination System with Field Diaphragm for Lighting Control
  • 30 Degree Inclined, 360 Degree Swiveling, Trinocular Siedentopf Head
  • Eight Phase Contrast Magnification Powers: 40X, 60X, 100X, 150X, 400X, 600X, 1000X and 1500X
  • Eight Brightfield Magnification Levels: 40X, 60X, 100X, 150X, 400X, 600X, 1000X and 1500X
  • Intensity-Variable Transmitted Halogen Lighting System
  • Abbe Condenser with Iris Diaphragm and Swing-Out Filter Holder
  • Rack and Pinion Adjustment for Condenser
  • Low Position Coaxial Stage Movement Control Knobs
  • Dual Side Coaxial Coarse and Fine Focusing Control
  • Adjustable Interpupillary Distance
  • Adjustable Diopter on Ocular
  • Durable Cast Alloy Frame Stand with Stain Resistant Enamel Finish
  • Four Infinity Plan Objectives: 4X, 10X, 40X, 100X
  • Four Infinity Plan Phase Contrast Objectives: 4X, 10X, 40X, 100X
  • Two Sets of Wide Field Eyepieces: Wide Field 10X (22mm Field of View) and 15X
  • Large Double Layer Mechanical Stage with Stain Resistant Finish
  • Upward Stage Stopper to Protect Objectives and Slides
  • Compatible with a Wide Range of Optional Accessories, Including Phase Contrast and Darkfield Condensers
  • Manufactured under ISO 9001 Quality Control Standards
  • Excellent Five (5) Year Factory Warranty
  • Unbeatable Low Price Guaranteed or Difference Back!
  • Satisfaction Guaranteed or Your Money Back!

    •

    Specifications:

  • Optical System: infinity corrected
  • Nosepiece: backward, ball bearing quadruple
  • Head: Siedentopf trinocular head, 30-degree inclined
  • Eyepiece: WH10X/22mm and WH15X
  • Phase Contrast Objective: infinity plan objective 4X, 10X, 40X (spring), 100X (spring, oil)
  • Objective: infinity Plan Achromatic 4X, 10X, 40X (spring), 100X (spring, oil)
  • Focusing: low position coaxial focus system
  • Interpupillary Adjustment Mechanisms: 2-3/16" - 3-0" (55 - 75mm)
  • Mechanical Stage: 7.1"x5.9" (180mm ? 150mm)
  • Stage Traveling Range: 3"x 2" (75x50mm)
  • Division of Fine Focusing: 0.0000787" (0.002mm)
  • Condenser: N.A. 1.25, swing with iris diaphragm filter
  • Illumination: Koehler, halogen 12V/20W
  • Power Supply: 85V-230V wide voltage, CE certified

    •

    Packing List:

  • One Trinocular Siedentopf Head
  • One Microscope Body Frame with Base and Koehler Illumination System
  • Four High Quality Infinity Plan Objectives: 4X, 10X, 40X and 100X
  • Two Pairs of Extreme Widefield Eyepieces: WH10X and WH15X
  • One Power Cord
  • Three Color Filters
  • One Dust Cover
  • One Spare Halogen Bulb
  • One Spare Fuse
  • Immersion Oil
  • User's Manual
  • Four Infinity Plan Phase-contrast Objectives: 4X, 10X, 40X and 100X
  • One phase-contrast turret condenser
  • One CT lens
  • AmScope T690A-PCT200INF-PL Microscope
