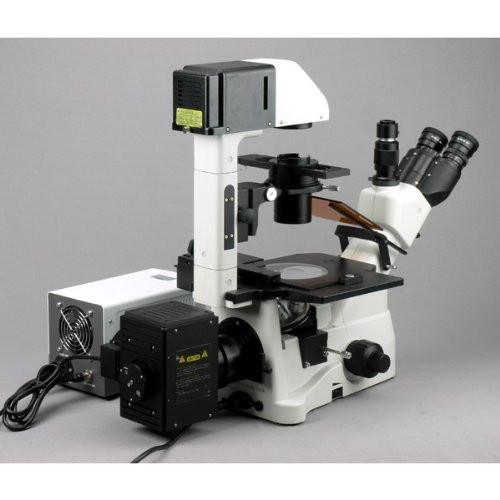

AmScope 40X-1500X Inverted Phase-Contrast + Fluorescence Microscope with 5MP Global-shutter Low-light Camera

AmScope 40X-1500X Inverted Phase-Contrast + Fluorescence Microscope with 5MP Global-shutter Low-light Camera

This inverted fluorescence microscope provides both phase contrast and fluorescence. The microscope comes complete with multiple objectives listed below. The 5.0 M.P. global shutter CMOS...

$12,154.99
Request Quote
Add to wishlist

This inverted fluorescence microscope provides both phase contrast and fluorescence. The microscope comes complete with multiple objectives listed below. The 5.0 M.P. global shutter CMOS camera captures excellent fluorescence images.

Features:



  • A high quality professional phase contrast tissue culture microscope!
  • A research-grade inverted microscopy system!
  • Nine brightfield magnification settings, 40X, 100X, 200X, 250X, 400X, 500X, 600X, 1000X & 1500X
  • Six phase contrast magnification powers, 100X, 200X, 250X, 400X, 500X & 1000X
  • Eight high quality bright field and phase contrast objectives
  • Two pairs of high eye-point PLAN eyepieces
  • Color corrected infinity optical system (CSIS)
  • Gemel type of trinocular head, 45 degree inclined
  • Fully coated optical system with high resolution
  • Crystal clear sharp images
  • 90-240V halogen illumination system
  • Upright photo port for photographic/video capability
  • Movable N.A. 0.3 condenser
  • Adjustable phase center
  • Above-stage condenser with moving and focusing knobs and swing-out filters
  • Stage moving-stop mechanism to protect slides and objectives
  • Diopter adjustment on ocular
  • Top light house with filters
  • Spare bulb, fuse and dust cover
  • Extra large double-layer mechanical stage with stain resistant finish
  • Low position coaxial stage movement control knobs
  • Coaxial coarse fine focusing with CA knob tension control
  • 30watt Kohler halogen illumination system with variable brightness
  • Dual side mounted focusing controls
  • Full optical glass elements
  • Precise ground glass lenses
  • All metal mechanical components
  • Adjustable interpupillary distance
  • Rugged cast alloy frame and stand with stain resistant enamel finish
  • Manufactured under ISO 9001 quality control standard
  • Excellent five (5) year factory warranty
  •

    Specifications :

    Optical Color corrected infinity optical system (CSIS)
    Head Gemel type of trinocular head, 45 degree inclined
    Interpupillary 2"-3" (50-76mm)
    Eyepiece PL10X/22mm high-eye point PLAN eyepieces
    PL25X/9mm high-eye point PLAN eyepieces
    Nosepiece Reversed quintuple nosepiece
    Objective Infinite long work distance PLAN achromatic objective: LWD PL4X,10X,20X, 40X, 60X
    Infinite long work distance PLAN phase-contrast objective: LWD PH10X,20X,40X
    Focus System Fine and coarse coaxial focusing, torque adjustment for coarse
    Working distance of every circle: coarse focus: 38mm, fine focus: 0.2mm, precision 0.002mm
    Total working distance: upward 6.5mm & downward 2.5mm from focus position (1.5mm above stage)
    Stage Dimension: 6-1/4"(W)x9-7/8"(L)(160x250mm); ready to be extended for extra space by the optional stage extension boards
    Dimemsion of stage extension board: 2-3/4"(W)x7"(L)(70x180mm)
    Mechanical Stage Traveling range: 4-3/4"(X-direction) x 3-1/8"(Y-direction) (120x80mm)
    Low-position coaxial focusing
    Petri dish holder
    Transmitted Illumination 90-240V wide voltage power supply, 6V/30W Halogen bulb; pre-centered, adjustable brightness
    Super large working distance condenser NA=0.3, WD=72mm
    Reflected fluorescence illumination B,G filter blocks, with centering view field diaphragm and sliding filter preventing board
    Mercury light house Centering mercury bulb 100W, with adjusting reflected lens
    Fluorescence power supply 100-240V input AC power supply
    Light house dimensions: 9-1/4"(L)x5-1/4"(W)x6-1/8"(H) (236x134x156mm)
    Filter block Module Specification Fluorescence dyes
    B1 Excitation
    Dichroic
    Emission
    475AF40
    505DRLP
    535AF45
    EGFP, FITC, Cy2, AlexaFluor488, DIO, Fluo-4
    G1 Excitation
    Dichroic
    Emission
    560AF55
    595DRLP645AF75
    Texas Red, Texas Red-X, Cy3.5, Mito Tracker Red



    Camera Specifications:

  • Sensor: Sony IMX264 (color)
  • Sensor Type: CMOS
  • Sensor Size: 2/3" (11.1mm diagonal)
  • Pixel Size: 3.45µm x 3.45µm
  • Sensor Pixels: 5.0MP (2448 x 2048)
  • Sensitivity: 1146mv (1/30s)
  • Max Framerates: 88fps @ 1224x1024, 35fps @ 2448x2048
  • Binning: 1x1
  • Exposure Time: 0.1ms - 15s
  • Connectivity: USB 3.0
  • Reduction Lens: 0.75X C-mount to 23mm
  • Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux
  • Software Specifications:

  • OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
  • Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port
  • AmScope IN480TC-FL-5MG3
  •
