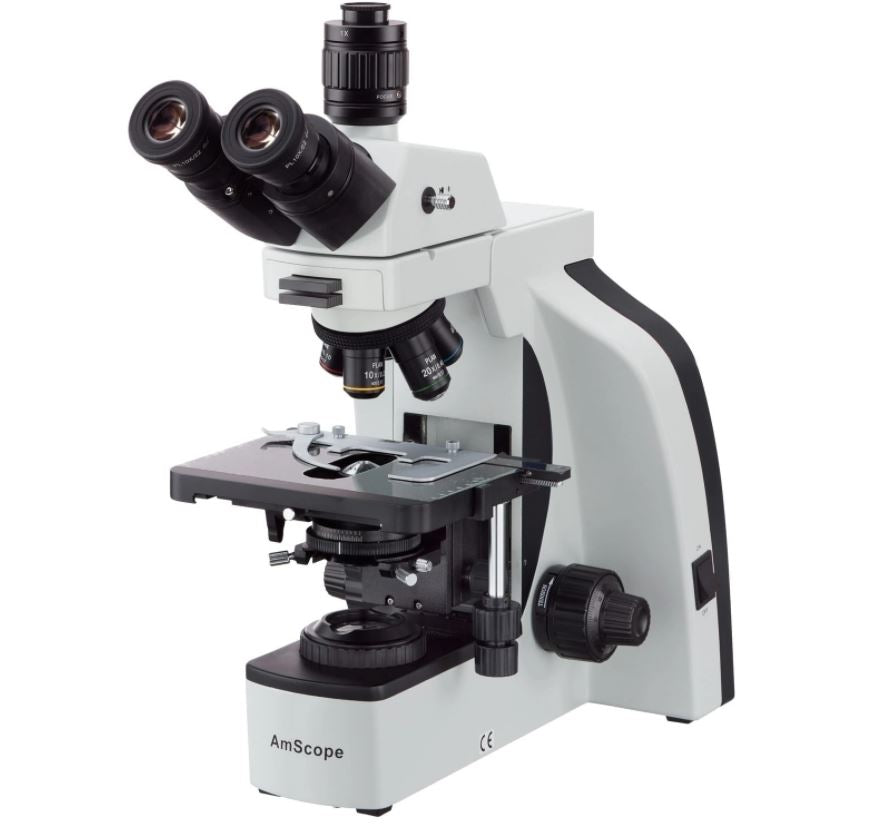

AmScope 40x - 1000x Advanced Research Grade Microscope

AmScope 40x - 1000x Advanced Research Grade Microscope

This advanced research grade microscope features LED illumination with full koehler illumination and infinity corrected optics. The microscope comes with 10x W.F. eyepices and Plan...

$2,039.99
Request Quote
Add to wishlist

This advanced research grade microscope features LED illumination with full koehler illumination and infinity corrected optics. The microscope comes with 10x W.F. eyepices and Plan Achromatic 4x, 10x, 20x, 40x, 100x Oil objectives. The microscope comes camera ready with a trinocular head.

Specifications:



  • Optical System: Infinity-corrected
  • Head Type: trinocular
  • Interpupillary Adjustment: compensation-free gemel 48-75mm
  • Ocular Tubes: 30° incline, 30mm lens-mount
  • Eyepieces: plan 10X FN22 high-eyepoint
  • Nosepiece: reverse quintuple
  • Objective Lenses: infinity-corrected plan-achromatic 4X, 10X, 20X, 40X (spring), 100X (spring, oil)
  • Stage: double-layer mechanical 185mm x 165mm
  • X-Y Translation Range: 80mm x 55mm
  • Sub-stage Condenser-holder: rack-and-pinion, centerable
  • Sub-stage Condenser: NA1.2/0.22 brightfield, swing
  • Field Lens: Koehler-compatible with diaphragm
  • Transmitted Illumination: 3W LED
  •

    Contents:



  • one microscope body
  • one trinocular head
  • one photo-port
  • one pair eyepieces: 10X
  • five objective lenses: 4X, 10X, 20X, 40X, 100X
  • one AC cord
  • one dust-cover
  •

    This advanced research grade microscope features LED illumination with full koehler illumination and infinity corrected optics. The microscope comes with 10x W.F. eyepices and Plan Achromatic 4x, 10x, 20x, 40x, 100x Oil objectives. The microscope comes camera ready with a trinocular head.

    Specifications:



  • Optical System: Infinity-corrected
  • Head Type: trinocular
  • Interpupillary Adjustment: compensation-free gemel 48-75mm
  • Ocular Tubes: 30° incline, 30mm lens-mount
  • Eyepieces: plan 10X FN22 high-eyepoint
  • Nosepiece: reverse quintuple
  • Objective Lenses: infinity-corrected plan-achromatic 4X, 10X, 20X, 40X (spring), 100X (spring, oil)
  • Stage: double-layer mechanical 185mm x 165mm
  • X-Y Translation Range: 80mm x 55mm
  • Sub-stage Condenser-holder: rack-and-pinion, centerable
  • Sub-stage Condenser: NA1.2/0.22 brightfield, swing
  • Field Lens: Koehler-compatible with diaphragm
  • Transmitted Illumination: 3W LED
  •

    Contents:



  • one microscope body
  • one trinocular head
  • one photo-port
  • one pair eyepieces: 10X
  • five objective lenses: 4X, 10X, 20X, 40X, 100X
  • one AC cord
  • one dust-cover
  •
