AmScope 35X-90X Trinocular LED Boom Stand Stereo Microscope + 3MP Camera

This 3.5X-90X trinocular stereo zoom microscope is on a boom stand. It has a trinocular head with super widefield optics, a heavy-duty single-arm boom stand, a 54-LED ring light with dimmer, and a 3MP color digital camera. It offers crystal clear erect stereo images, 2-1/2" (65mm) super widefield of view, 26:1 large magnification zoom range, and 8" (200mm) large working distance. The high-eyepoint optical design ensures an easy and comfortable observation for all users including eyeglass wearers.

The boom stand gives your microscope the flexibility to cover a large working area. The intensity-adjustable LED ring light provides bright, even, and cool light illumination.

The digital camera captures still images and video and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended depth of focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.

This microscopy system is an ideal instrument for researchers, gemologists, engravers, collectors, and anyone in the semiconductor and electronics industries. It is also a perfect microscope for biological laboratory applications that require low heat release.

Features :

• A 3.5X-90X Continuous Zoom Magnification Microscopy System with Digital Camera on Boom Stand!

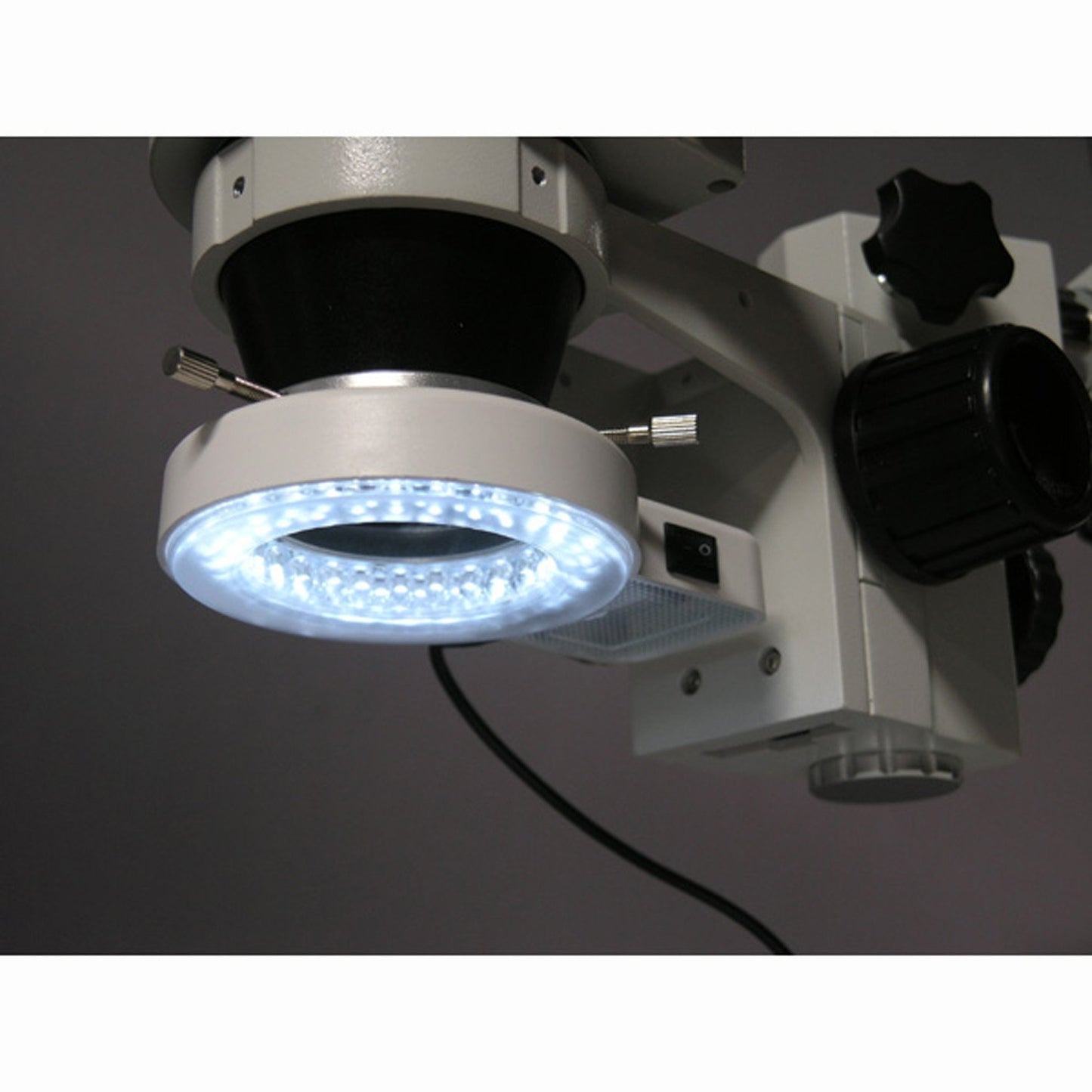

• 54-LED Bright, Even and Cool Lighting Illumination
• 45 Degree Inclined Trinocular Head with SUPER Widefield High-Eyepoint Eyepieces
• Erect Stereo Sharp Images over a SUPER Widefield of View
• Full Optical Glass Elements
• Precise Ground Glass Lenses
• High Resolution with Great Flatness and Contrast
• Crystal Clear Original True Color Images
• 30mm SUPER Widefield WF10X/20 Eyepieces
• Large Working Distance
• Accurate Alignment Ensuring Fatigue-Free Observation
• Both Ocular-Tubes with Adjustable Diopter
• Adjustable Interpupillary Distance
• Versatile Boom Stand Covering Large Working Area
• Heavy-Duty Cast Steel Stand Finished with Stain Resistant Enamel
• Rugged Solid Cast Steel Base
• All Metal Mechanical Components
• Rubber Eye-guards Included
• Mounting Adapter for LED Ring Light Included
• Camera Adapters for Fitting All Other Microscopes Included
• Manufactured Under ISO 9001 Quality Control Standard
• Excellent Five (5) Year Factory Warranty



Specifications :

• Head: 45-degree inclined 360-degree swiveling trinocular
• Eyepiece: 30mm Super widefield high-eyepoint WF10X/20
• Objective: 0.7-4.5X
• Barlow Lens: 0.5X and 2.0X
• Zoom Range: 26:1
• Diopter Adjustment: +/-5dp
• Interpupillary Distance: 2-3/16" - 2-15/16" (55-75mm)
• Working Distance: 8" (200mm)
• Widefield of View (Maximum): 2-1/2" (65mm) in diameter, super widefield
• Illumination: 54-LED
• Power input: 110-240V, 50-60HZ, Automatic Switching
• Boom Stand: 16" arm (overall length: 24"), 17" high pillar, 9" x 9" x 1-3/4" solid cast steel base
• Accessories: eye-guards
• Shipping Weight: 65 lbs
• Packages: 2



Camera Specifications:

• Sensor: Aptina AR0330 CMOS (Color)
• Sensor Type: CMOS
• Sensor Size: 1/3" (diagonal 6.0mm)
• Reduction Lens: 0.37X
• Pixel Size: 2.2µm x 2.2µm
• Resolution: 3MP, 2048 x 1536 (approx.3,200,000 pixels)
• Frame Rate: 53fps @1024x770, 28fps @2048x1534 (Multiple Speed Level)
• Sensitivity: 2v / lux-sec (550nm)
• Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux



Software Specifications:

• OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
• Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB port



Packing List :

• One Trinocular Stereo Zoom Head
• One Pair of SUPER Widefield 10X Eyepieces
• One SUPER Widefield 0.5X Barlow Lens
• One SUPER Widefield 2.0X Barlow Lens
• One Single-Arm Boom Stand with Focus Rack
• One Pair of Eye-Guards
• User's Manual for the Microscope
• One 54-LED Ring Light with Mounting Adapter
• One 3MP USB 3.0 Digital Camera with Reduction Lens
• Two Adapters
• One 6' USB Cable
• One CD with Software, Driver, and Step-by-Step User Instructions
