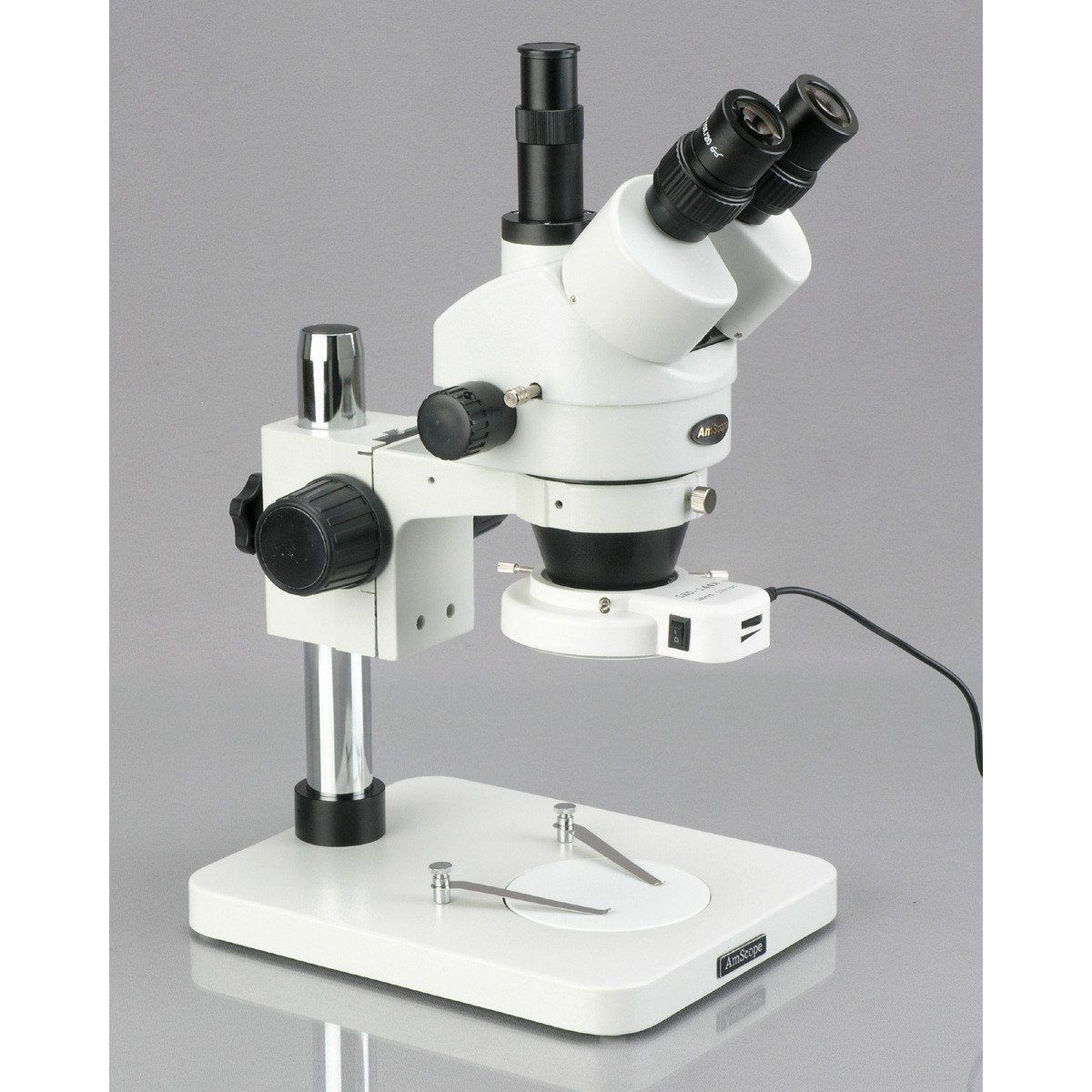

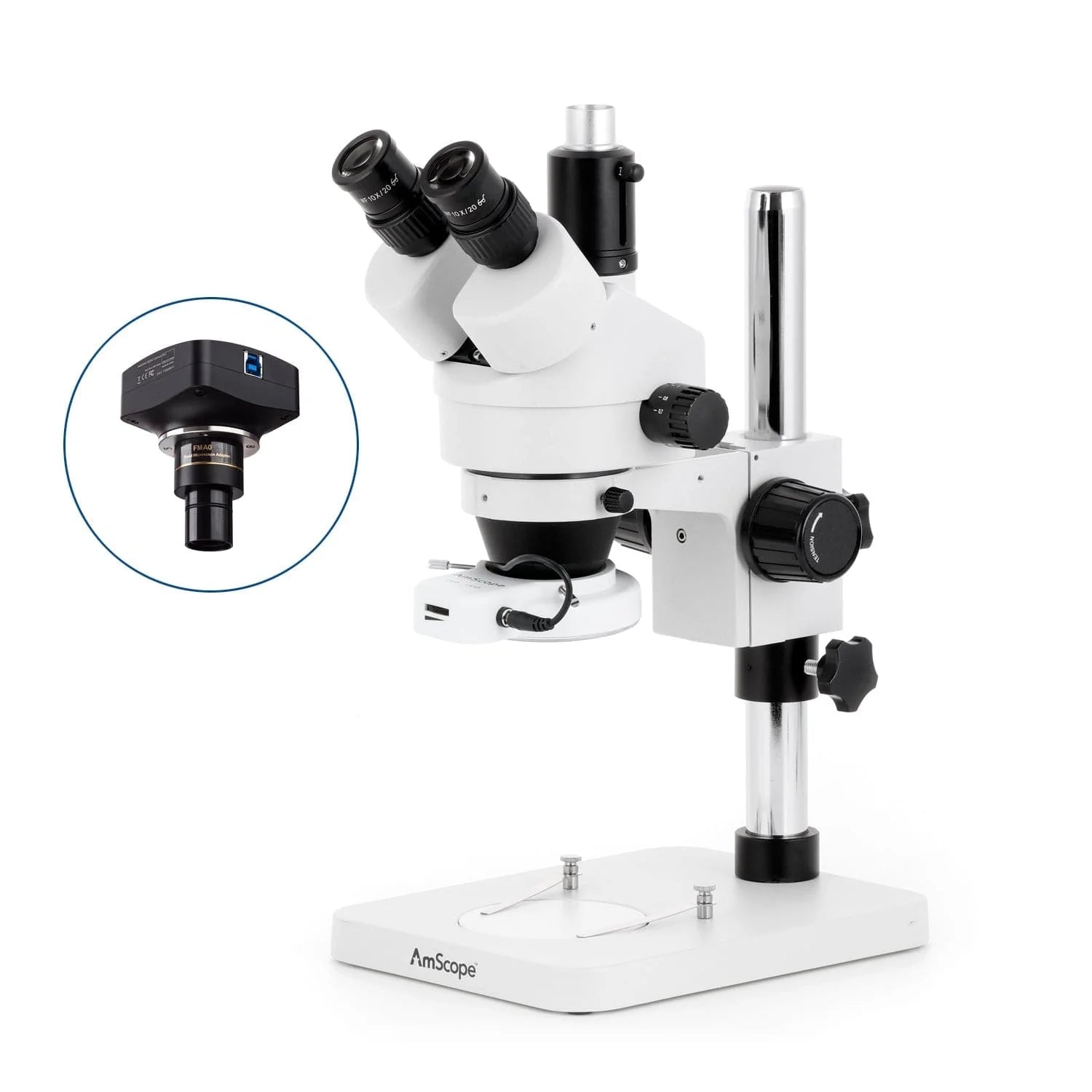

AmScope 3.5X-90X Surface Inspection 144-LED Zoom Stereo Microscope + 16MP USB3.0 Digital Camera
AmScope 3.5X-90X Surface Inspection 144-LED Zoom Stereo Microscope + 16MP USB3.0 Digital Camera
AmScope 3.5X-90X Surface Inspection 144-LED Zoom Stereo Microscope + 16MP USB3.0 Digital Camera

AmScope 3.5X-90X Surface Inspection 144-LED Zoom Stereo Microscope + 16MP USB3.0 Digital Camera

  • SKU: SM-1TSZ-144S-16M3
$859.99 $1,031.99
Request Quote

This compact stereo microscope system covers a large range of applications, while taking up very little space. The 144-LED ring-light provides bright, even lighting, and the high-resolution 16MP USB3.0 digital camera provides highly-detailed imaging capabilities, including image-capture and measurement. The super-wide-field optics provide a large field-of-view, and the zoom objective offers a large range of magnifications. The included 0.5X and 2.0X Barlow lenses increase the overall range to 3.5-90X. The switched trinocular photo-port provides separate, stable mount for the camera. The compact table-stand offers a space-saving design, with an ergonomic, tension-adjustable focusing-rack.

The digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.

This microscopy system is ideal for manufacturing-engineers, circuit-board-inspectors, and lab-technicians.

Features:

  • A perfect LED stereo inspection microscope with a 16MP color digital camera
  • Variable, cool, even and bright 144-LED ring illumination
  • 3.5X-90X expanded zoom range
  • Large working distance
  • High resolution with great flatness and contrast, giving sharp and clear images
  • Trinocular head with 45-degree inclined 360-degree swiveling eye tubes
  • 30mm SUPER widefield high-eyepoint eyepieces with a 20 mm field of view
  • Erect stereo images with a wide field of view
  • Dual eye tubes with adjustable diopters
  • Contemporary table stand
  • Accurate alignment reduces eye strain for longer periods of viewing
  • Full optical glass elements
  • Precise ground glass lenses
  • Adjustable interpupillary distance
  • Rubber eyeguards included
  • Manufactured Under ISO 9001 Quality Control Standard
  • Excellent Five (5) Year Factory Warranty
  •

    Specifications:

  • Head: 360 degree rotatable 45 degree inclined trinocular
  • Eyepiece: 30mm super widefield high-eyepoint WH10X/20MM
  • Objective Zoom Range: 0.7X-4.5X
  • Diopter Adjustment: +/- 5dp
  • Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
  • Working Distance: 4" (100mm)
  • Working Distance with 0.5X Barlow: 6.5" (165mm)
  • Working Distance with 2.0X Barlow: 1.18" (30mm)
  • Field of View: 1-1/4" (33mm) in diameter (at 7X)
  • Stand: 10" x 7-7/8" x 10.75" (254 x 200 x 275mm)
  • Round Plate: 3-3/4" (95mm) in diameter
  • Accessories: a pair of eye-guards
  • Illumination: 144-LED compact ring light
  • Power Input: 110-240V, 50-60HZ, automatic switching
  •

    Camera Specifications:

  • Sensor: Aptina (color)
  • Sensor Type: CMOS
  • Sensor Size: 6.18x4.66mm
  • Pixel Size: 1.335
  • Resolution: 16.0MP
  • Frame Rate: 26fps @ 1536x1160, 15fps @ 2320x1740, 6fps @ 4632x3488
  • Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux
  •

    Software Specifications:

  • OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
  • Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0 port for maximum speed
  •

    Packing List:

  • One Trinocular Stereo Zoom Head
  • One Pair of Super Widefield 10X Eyepieces
  • One Pillar Table Stand
  • One Focusing Rack
  • One Round Plastic Plate
  • One Pair of Eye-Guards
  • One Pair of Clips
  • One Dust Cover
  • User's Manual
  • One 2X Barlow lens
  • One 0.5X Barlow lens
  • One 144-LED Compact Ring Light
  • One 16MP USB3.0 Digital Camera with Reduction Lens
  • One 6' (1.8m) USB Cable
  • One CD with Software, Driver and User's Instructions
  • Package Dimension: 17" x 14" x 14.5"
  • Shipping Weight: 20 lbs
  • AmScope SM-1TSZ-144S-16M3
