AmScope 3.5X-90X Circuit Zoom Stereo Microscope + 144 LED Light + 5MP Digital Camera

AmScope 3.5X-90X Circuit Zoom Stereo Microscope + 144 LED Light + 5MP Digital Camera


SKU: SM-4TZ-144-5MT

Regular price $890.99
Regular price $1,068.99 Sale price $890.99
Sale Sold out
Quote Request
AmScope 3.5X-90X Circuit Zoom Stereo Microscope + 144 LED Light + 5MP Digital Camera
Got Questions? Why Choose Us? View full details

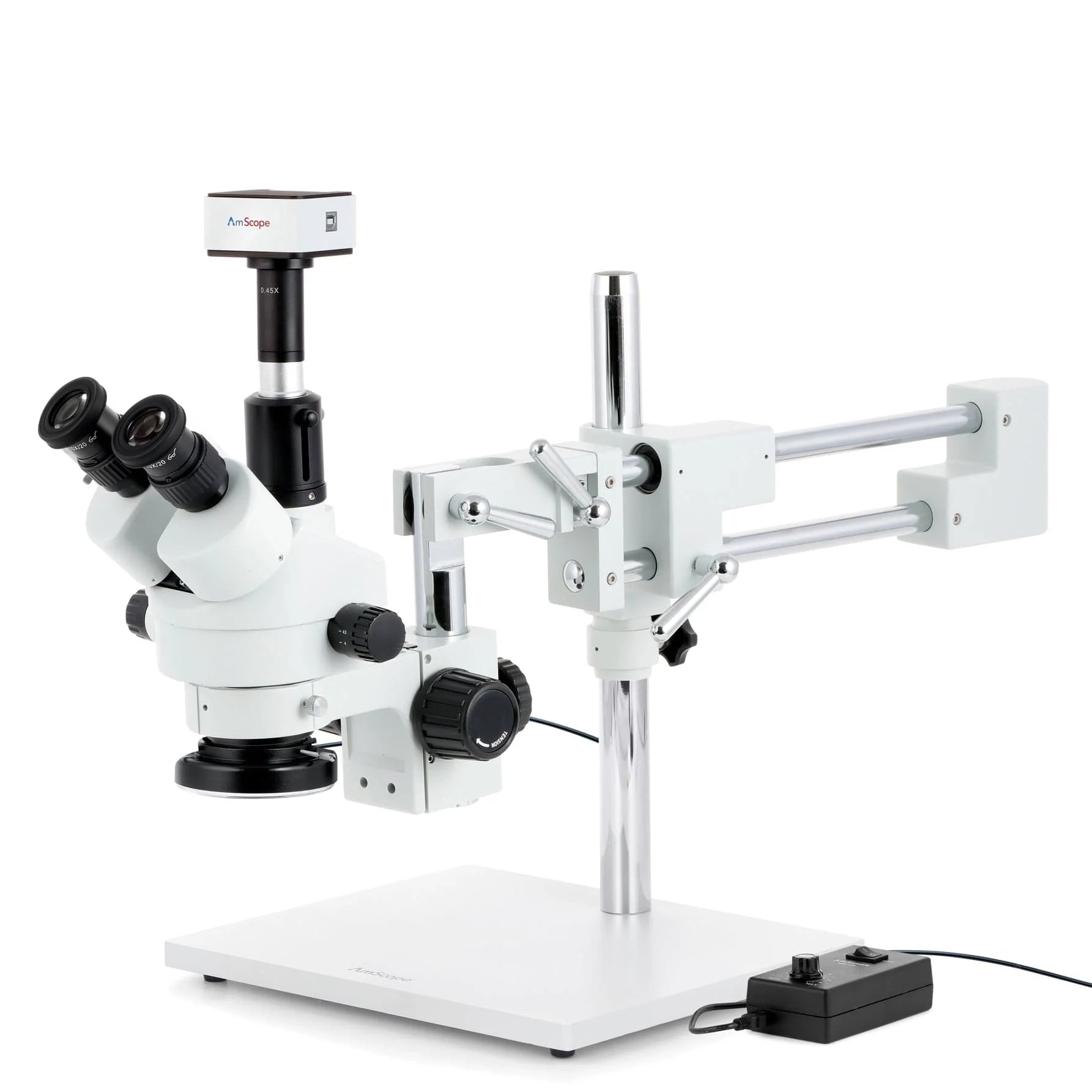

The AmScope SM-4TZ-144-5MT is idea for inspection, circuit board re-work, soldering, engraving, etc. This trinocular microscope has 3.5x - 90x capability and includes a 5.0 M.P. high resolution digital camera. The complete package also includes a 144-LED ring light with control box. The dual arm boom stand allows you to easily move the microscope in any direction! The 5.0. M.P. camera captures still images & video directly to your Window, Mac, or Lunix computer.


  • A 3.5X-90X large zoom power microscope on boom with 144-LED ring light and 5MP color digital camera!
  • 144-LED bright, even and cool lighting illumination
  • 45 degree inclined trinocular head with super widefield high-eyepoint eyepieces
  • Erect stereo sharp images over a super widefield of view
  • Full optical glass elements; precise ground glass lenses
  • High resolution with great flatness and contrast
  • Crystal clear original true color images
  • 30mm super widefield 10X eyepieces with 20mm field of view
  • 8" (200mm) large working distance
  • Accurate alignment ensuring fatigue-free long time view
  • Both ocular-tubes with adjustable diopter
  • Adjustable interpupillary distance
  • 3D versatile double-arm boom stand covering large working area
  • 3-degree freedom allows pointing microscope head in any direction desired!
  • Heavy-duty cast steel stand finished with stain resistant enamel
  • All metal mechanical components
  • Manufactured under ISO 9001 quality control standard
  • Excellent five (5) year manufacturer warranty


  • Head: 45 degree inclined 360 degree swiveling trinocular
  • Eyepieces: 30mm super widefield high-eyepoint WF10X/20
  • Objective: 0.7-4.5X
  • Auxiliary Objective: 0.5X 2.0X
  • Zoom Range: 26:1
  • Diopter Adjustment: +/-5dp
  • Interpupillary Distance: 2-3/16" - 2-15/16" (55-75mm)
  • Working Distance: 8" (200mm)
  • Illumination: 144 LED bulbs
  • Power input: 110-240V, 50-60HZ, Automatic Switching
  • Boom Stand: 20" double-arm (overall length: 30"), 17" high pillar, 10-1/4"x8-1/4"x2-0" solid cast steel base
  • Shipping Weight: 75 lbs

    Camera Specifications:

  • Image Sensor: Micron (color)
  • Sensor Type: CMOS
  • Sensor Size: 1/2.5"
  • Pixel Size: 2.2µm
  • Resolution: 5.0MP
  • Frame Rate: 30 fps @ 640x480, 8 fps @ 2592x1944
  • Sensitivity: 0.53V/lux-sec (550 nm)
  • Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX


  • Trinocular Stereo Zoom Head
  • Super Widefield 10X Eyepieces with Eye-Guards (Pair)
  • 0.5X Barlow Lens
  • 2.0X Barlow Lens
  • Double-Arm Boom Stand
  • Focus Rack
  • 144-LED Ring Light with Control Box
  • Mounting Adapter for Ring Light

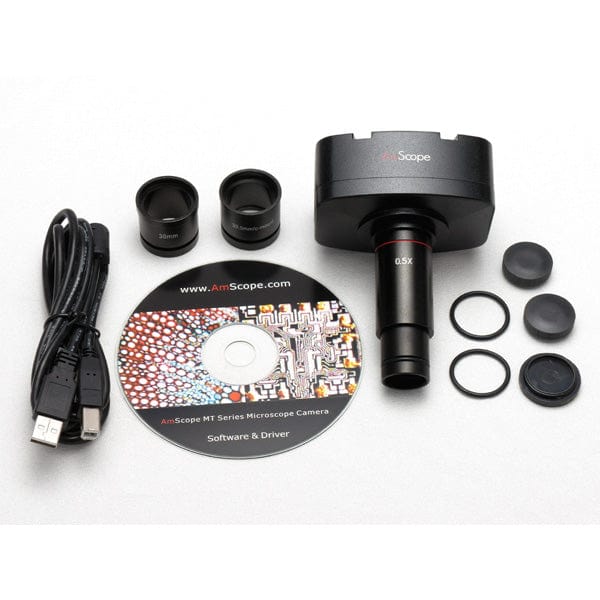

  • 5MP Heavy-duty USB2.0 Digital Camera
  • 30mm and 30.5mm Adapters for the Camera
  • CD with Software, Driver and Step-by-Step Instructions
  • User's Manual

  • AmScope SM-4TZ-144-5MT
