Amscope 3.5X-90X Articulating Trinocular Zoom Microscope with Ring Light

Amscope 3.5X-90X Articulating Trinocular Zoom Microscope with Ring Light

  • SKU: SM-7TZ-FRL
$875.99 $1,751.99
Request Quote

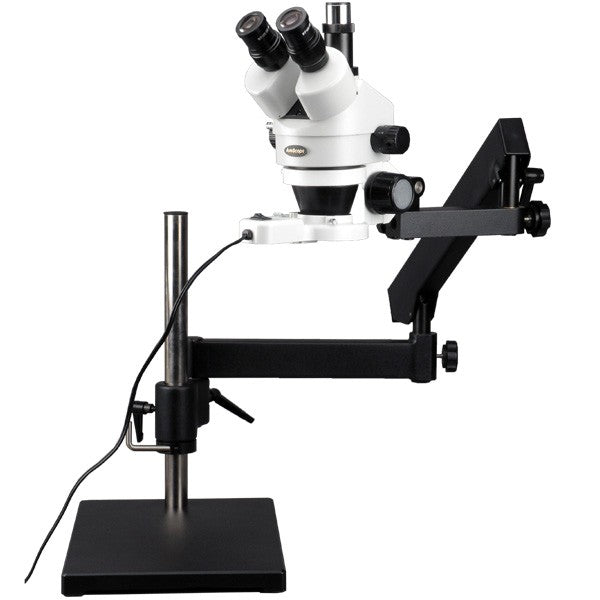

This trinocular 3.5X-90X zoom stereo microscope with articulating and base plate gives sharp and crystal clear images with high resolution. It comes with 30mm super widefield high-eye-point 10X eyepieces, a fluorescent ring light, a versatile articulating arm stand, and a trinocular port for photo or video attachment. This microscope provides 26:1 large zoom range and 8" (200mm) large working distance. It is an ideal instrument for research labs, gemologists, collectors, engravers, and anyone in semiconductor and/or electronic industry.

Features :

  • Trinocular port for photo or video attachment
  • Continuous 3.5X-90X large zoom magnification
  • 8" (200mm) large working distance
  • 45 degree inclined trinocular head with SUPER widefield high-eyepoint eyepieces
  • 30mm SUPER widefield 10X eyepieces with 20mm field of view
  • Adjustable interpupillary distance
  • Sharp stereo erect images over a wide field view
  • High resolution with great flatness and contrast
  • Crystal clear original true color images
  • Both ocular-tubes with adjustable diopter
  • Accurate alignment ensuring a fatigue-free long time viewing
  • Full optical glass elements
  • Precise ground glass lenses
  • Versatile articulating stand covering extremely large working area
  • Articulating arm with heavy-duty stand finished with stain resistant enamel
  • All metal mechanical components
  • Fluorescent ring light included
  • Rubber eye-guards included
  • Manufactured under ISO 9001 quality control system
  • Excellent five (5) year manufacturer warranty

Specifications:

  • Head: 45 degree inclined 360 degree rotatable trinocular
  • Eyepieces: 30mm super widefield high-eyepoint 10X
  • Barlow Lenses: 0.5X and 2X
  • Objective: 0.7-4.5X
  • Zoom Range: 26:1
  • Working Distance: 8" (200mm)
  • Field of View: 2-1/2" (65mm) Max
  • Diopter Adjustment: +/-5dp
  • Interpupillary Distance: 2-3/16" - 2-15/16" (55-75mm)
  • Stand: Heavy duty articulating arm with solid cast steel base
  • Illumination: 8 Watt 110V (220V available) fluorescent ring light
  • Accessories: eye-guards

Packing List :

  • One Trinocular Zoom Microscope Head
  • One Pair of Super Widefield High-eyepoint 10X Eyepieces
  • One Super Widefield 0.5X Barlow Lens
  • One Super Widefield 2X Barlow Lens
  • One Articulating Arm with Pillar and Base Plate
  • One Focusing Rack
  • One Fluorescent Ring Light
  • One Ring Light Adapter
  • One Pair of Eye-guards
  • User's Manual Download
  • Weight: 65 lbs
