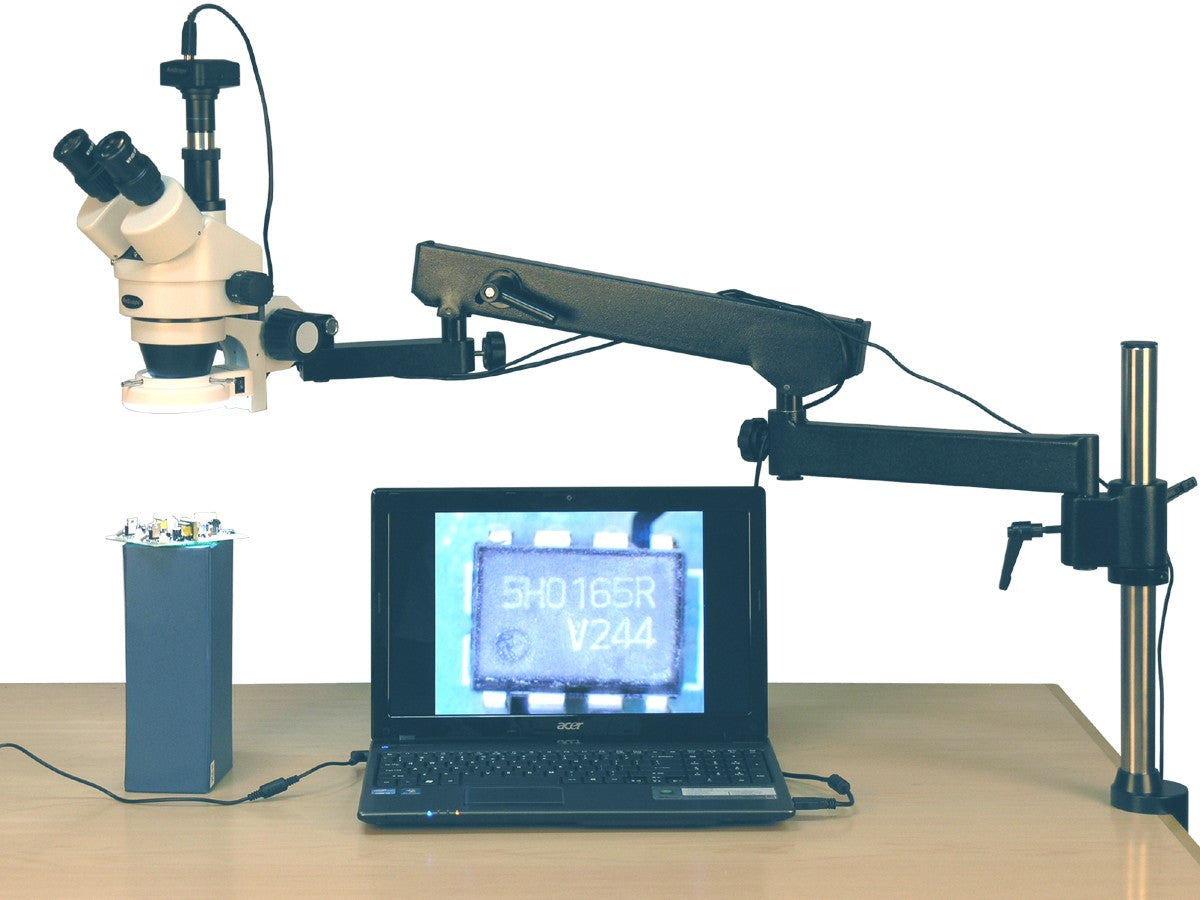

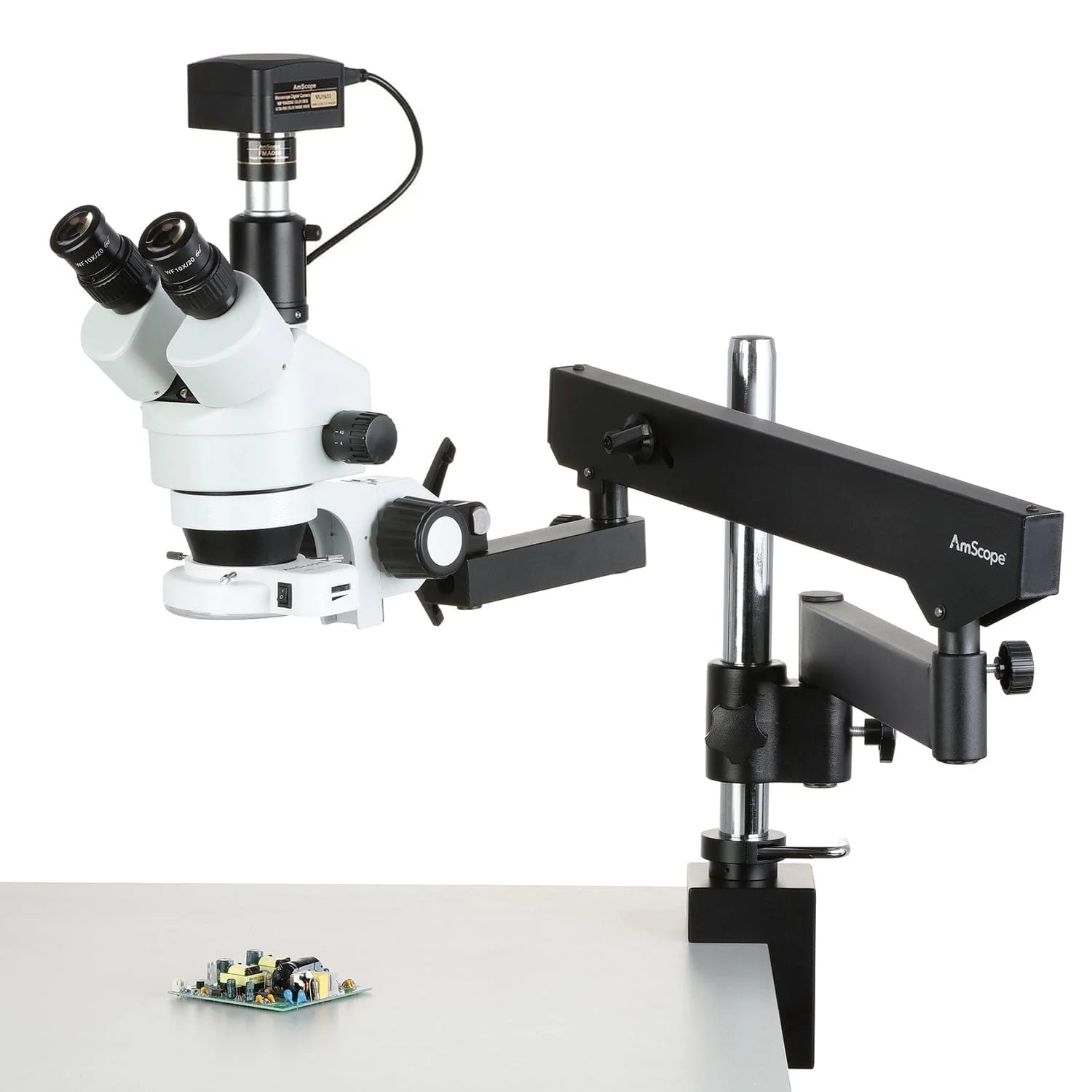

Amscope 3.5X-90X 144-LED Articulating Arm Zoom Stereo Microscope + 10MP Digital Camera

This is a great turnkey package for a stereo microscope with an articulating pillar arm and a 10MP digital camera. It includes a 3.5X-90X trinocular zoom microscope, an articulating pillar arm, a 144-LED ring light and a 10MP USB digital camera. Offering sharp and crystal clear images, this unit is a perfect stereo microscopy system for multiple applications. With 30mm super widefield, high-eyepoint optics, it provides a very large zoom magnification range (26:1) and a large working distance (8", 200mm). With a vertical pillar and a clamp, the articulating arm provides great flexibility. The LED ring light provides bright, even and cool illumination.

The digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.

This microscopy system is great for both industrial and biological applications. It is an ideal instrument for manufacturing engineers, researchers, gemologists, lab technicians, and anyone in electronics and semiconductor industries.

Features:

• A high quality super widefield optical system with 10MP digital camera offers 3.5X-90X zoom magnification power
• Versatile heavy-duty articulating arm with a vertical pillar and a clamp covers large working area
• 8" (200mm) large working distance
• 30mm Super Widefield 10X Eyepieces
• Sharp stereo images over a super widefield view
• High resolution with great flatness and contrast
• Crystal clear original true color images
• Accurate alignment reduces eye strain for a More Comfortable Observation
• Both ocular tubes with adjustable diopters
• Adjustable interpupillary distance
• Full optical glass elements
• Precise ground glass lenses
• All metal mechanical components
• Rubber eye-guards included
• High quality 10MP USB digital camera captures microscope images and streams live video on your computer screen
• Saves still images in BMP, TIFF, JPG, PICT, PTL and other formats
• Measures lengths, angles, areas and etc. across images
• User-friendly software compatible with Windows XP/Vista/7/8, Mac OS X and Linux
• Life-time free software upgrading
• Quick and easy USB2.0 connection
• Manufactured Under ISO 9001 Quality Control Standard
• Excellent Five (5) Year Factory Warranty

Specifications:

• Head: 45-degree inclined, 360-degree swiveling trinocular
• Eyepieces: 30mm super widefield high-eyepoint WH10X/20
• Barlow Lens: 0.5X and 2.0X
• Objective: 0.7-4.5X
• Zoom Range: 26:1
• Diopter Adjustment: +/-5dp
• Interpupillary Distance: 2-3/16" - 2-15/16" (55-75mm)
• Working Distance: 8" (200mm)
• Accessories: eye-guards

Camera Specifications:

• Sensor: Aptina MT9J003
• Sensor Type: CMOS
• Sensor Size: 6.44x4.616mm
• Pixel Size: 1.67
• Resolution: 10.0MP
• Frame Rate: 1.9@3584x2748, 8@1792x1374, 27@896x684
• Sensitivity: 0.31 V/lux-sec
• Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux

Software Specifications:

• OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
• Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port

Packing List :

• One Trinocular Zoom Microscope Head
• One Pair of Super Widefield High-eyepoint 10X Eyepieces
• One 0.5X Barlow Lens
• One 2.0X Barlow Lens
• One Articulating Arm with a Pillar Clamp
• One Focusing Rack

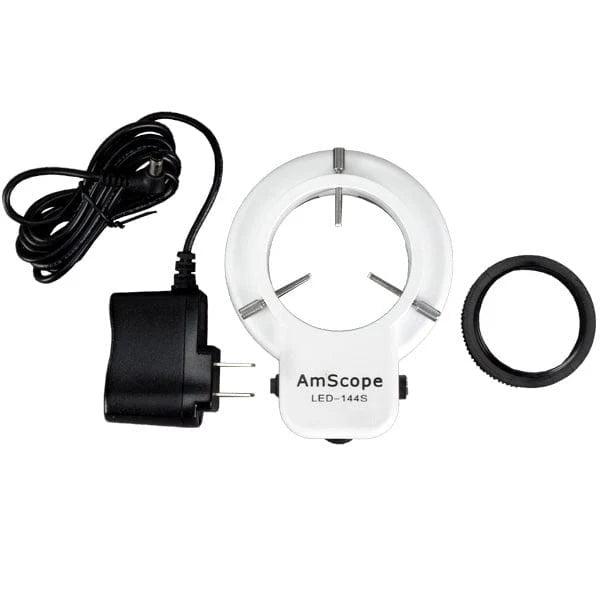

• One 144-LED Ring Light
• One Ring Light Adapter
• One Pair of Eye-guards
• User's Manual Download

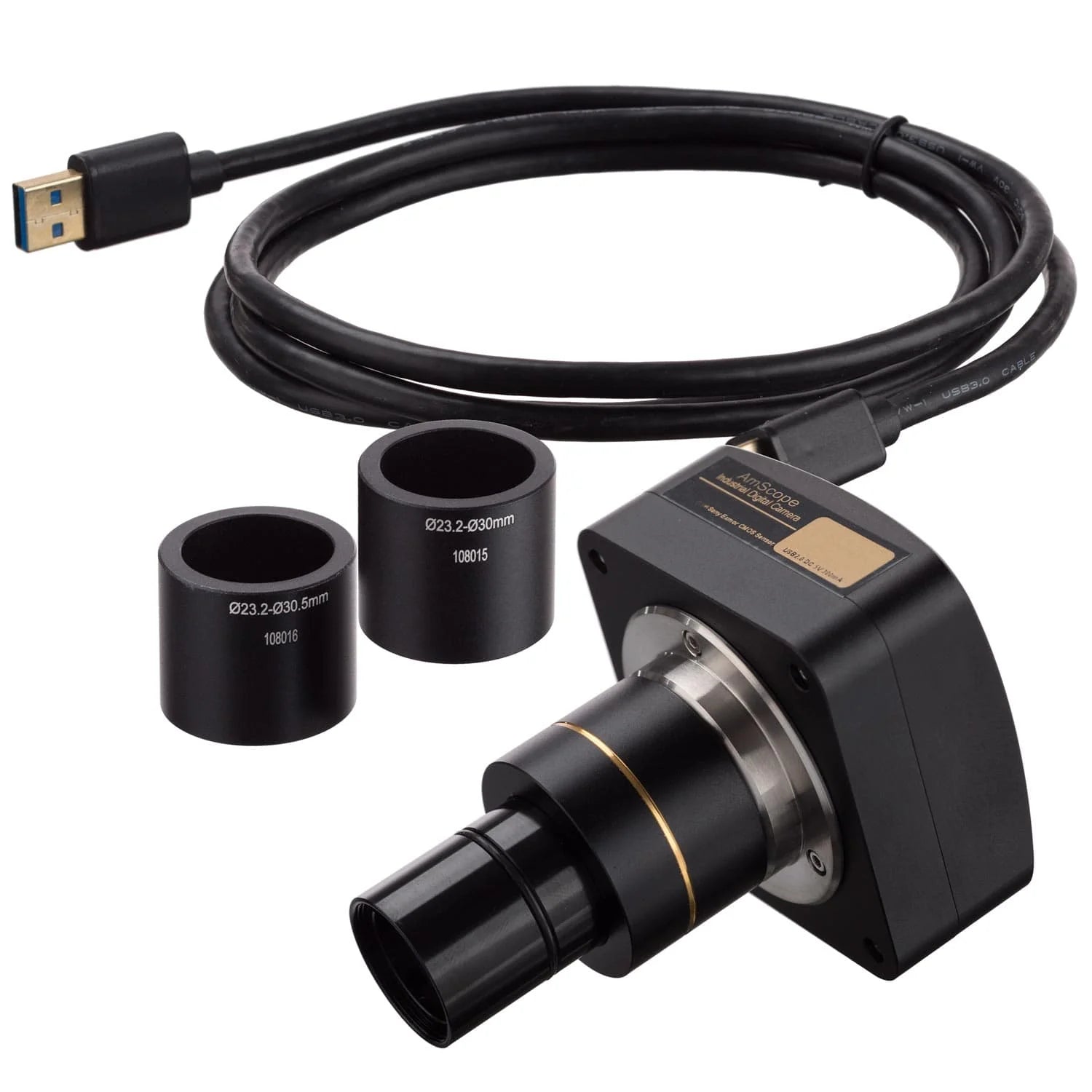

• One 10MP USB2.0 Digital Camera with 0.5X Reduction Lens
• One 6' (1.8m) USB Cable
• One CD with Camera Software & Driver
• Two Adapter Sleeves (23.2mm-30mm & 23.2mm-30.5mm)
• Shipping Weight: 35 lbs
