AmScope 7X-45X Trinocular LED Boom Stand Stereo Zoom Microscope + 3MP Camera

AmScope 7X-45X Trinocular LED Boom Stand Stereo Zoom Microscope + 3MP Camera

|

SKU: SM-3T-54S-3M3

Regular price $709.99
Regular price $851.99 Sale price $709.99
Sale Sold out
Quote Request
AmScope 7X-45X Trinocular LED Boom Stand Stereo Zoom Microscope + 3MP Camera
Got Questions? Why Choose Us? View full details

Description

This 7X-45X trinocular stereo zoom microscope is on a boom stand. It has a trinocular head with super widefield optics, a heavy-duty single-arm boom stand, a 54-LED ring light with dimmer, and a 3MP color digital camera. It offers crystal clear erect stereo images, a super wide field of view, a large magnification zoom range, and a large working distance. The high-eyepoint optical design ensures an easy and comfortable observation for all users including eyeglass wearers.

The digital camera captures still images and video and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended depth of focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.

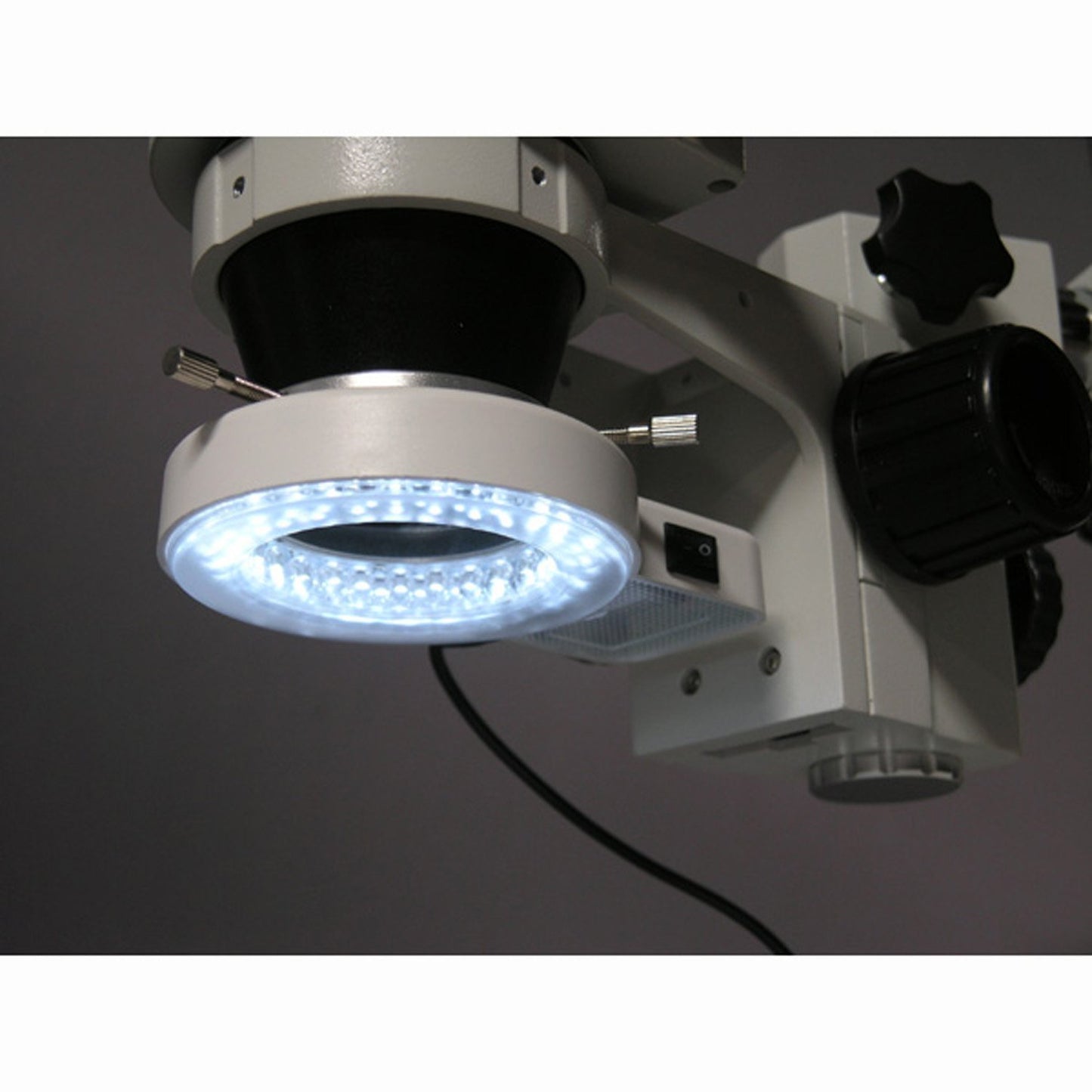

The boom stand gives your microscope the flexibility to cover a large working area. The intensity-adjustable LED ring light provides bright, even, and cool light illumination. This microscopy system is an ideal instrument for researchers, gemologists, engravers, collectors, and anyone in the semiconductor and electronics industries. It is also a perfect microscope for biological laboratory applications that require low heat release.

Features :

  • A 7X-45X Continuous Zoom Magnification Microscopy System on Boom Stand!
  • 54-LED Ring Light and 3MP Color Digital Camera Included!
  • 54-LED Bright, Even, and Cool Lighting Illumination
  • 45 Degree Inclined Trinocular Head with SUPER Widefield High-Eyepoint Eyepieces
  • Erect Stereo Sharp Images over a SUPER Widefield of View
  • Full Optical Glass Elements
  • Precise Ground Glass Lenses
  • High Resolution with Great Flatness and Contrast
  • Crystal Clear Original True Color Images
  • 30mm SUPER Widefield WF10X/20 Eyepieces
  • Large Working Distance
  • Accurate Alignment Ensuring Fatigue-Free Observation
  • Both Ocular-Tubes with Adjustable Diopter
  • Adjustable Interpupillary Distance
  • Versatile Boom Stand Covering Large Working Area
  • Heavy-Duty Cast Steel Stand Finished with Stain Resistant Enamel
  • Rugged Solid Cast Steel Base
  • All Metal Mechanical Components
  • Rubber Eye-guards Included
  • Mounting Adapter for LED Ring Light Included
  • Camera Adapters for Fitting All Other Microscopes Included
  • Manufactured Under ISO 9001 Quality Control Standard
  • Excellent Five (5) Year Factory Warranty

Specifications :

  • Head: 45-degree inclined 360-degree swiveling trinocular
  • Eyepiece: 30mm Super widefield high-eyepoint WF10X/20
  • Objective: 0.7-4.5X
  • Zoom Range: 6.5:1
  • Diopter Adjustment: +/-5dp
  • Interpupillary Distance: 2-3/16" - 2-15/16" (55-75mm)
  • Working Distance: 4" (100mm)
  • Illumination: 54-LED
  • Power input: 110-240V, 50-60HZ, Automatic Switching
  • Boom Stand: 16" arm (overall length: 24"), 17" high pillar, 9" x 9" x 1-3/4" solid cast steel base
  • Accessories: eye-guards
  • Shipping Weight: 65 lbs

Camera Specifications:

  • Sensor: Aptina AR0330 CMOS (Color)
  • Sensor Type: CMOS
  • Sensor Size: 1/3" (diagonal 6.0mm)
  • Reduction Lens: 0.5X
  • Pixel Size: 2.2µm x 2.2µm
  • Resolution: 3MP, 2048 x 1536 (approx.3,200,000 pixels)
  • Frame Rate: 53fps @1024x770, 28fps @2048x1534 (Multiple Speed Level)
  • Sensitivity: 2v / lux-sec (550nm)
  • Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux

Software Specifications:

  • OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
  • Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port

Packing List :

  • One Trinocular Stereo Zoom Head
  • One Pair of SUPER Widefield 10X Eyepieces
  • One Single-Arm Boom Stand with Focus Rack
  • One Pair of Eye-Guards
  • User's Manual Download
  • One 54-LED Ring Light with Mounting Adapter
  • One 3MP USB 3.0 Microscope Digital Camera with Reduction Lens
  • Two Mounting Adapters
  • One USB Cable
  • One CD with Software, Driver, and Step-by-Step User Instructions
