AmScope 3.5X-45X LED Boom Stand Stereo Zoom Microscope + Digital Camera

This 3.5X-45X trinocular stereo zoom microscope is on boom stand. It comes with a trinocular head with super widefield optics, a heavy-duty single-arm boom stand, a 54-LED ring light with dimmer, and a 640x480 pixel color digital camera. It offers crystal clear erect stereo images, 2-1/2" (65mm) super widefield of view, 13:1 large magnification zoom range and 8" (200mm) large working distance. The high-eyepoint optical design ensures an easy and comfortable observation for all users including eyeglass wearers.

The digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.

The boom stand gives your microscope the flexibility to cover large working area. The intensity-adjustable LED ring light provides bright, even and cool light illumination. This microscopy system is an ideal instrument for researchers, gemologists, engravers, collectors and anyone in semiconductor and electronics industries. It is also a perfect microscope for biological laboratory applications that require low heat release.

Features :

• A 3.5X-45X Continuous Zoom Magnification Microscopy System on Boom Stand!
• 54-LED Ring Light and 640x480 Pixel Color Digital Camera Included!

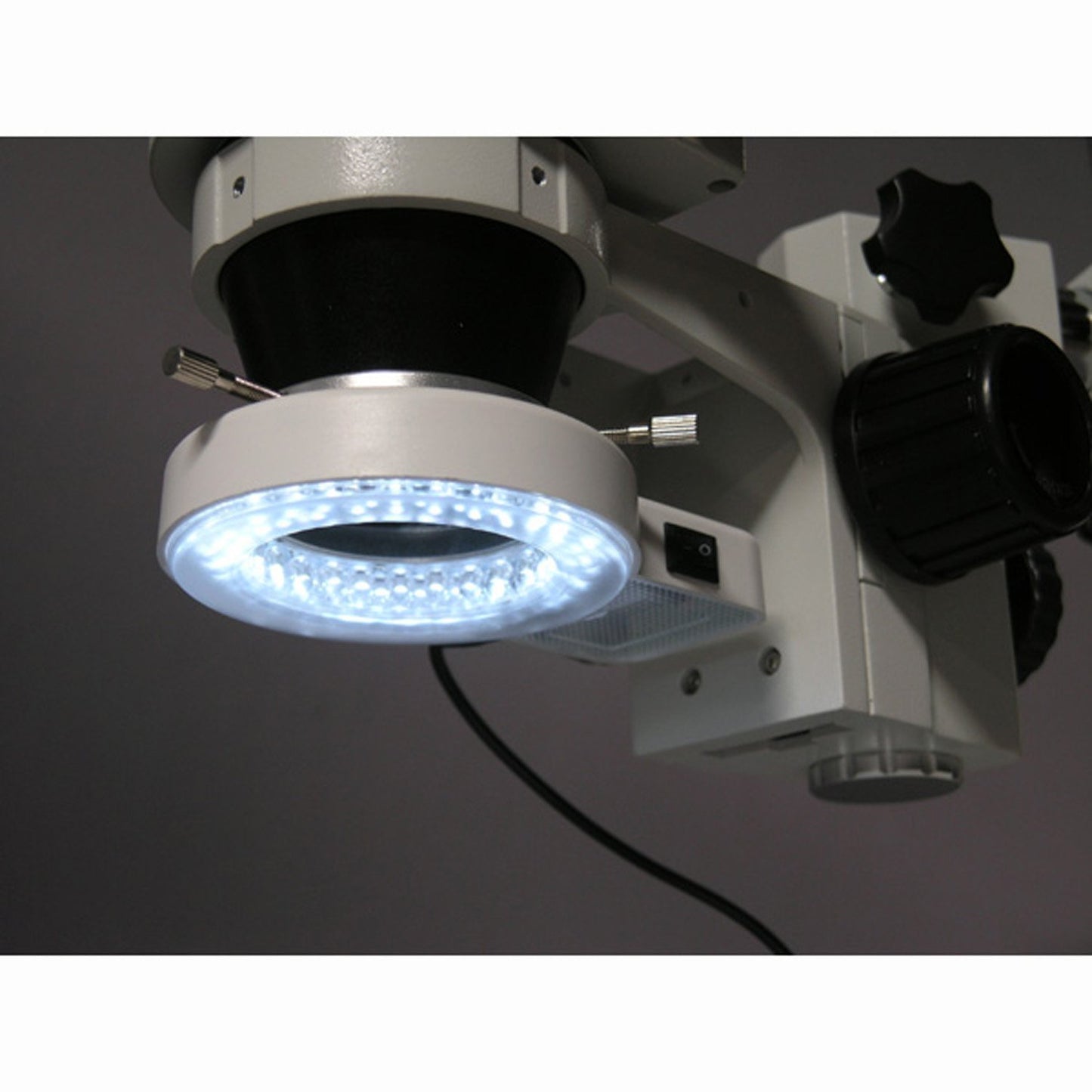

• 54-LED Bright, Even and Cool Lighting Illumination
• 45 Degree Inclined Trinocular Head with SUPER Widefield High-Eyepoint Eyepieces
• Erect Stereo Sharp Images over a SUPER Widefield of View
• Full Optical Glass Elements
• Precise Ground Glass Lenses
• High Resolution with Great Flatness and Contrast
• Crystal Clear Original True Color Images
• 30mm SUPER Widefield WF10X/20 Eyepieces
• Large Working Distance
• Accurate Alignment Ensuring Fatigue-Free Observation
• Both Ocular-Tubes with Adjustable Diopter
• Adjustable Interpupillary Distance
• Versatile Boom Stand Covering Large Working Area
• Heavy-Duty Cast Steel Stand Finished with Stain Resistant Enamel
• Rugged Solid Cast Steel Base
• All Metal Mechanical Components
• Rubber Eye-guards Included
• Mounting Adapter for LED Ring Light Included
• Camera Adapters for Fitting All Other Microscopes Included
• Manufactured Under ISO 9001 Quality Control Standard
• Excellent Five (5) Year Factory Warranty

Specifications :

• Head: 45 degree inclined 360 degree swiveling trinocular
• Eyepiece: 30mm Super widefield high-eyepoint WF10X/20
• Objective: 0.7-4.5X
• Barlow Lens: 0.5X
• Zoom Range: 13:1
• Diopter Adjustment: +/-5dp
• Interpupillary Distance: 2-3/16" - 2-15/16" (55-75mm)
• Working Distance: 8" (200mm)
• Widefield of View (Maximum): 2-1/2" (65mm) in diameter, super widefield
• Illumination: 54-LED
• Power input: 110-240V, 50-60HZ, Automatic Switching
• Boom Stand: 16" arm (overall length: 24"), 17" high pillar, 9" x 9" x 1-3/4" solid cast steel base
• Accessories: eye-guards
• Shipping Weight: 65 lbs

Camera Specifications:

• Sensor: Aptina MT9V011
• Sensor Type: CMOS
• Sensor Size: 3.58x2.69mm
• Pixel Size: 5.6
• Resolution: 0.3MP
• Frame Rate: 30@640x480, 80@320x240
• Sensitivity: 1.9V/lux-sec
• Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux

Software Specifications:

• OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
• Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port

Packing List :

• One Trinocular Stereo Zoom Head
• One Pair of SUPER Widefield 10X Eyepieces
• One SUPER Widefield 0.5X Barlow Lens
• One Single-Arm Boom Stand with Focus Rack
• One Pair of Eye-Guards
• User's Manual Download
• One 54-LED Ring Light with Mounting Adapter
• One 640x480 Pixel USB2.0 Digital Camera with Reduction Lens
• One 6' (1.8m) USB Cable
• One CD with Camera Software & Driver
• Two Adapter Sleeves (23.2mm-30mm & 23.2mm-30.5mm)
