AmScope 3.5X-180X Boom Stand Trinocular Zoom Stereo Microscope with Fiber Optic Ring Illuminator and 18MP USB3 Camera

Recently viewed

AmScope 3.5X-180X Boom Stand Trinocular Zoom Stereo Microscope with Fiber Optic Ring Illuminator and 18MP USB3 Camera
AmScope 3.5X-180X Boom Stand Trinocular Zoom Stereo Microscope with Fiber Optic Ring Illuminator and 18MP USB3 Camera

AmScope 3.5X-180X Boom Stand Trinocular Zoom Stereo Microscope with Fiber Optic Ring Illuminator and 18MP USB3 Camera

  • SKU: SM-3TPZZ-FOR-18M3
$1,373.99 $2,747.99
Request Quote

This trinocualr digital stereo microscope from AmScope allows you to view simultaneously through the microscope while displaying an image out to the camera. The microscope package comes complete and ready to use offering components to allow for 3.5x-180x magnification. The included ring light offers bright 150w fiber optic illumination with variable intensity control.

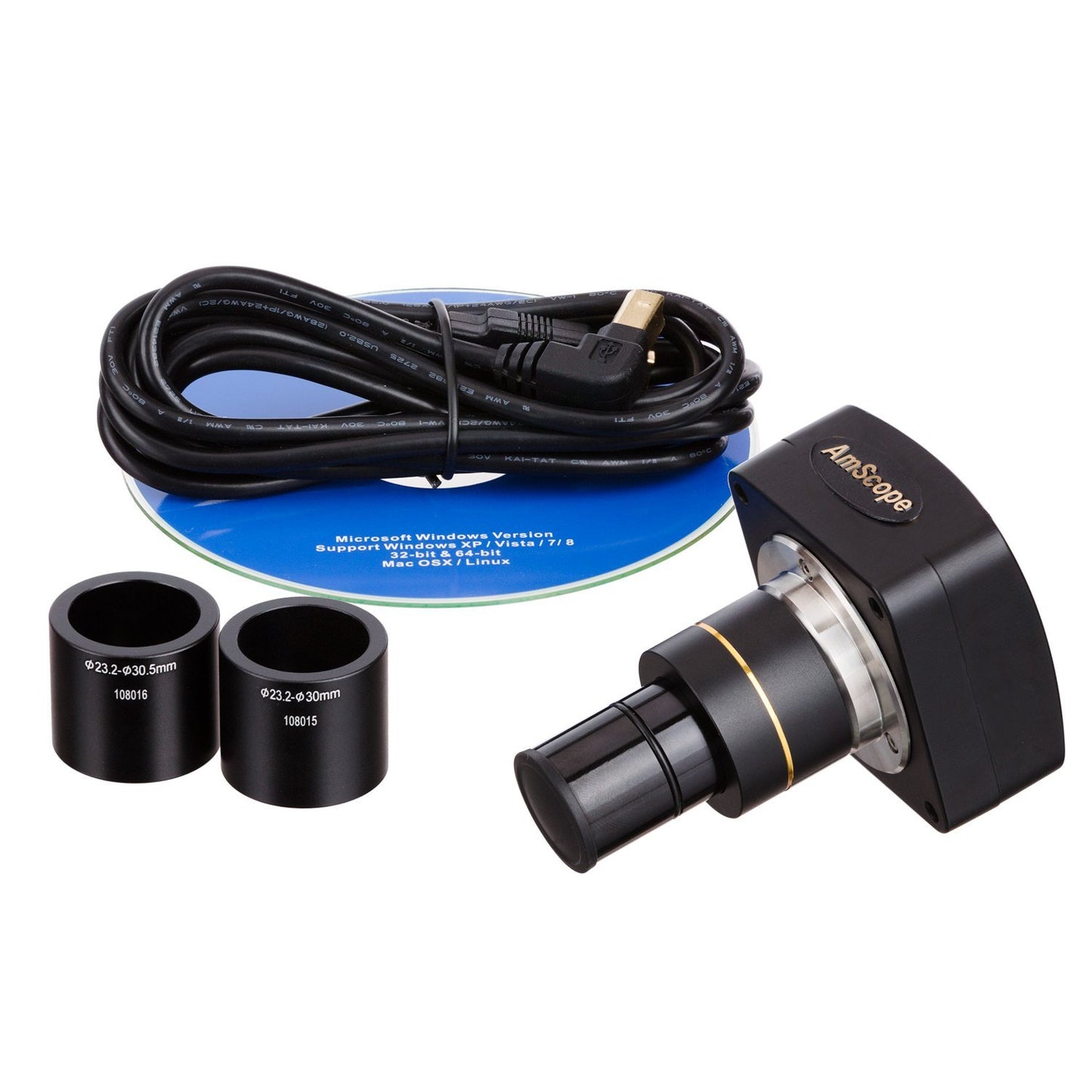

The 18MP USB3.0 digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features.

Features :

  • Simul-Focal Optical System Allows Simultaneous Observation Through Both the Eyepieces and the Trinocular Port
       + Have well-focused, clear images on your computer/video screen and through the eyepieces at the same time.
       + No need to switch between the trinocular port and the eyepieces
       + No need to re-focus the microscope after each "switch"
  • 30mm Super Widefield 10X and 20X Eyepieces
       + Sharp stereo images over a super widefield view
       + High resolution with great flatness and contrast
       + Crystal clear original true-color images
  • Versatile Single-Arm Boom Stand
       + Covers large working area
       + Rugged solid cast steel base finished with stain resistant enamel
  • 3.5X-180X Continuous Zoom Magnification Range
  • 150 watt strong, even, cool halogen illumination.
  • 45-Degree Inclined Microscope Head
  • 8" (200mm) Large Working Distance
  • Upright Trinocular Tube for Attaching Digital Cameras, Video Camcorders or CCD Videos
  • Accurate Alignment Ensuring Fatigue-Free Comfortable Observation
  • Both Ocular Tubes with Adjustable Diopters
  • Adjustable Interpupillary Distance
  • Full Optical Glass Elements
  • Precise Ground Glass Lenses
  • All Metal Mechanical Components
  • Rubber Eye-guards Included
  • Manufactured under ISO 9001 Quality Control Standard
  • Excellent Five (5) Year Manufacturer Warranty

  • Specifications :

  • Head: 45 degree inclined 360 degree swiveling trinocular
  • Eyepiece: 30mm Super widefield high-eyepoint WF10X/20 and WF20/10
  • Objective: 0.7-4.5X
  • Barlow Lens: 0.5X and 2.0X
  • Zoom Range: 26:1
  • Diopter Adjustment: +/-5dp
  • Interpupillary Distance: 2-3/16" - 2-15/16" (55-75mm)
  • Working Distance: up to 8" (200mm) with Barlow lens
  • Widefield of View (Maximum): 2-1/2" (65mm) in diameter, super widefield
  • Boom Stand: 16" arm (overall length: 24"), 17" high pillar, 9" x 9" x 1-3/4" solid cast steel base
  • Illumination: 150 watt halogen bulb.
  • Power Supply: 110V/60Hz (220V/50Hz version available).
  • Accessories: eye-guards

  • Camera Specifications:

  • Sensor: Aptina (color)
  • Sensor Type: CMOS
  • Sensor Size: 6.14x4.61mm
  • Pixel Size: 1.25
  • Resolution: 18.0MP
  • Frame Rate: 32.2fps @ 1228x922, 18.1fps @ 2456x1842, 5.6fps @ 4912x3684
  • Sensitivity: 0.62 V/lux-sec
  • Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux
  •

    Software Specifications:

  • OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
  • Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0 port for maximum speed
  • Packing List:

  • Trinocular Simul-Focal Stereo Zoom Head
  • Pair of SUPER Widefield 10X Eyepieces
  • Pair of SUPER Widefield 20X Eyepieces
  • SUPER Widefield 0.5X Barlow Lens
  • SUPER Widefield 2.0X Barlow Lens
  • Single-Arm Boom Stand with Focus Rack
  • 150W Fiber Optic Ring Illuminator
  • 18MP USB3.0 Digital Camera with Reduction Lens
  •  Pair of Eye-Guards
  • User's Manual
  • AmScope SM-3TPZZ-FOR-18M3
  •
