AmScope 2x-225x Trinocular Boom Stand Stereo Zoom Microscope + 14MP Camera

AmScope 2x-225x Trinocular Boom Stand Stereo Zoom Microscope + 14MP Camera

Perfect for dissecting or inspection this trinocular stereo microscope offers 2x-225x magnification and comes complete with 14MP camera and 150W fiber optic ring light. This...

$1,880.99
Request Quote
Add to wishlist

Perfect for dissecting or inspection this trinocular stereo microscope offers 2x-225x magnification and comes complete with 14MP camera and 150W fiber optic ring light. This camera operates on Windos, MAC, or Linux systems offering the most capabilities with Windows such as measurements, stitching, extended-depth-of-foucs, etc.

Features :

  • 2X-225X Extreme Widefield Stereo Zoom Microscope with High Resolution Image System!
  • 14" (350mm) Extremely Large Working Distance
  • (112:1) Extremely Wide Zoom Range
  • 150W Fiber Optic Halogen Ring Illumination
  • 45° Inclined Trinocular Head with Extreme Widefield High-Eyepoint Eyepieces
  • 30mm WF10X/22 Extreme Widefield Eyepieces
  • Both Ocular-Tubes with Adjustable Diopter
  • Adjustable Interpupillary Distance
  • Full Optical Glass Elements
  • Precise Ground Glass Lenses
  • 3D Double-Arm Boom Stand
  • Heavy-Duty Cast Steel Stand Finished with Stain Resistant Enamel
  • Rugged Solid Cast Steel Base
  • All Metal Mechanical Components
  • Rubber Eye-guards Included
  • Manufactured Under ISO 9001 Quality Control Standard
  • Excellent Five (5) Year Factory Warranty
  •

    Specifications :

  • Head: 45° inclined 360° swiveling trinocular
  • Eyepieces: 30mm super widefield high-eyepoint WF10X/22 and WF25X/9
  • Objective: 0.67-4.5X
  • Barlow Lenses: 0.3X and 2X
  • Zoom Range: 112:1
  • Diopter Adjustment: ±5dp
  • Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
  • Working Distance: 14" (350mm)
  • Boom Stand: 20" double-arm (overall length: 30"), 17" high pillar, 10-1/4"x8-1/4"x2-0" solid cast steel base
  • Accessories: eye-guards
  •

    Camera Specifications:

  • Sensor: ONSemi (color)
  • Sensor Type: CMOS
  • Sensor Size: 6.138x4.603mm
  • Pixel Size: 1.4µm
  • Resolution: 14MP
  • Frame Rate: 54fps @1024x822, 21fps @2048x1644, 6.2fps @4096x3286
  • Sensitivity: 0.724V / Lux-sec (550nm)
  • Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux
  •

    Software Specifications:

  • OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
  • Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0 port for maximum speed
  •

    Packing List :

  • One Trinocular Stereo Zoom Head
  • One Pair of WF10X/22 Extreme Widefield High-Eyepoint Eyepieces
  • One Pair of WF25X/9 Extreme Widefield High-Eyepoint Eyepieces
  • Two Barlow Lenses: 0.3X & 2X
  • One 3D Double-Arm Boom Stand with Focusing Rack
  • One Pair of Eye-Guards
  • One 150W Halogen Light Source
  • One Fiber Optic Ring Light with Mounting Adapter
  • User's Manual for the Microscope

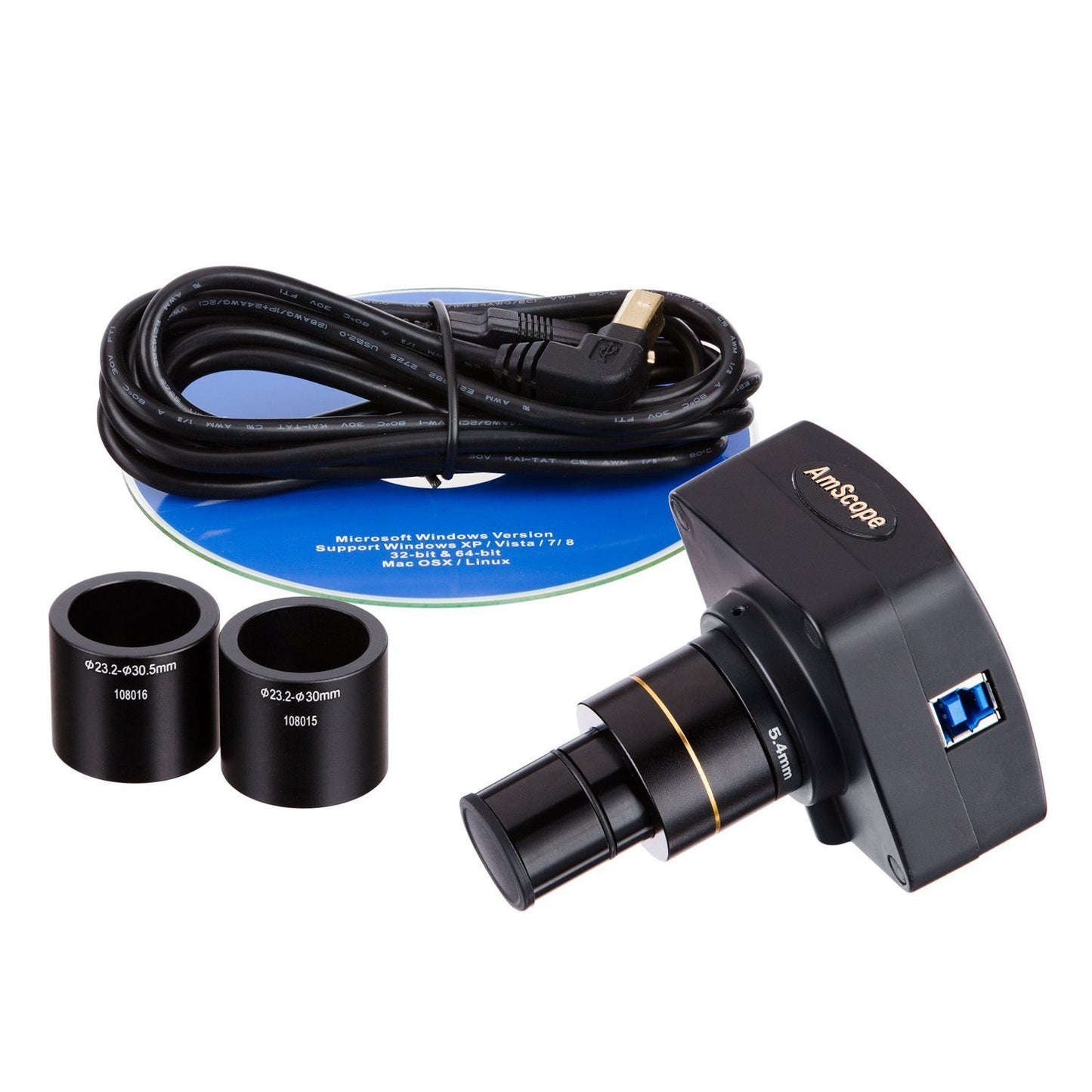

  • One 14MP USB3.0 Color Digital Image System with Reduction Lens
  • One CD with Software, Driver and Step-by-Step User's Instructions for the Camera
  • Two Camera Adapters
  • AmScope ZM-4TW3-FOR-14M3
