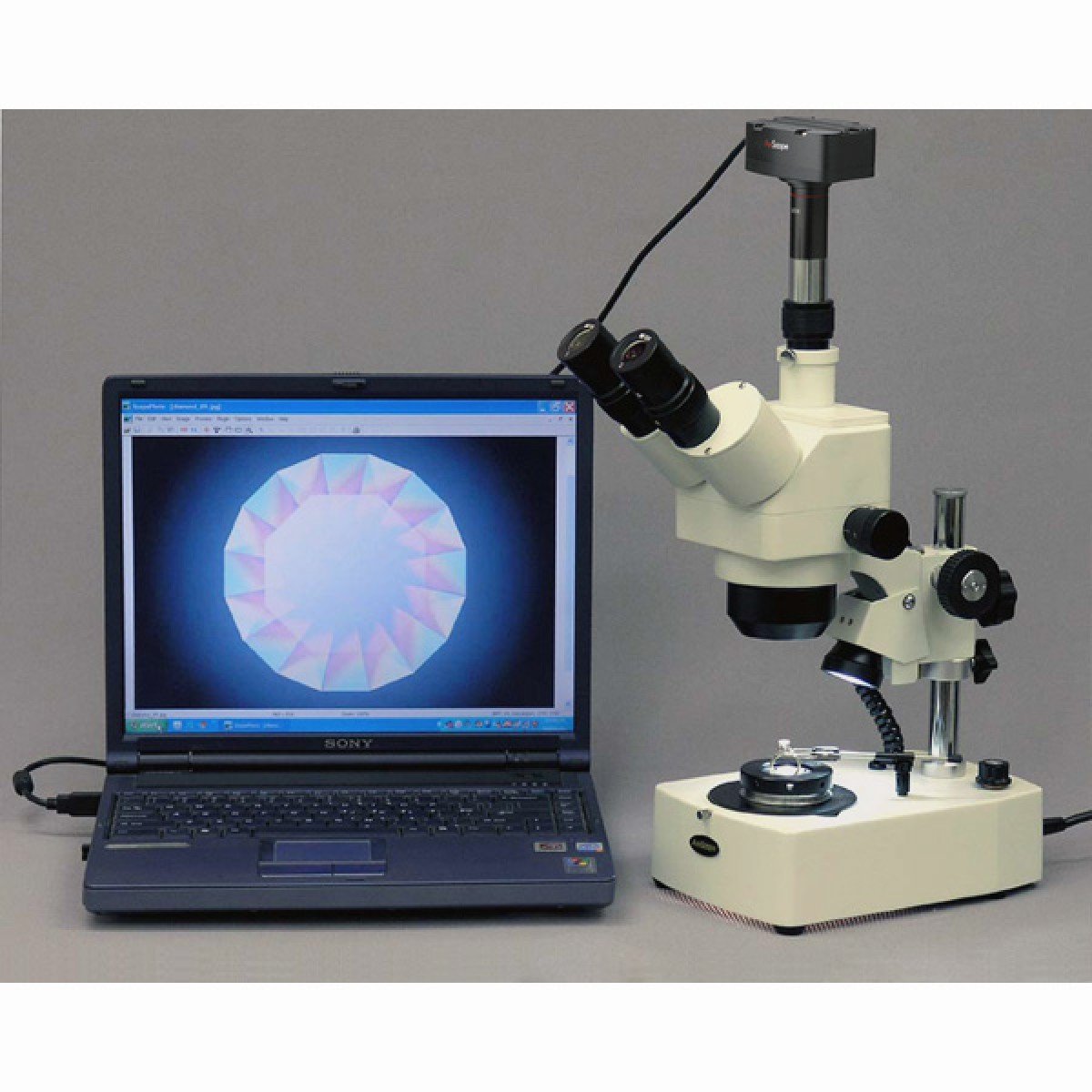

AmScope 10X-60X Darkfield Jewelry Gem Microscope + 3MP Camera

AmScope 10X-60X Darkfield Jewelry Gem Microscope + 3MP Camera

This is a trinocular jewelry/gem stereo zoom microscope with 3MP color USB2.0 digital camera that captures microscope images and displays them on your computer screens....

$579.18
Request Quote
Add to wishlist

This is a trinocular jewelry/gem stereo zoom microscope with 3MP color USB2.0 digital camera that captures microscope images and displays them on your computer screens. The microscope comes with a darkfield condenser, a jewelry/gem clamp and top & bottom halogen lights. It offers a large zoom range (10X-60X) and crystal clear images. The digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features. This is an ideal instrument for jewelry dealers and collectors. This microscopy package is brand new in box.

Features :

  • A perfect brightfield and darkfield microscopy system for jewelry/gem applications.
  • Large zoom magnification (10X-60X) microscopy turnkey package.
  • Darkfield condenser included.
  • Jewelry/gem clamp included.
  • 45 degree inclined 360 degree rotatable trinocular head.
  • High resolution optics with great flatness and contrast.
  • Sharp stereo erect images over a wide field view.
  • Crystal clear original true color images.
  • Eye tube with adjustable diopter.
  • Metal pillar stand finished with stain resistant enamel.
  • Accurate alignment ensuring a fatigue-free long time view.
  • Full optical glass elements.
  • Precise ground glass lenses.
  • All metal mechanical components.
  • Adjustable interpupillary distance.
  • Rubber eye-guards included.
  • Dual halogen illumination system.
  • Built-in top and bottom halogen lights.
  • CE approval electric apparatus.
  • Manufactured Under ISO 9001 Quality Control Standard
  • Excellent Five (5) Year Factory Warranty
  •

    Specifications:

  • Head: 45 degree inclined 360 degree swiveling binocular.
  • Eyepiece: 30.5mm widefield WF10X & WF15X.
  • Objective: 1.0-4.0X.
  • Zoom Range: 6:1.
  • Diopter Adjustment: +/-5dp.
  • Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm).
  • Working Distance: 3-3/8".
  • Stage Plates: a frosted glass objective plate and a white/black plastic plate with diameter: 3-3/4" (95mm).
  • Illumination: 12V/10W halogen lamps.
  • Accessories: dust cover, eye-guards and clips.
  •

    Camera Specifications:

  • Sensor: Aptina MT9T001
  • Sensor Type: CMOS
  • Sensor Size: 6.55x4.92mm
  • Pixel Size: 3.2
  • Resolution: 3.1MP
  • Frame Rate: 8@2048x1536, 22@1024x768, 43@680x510
  • Sensitivity: 1.0V/lux-sec
  • Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux
  •

    Software Specifications:

  • OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
  • Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port
  •

    Packing List :
  • One Trinocular Stereo Zoom Head
  • One Pillar Base with Top and Bottom Lights and Focusing Rack
  • One Pair of 30.5mm Widefield 10X Eyepieces
  • One Pair of 30.5mm Widefield 15X Eyepieces
  • One Frosted Round Glass Plate
  • One White/Black Round Plastic Plate
  • One Power Cord
  • One Pair of Clips
  • One Pair of Eye-guards
  • One Dust Cover
  • One 3MP Color Digital Camera with Reduction Lens
  • One 6' (1.8m) USB Cable
  • Two Eyepiece Adapters, 30.0mm 30.5mm
  • One CD with Software, Driver and User's Instructions
  • Shipping Weight: 20 lbs
  • AmScope SH-2TY-DK-3M Microscope
  •


    This is a trinocular jewelry/gem stereo zoom microscope with 3MP color USB2.0 digital camera that captures microscope images and displays them on your computer screens. The microscope comes with a darkfield condenser, a jewelry/gem clamp and top & bottom halogen lights. It offers a large zoom range (10X-60X) and crystal clear images. The digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features. This is an ideal instrument for jewelry dealers and collectors. This microscopy package is brand new in box.

    Features :

  • A perfect brightfield and darkfield microscopy system for jewelry/gem applications.
  • Large zoom magnification (10X-60X) microscopy turnkey package.
  • Darkfield condenser included.
  • Jewelry/gem clamp included.
  • 45 degree inclined 360 degree rotatable trinocular head.
  • High resolution optics with great flatness and contrast.
  • Sharp stereo erect images over a wide field view.
  • Crystal clear original true color images.
  • Eye tube with adjustable diopter.
  • Metal pillar stand finished with stain resistant enamel.
  • Accurate alignment ensuring a fatigue-free long time view.
  • Full optical glass elements.
  • Precise ground glass lenses.
  • All metal mechanical components.
  • Adjustable interpupillary distance.
  • Rubber eye-guards included.
  • Dual halogen illumination system.
  • Built-in top and bottom halogen lights.
  • CE approval electric apparatus.
  • Manufactured Under ISO 9001 Quality Control Standard
  • Excellent Five (5) Year Factory Warranty
  •

    Specifications:

  • Head: 45 degree inclined 360 degree swiveling binocular.
  • Eyepiece: 30.5mm widefield WF10X & WF15X.
  • Objective: 1.0-4.0X.
  • Zoom Range: 6:1.
  • Diopter Adjustment: +/-5dp.
  • Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm).
  • Working Distance: 3-3/8".
  • Stage Plates: a frosted glass objective plate and a white/black plastic plate with diameter: 3-3/4" (95mm).
  • Illumination: 12V/10W halogen lamps.
  • Accessories: dust cover, eye-guards and clips.
  •

    Camera Specifications:

  • Sensor: Aptina MT9T001
  • Sensor Type: CMOS
  • Sensor Size: 6.55x4.92mm
  • Pixel Size: 3.2
  • Resolution: 3.1MP
  • Frame Rate: 8@2048x1536, 22@1024x768, 43@680x510
  • Sensitivity: 1.0V/lux-sec
  • Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux
  •

    Software Specifications:

  • OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
  • Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port
  •

    Packing List :
  • One Trinocular Stereo Zoom Head
  • One Pillar Base with Top and Bottom Lights and Focusing Rack
  • One Pair of 30.5mm Widefield 10X Eyepieces
  • One Pair of 30.5mm Widefield 15X Eyepieces
  • One Frosted Round Glass Plate
  • One White/Black Round Plastic Plate
  • One Power Cord
  • One Pair of Clips
  • One Pair of Eye-guards
  • One Dust Cover
  • One 3MP Color Digital Camera with Reduction Lens
  • One 6' (1.8m) USB Cable
  • Two Eyepiece Adapters, 30.0mm 30.5mm
  • One CD with Software, Driver and User's Instructions
  • Shipping Weight: 20 lbs
  • AmScope SH-2TY-DK-3M Microscope
  •

    Microscope Type Stereo
    Specialized Darkfield
    Application Gemology/Jewelry
    Field View Widefield
    Head Type Trinocular
    Objective Power 1.0-4.0X
    Eyepiece Power 10X, 15X
    Eyepiece Size 30.5mm
    Camera Pixel 3MP
    Camera Sensor CMOS
    Stage Single-layer Stage with Clips
    Microscope Stand Table Stand: pillar
    Light Type Halogen
    Light Power 10W
    Light Shape Built-in
    Number of Light Bulbs 2
    Power Supply 110V, 220V
    Education College, Teaching/Training
    Manufacturer AmScope
    Color White
