AmScope 1.4MP Ultra-sensitive Universal Temperature-Regulated CCD Camera for Low-light Fluorescence

Recently viewed

AmScope 1.4MP Ultra-sensitive Universal Temperature-Regulated CCD Camera for Low-light Fluorescence
AmScope 1.4MP Ultra-sensitive Universal Temperature-Regulated CCD Camera for Low-light Fluorescence

AmScope 1.4MP Ultra-sensitive Universal Temperature-Regulated CCD Camera for Low-light Fluorescence

  • SKU: MF143BC-CCD
$3,149.99 $3,779.99
Quote Request

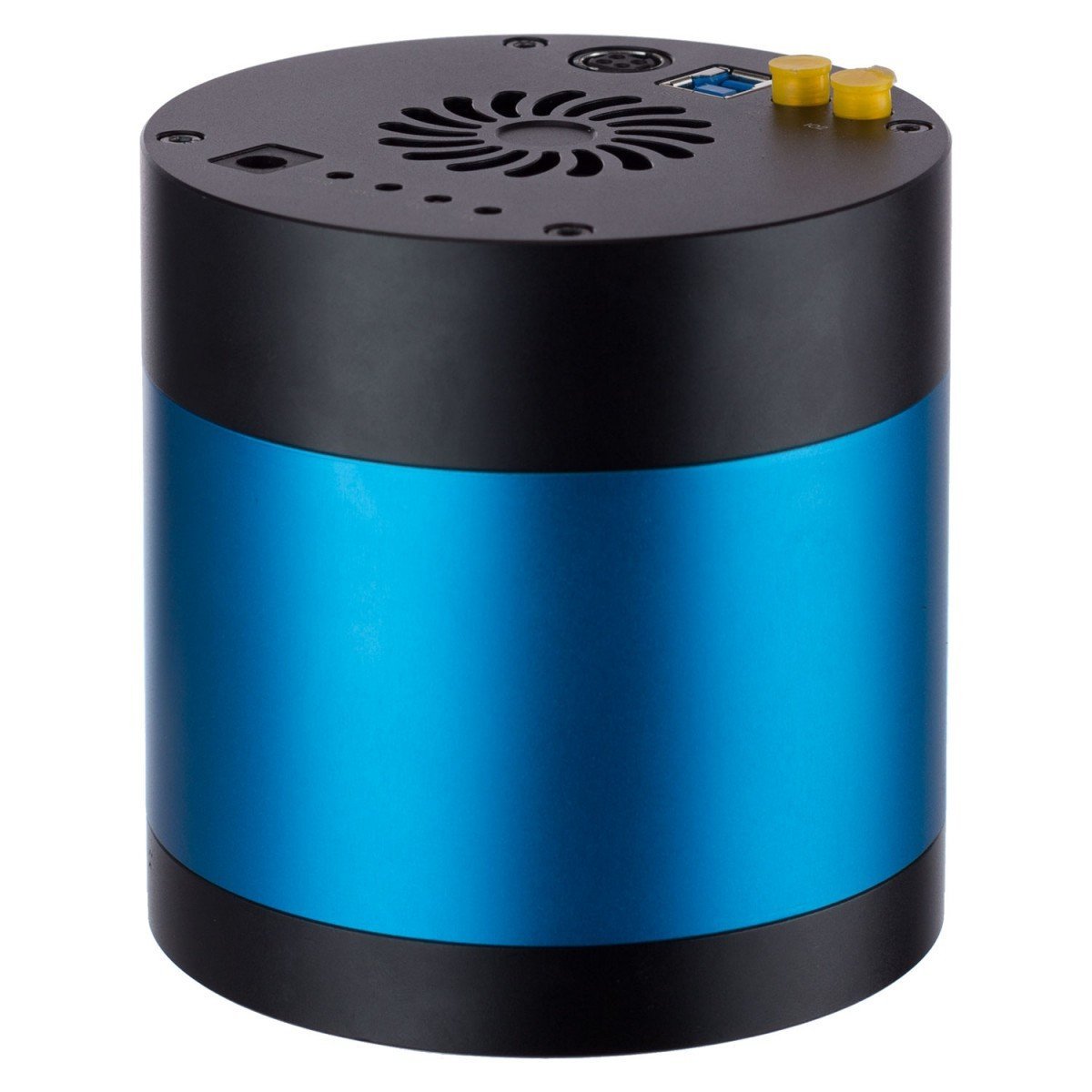

This camera is designed for fluorescence microscopy. It is a 1.4 M.P. ultra-sensitive color CCD camera with a 2/3" Sony HAD CCD sensor. The camera reduces noise with a built-in thermal-regulation system. The camera also features a global shutter design to eliminate artifacts.

With software available for Windows, Mac, and Linux, this camera package is a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. Independent preview and capture resolutions allow you to view high-speed video while simultaneously capturing high-definition images. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.

Camera Specifications:

  • Sensor: Sony ICX825AQA (color)
  • Sensor Type: CCD
  • Sensor Size: 2/3" class (10.7mm x 8.7mm)
  • Pixel Size: 6.45
  • Resolution: 1.4MP
  • Shutter: Global
  • Transfer Method: Progressive Scan
  • Frame Rate: 25 @ 1360x1024
  • Sensitivity: 2000mV
  • Connectivity: USB 3.0
  • Compatibility: Windows (32/64 bit) XP/Vista/7/8, Mac OSX, Linux
  • Mounting Sizes: C-mount
  •

    Software Specifications:

  • OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
  • Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0 port for maximum speed
  • Advanced software for Windows:
    - Stitching, EDF, video recording and measurement functions
    - Measurements for lengths, angles, arcs, areas and etc.
    - gives your computer screens the same field of view as your microscope's eyepiece
    - saves still images in BMP, TIFF, JPG, PICT, PTL or other formats
    - live video and still image capture can be set in different resolutions simultaneously
    More features: add layers, watermarks, mosaics, tiles; adjust color balance, exposure, saturation, contrast, orientation; change resolution, histogram, granulation, diffusion; transform images via edge detection, digital image warping; conducts measurements for single, parallel or perpendicular lines and rectangular, elliptical and irregular areas; adds notes, measurements, text, arrows, labels, and etc. using customizable text with different sizes and colors; conducts measurements in microns, millimeters, centimeters, inches, feet, and etc. under any magnification powers with desired tolerances
  • Life-time free software upgrades
  •

    Contents:

  • 1.4MP USB3.0 Temperature-regulated Digital Camera
  • Heavy-duty carrying case
  • Power adapter
  • 6' (1.8m) USB Cable
  • CD software and instructions
  • AmScope MF143BC-CCD
  • This camera is designed for fluorescence microscopy. It is a 1.4 M.P. ultra-sensitive color CCD camera with a 2/3" Sony HAD CCD sensor. The camera reduces noise with a built-in thermal-regulation system. The camera also features a global shutter design to eliminate artifacts.

    With software available for Windows, Mac, and Linux, this camera package is a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. Independent preview and capture resolutions allow you to view high-speed video while simultaneously capturing high-definition images. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.

    Camera Specifications:

  • Sensor: Sony ICX825AQA (color)
  • Sensor Type: CCD
  • Sensor Size: 2/3" class (10.7mm x 8.7mm)
  • Pixel Size: 6.45
  • Resolution: 1.4MP
  • Shutter: Global
  • Transfer Method: Progressive Scan
  • Frame Rate: 25 @ 1360x1024
  • Sensitivity: 2000mV
  • Connectivity: USB 3.0
  • Compatibility: Windows (32/64 bit) XP/Vista/7/8, Mac OSX, Linux
  • Mounting Sizes: C-mount
  •

    Software Specifications:

  • OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+
  • Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB3.0 port for maximum speed
  • Advanced software for Windows:
    - Stitching, EDF, video recording and measurement functions
    - Measurements for lengths, angles, arcs, areas and etc.
    - gives your computer screens the same field of view as your microscope's eyepiece
    - saves still images in BMP, TIFF, JPG, PICT, PTL or other formats
    - live video and still image capture can be set in different resolutions simultaneously
    More features: add layers, watermarks, mosaics, tiles; adjust color balance, exposure, saturation, contrast, orientation; change resolution, histogram, granulation, diffusion; transform images via edge detection, digital image warping; conducts measurements for single, parallel or perpendicular lines and rectangular, elliptical and irregular areas; adds notes, measurements, text, arrows, labels, and etc. using customizable text with different sizes and colors; conducts measurements in microns, millimeters, centimeters, inches, feet, and etc. under any magnification powers with desired tolerances
  • Life-time free software upgrades
  •

    Contents:

  • 1.4MP USB3.0 Temperature-regulated Digital Camera
  • Heavy-duty carrying case
  • Power adapter
  • 6' (1.8m) USB Cable
  • CD software and instructions
  • AmScope MF143BC-CCD
