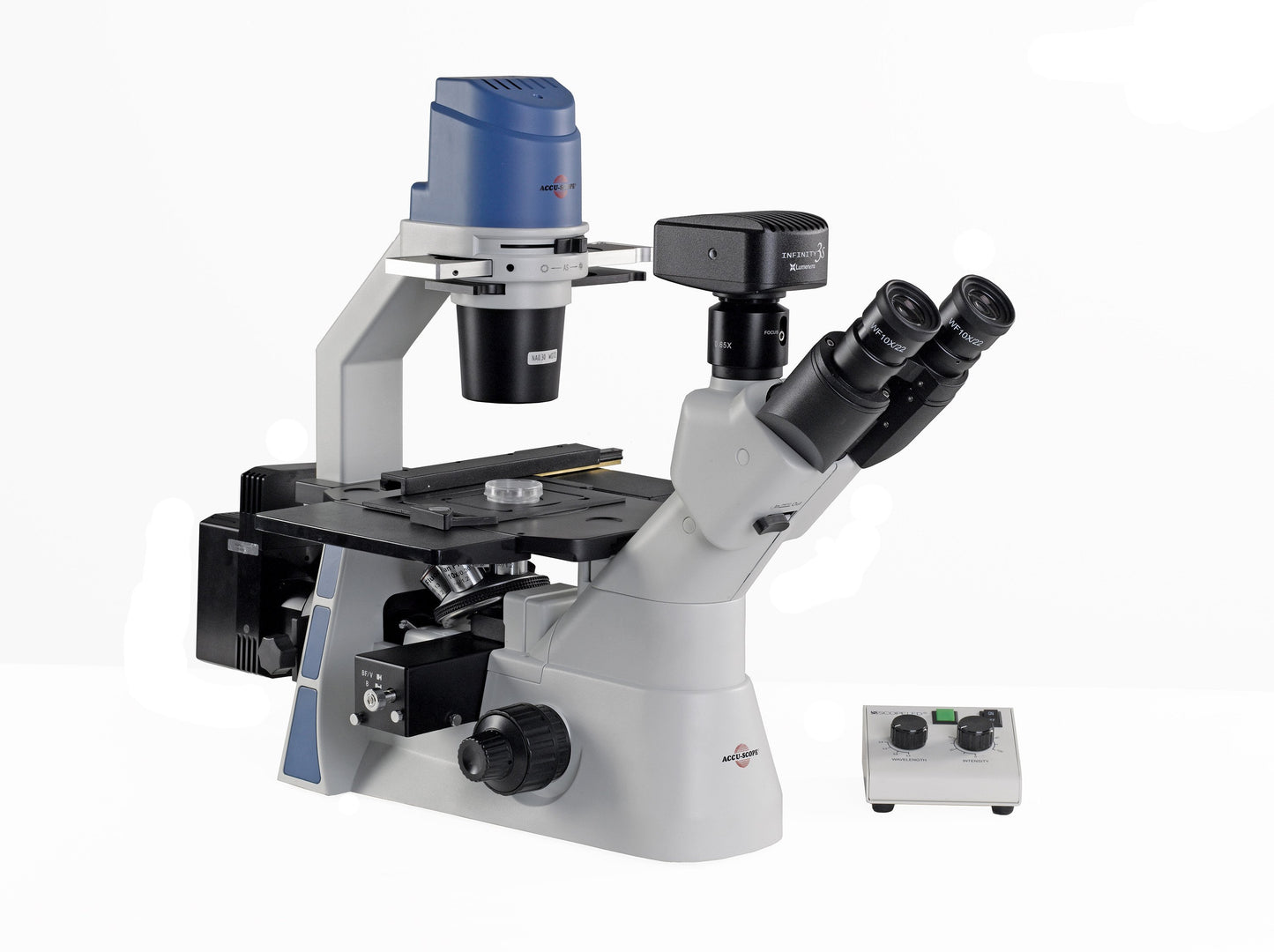

Accu-Scope EXI-310 Inverted Phase Contrast LED Fluorescence Microscope

Recently viewed

Accu-Scope EXI-310 Inverted Phase Contrast LED Fluorescence Microscope
Accu-Scope EXI-310 Inverted Phase Contrast LED Fluorescence Microscope
Accu-Scope EXI-310 Inverted Phase Contrast LED Fluorescence Microscope

Accu-Scope EXI-310 Inverted Phase Contrast LED Fluorescence Microscope

  • SKU: EXI-310-FL-LED-1
$10,577.00 $11,753.00
  • Trinocular Head
  • Phase Contrast Objectives
  • Up to 3 Filters
  • LED Fluorescence
  • 5 Year Mechanical & Electrical Warranty
Wavelengths
Quote Request

This inverted phase contrast LED fluorescence microscope is ideal for clinical and research applications. The EXI-310 microscope is equipped with extra long working distance objectives making it compatible with petri dishes, slides, well plates, roller bottles, and other specimen holders. This microscope provides fluorescence, phase contrast, and brightfield settings.  The X-Cite Mini+ fluorescence illuminator eliminates the need for any warm up / cool down time, bulb changes, and products little to no heat! You can choose up to three fluorescence filters to use with this system. A trinocular viewing head comes standard on this model, so you can add a camera at anytime. The 10x eyepieces have roll-down eyeguards for added comfort, and provide a 22mm field of view. The quintuple nosepiece comes with infinity plan achromat LWD 4x and infinity plan achromat phase LWD 10x & 20x objectives. Additional objectives are available, or you can upgrade to plan fluor objectives. The extra long working distance condenser has a N.A. of 0.3 with a 72mm working distance. The phase contrast slider has 4x/10x and 20x/40x phase annulli and a brightfield position. The flat top stage has a large working area, and an optional mechanical stage can be added to the EXI-310-PH microscope. The 5-watt variable LED illuminator is raged for over 25,000 hours of continued use. This ergonomically designed microscope is built with all internal metal gears and designed for long-term use in a professional setting.

Specifications
Head: Trinocular viewing head with photo tube, inclined 45°, light distribution binocular 100% or trinocular tube 100%
Eyepieces: WF10x/22mm focusable eyepieces with roll-down eyeguards
Nosepiece: Side facing quintuple nosepiece
Objectives: Infinity Plan Achromat LWD 4x, Infinity Plan Achromat Phase LWD 10x & 20x
Fluorescence:

X-Cite Mini+ LED Fluorescence Illuminator 365nm-700nm

Filter Options:

DAPI - Exciter AT350/50x - Emitter AT460/50m

GFP/FITC - Exciter AT480/30x - Emitter AT535/40m

TRITC - Exciter AT540/25x - Emitter AT605/55m

Texas Red - Exciter AT575/30x - Emitter AT640/60m

Cy5 - Exciter AT620/50x - Emitter AT690/50m

Acridine Orange/ Di-8 ANEPPS - Exciter AT480/30x - Emitter AT620/560

***Other filters available, please contact us***

Stage: Fixed plain stage 160mm x 250 with glass and aluminum insert plates
Condenser:

ELWD N.A. 0.3, WD= 72mm

Phase Contrast Slider 4x/10x, 20x/40x, Brightfield

Focusing: Coaxial coarse and fine focusing system with adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass for fine focus gear
Illumination: 5 watt LED Koehler with variable intensity control; LED bulb is rated for over 25,000 hours of continued use; universal power supply 110-240v
Misc:

Green filer, Ground Glass Filter, 45mm LBD filter, Phase Telescope, Dust Cover, Power Cord, Manual

Warranty: 5 year limited warranty for parts, labor and electronic components; 1 year warranty on LED bulb
