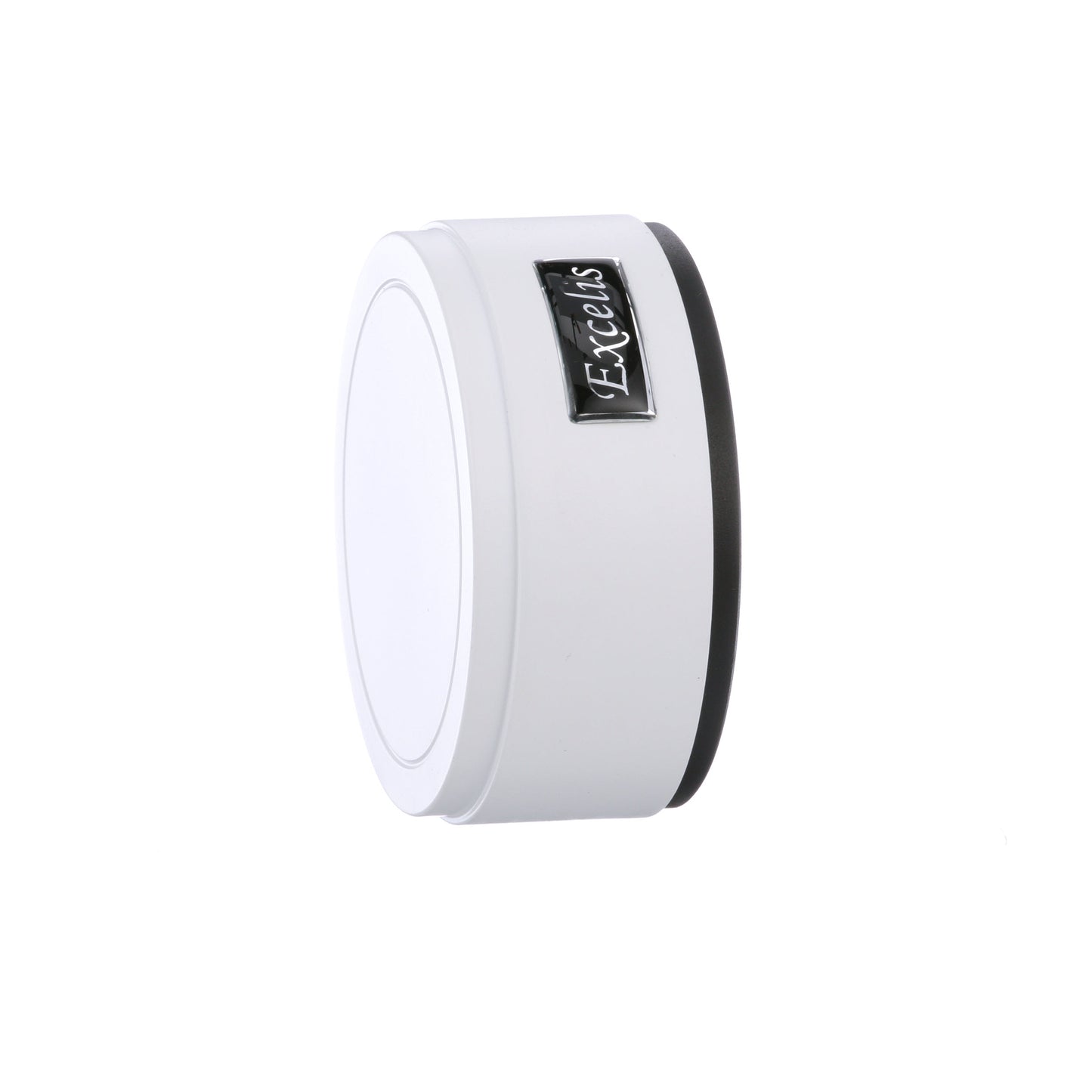

Accu-Scope Excelis MPX-16C Microscope Camera 16.0 M.P.
- SKU: AU-16-CMOS
$850.00
$955.00
- Order within
This new Excelis camera by Accu-Scope is a high speed digital microscopy camera offering 16 M.P. resolution images with a USB 3.0 interface. Due to its 5GB high speed data transfer of this camera you will be able to easily find and focus your specimen at full resolution. The camera includes CaptaVision which offers capiblities like image/video capture and playback, measurement, annotation, extended depth of focus, image stitching, and more.
| Specifications | |
|---|---|
| Dynamic/Static Resolution: |
4608x3456, 2304x1728, 1600x1200, 1028x960 |
| Sensor: | CMOS |
| Frame Rate: | 5fps@16MP, 25fps@4MP, 30fps@2MP, 30fps@1.2MP |
| Image Processor: | Built-in ISP |
| Image Transmission: | High-speed (FPGA+DDR) |
| Pixel Size: | 1.335µm x 1.335µm |
| Scan Mode: | Progressive |
| Exposure Time: | 1ms - 999ms |
| Exposure Mode: | Auto/Manual |
| White Balance: | Auto/Manual |
| Settings: | White balance, Gain, Noise Reduction, Gamma, Exposure Time, HDR |
| Color Temp: | 1800K-10000K |
| Operating Temp: | 0-60°C |
| Data Interface: | USB 3.0, compatible with USB 2.0 |
| PC Software: |
CaptaVision Imaging Software (for PC only; Mac OS not supported) Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function; fluorescence image settings; fluorescence multi-color channel merge; HDR (High Dynamic Range) function Image Types: JPEG, BMP, TIFF and RAW |
| System Compatibility: | Windows XP, Vista, 7, 8, and 10 (32 or 64 bit) MAC OSX (for image transfer to Mac OSX ONLY) System Requirements: Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port or higher |
| Warranty: | 1 Year |
This new Excelis camera by Accu-Scope is a high speed digital microscopy camera offering 16 M.P. resolution images with a USB 3.0 interface. Due to its 5GB high speed data transfer of this camera you will be able to easily find and focus your specimen at full resolution. The camera includes CaptaVision which offers capiblities like image/video capture and playback, measurement, annotation, extended depth of focus, image stitching, and more.
| Specifications | |
|---|---|
| Dynamic/Static Resolution: |
4608x3456, 2304x1728, 1600x1200, 1028x960 |
| Sensor: | CMOS |
| Frame Rate: | 5fps@16MP, 25fps@4MP, 30fps@2MP, 30fps@1.2MP |
| Image Processor: | Built-in ISP |
| Image Transmission: | High-speed (FPGA+DDR) |
| Pixel Size: | 1.335µm x 1.335µm |
| Scan Mode: | Progressive |
| Exposure Time: | 1ms - 999ms |
| Exposure Mode: | Auto/Manual |
| White Balance: | Auto/Manual |
| Settings: | White balance, Gain, Noise Reduction, Gamma, Exposure Time, HDR |
| Color Temp: | 1800K-10000K |
| Operating Temp: | 0-60°C |
| Data Interface: | USB 3.0, compatible with USB 2.0 |
| PC Software: |
CaptaVision Imaging Software (for PC only; Mac OS not supported) Advanced Camera Controls: live/still image measurement and annotation, flat field correction; extended depth of focus (focus stacking); image stitching; HDR (High Dynamic Range) function; fluorescence image settings; fluorescence multi-color channel merge; HDR (High Dynamic Range) function Image Types: JPEG, BMP, TIFF and RAW |
| System Compatibility: | Windows XP, Vista, 7, 8, and 10 (32 or 64 bit) MAC OSX (for image transfer to Mac OSX ONLY) System Requirements: Intel processor (Core 2 Duo or higher); 2GB memory or more; USB 2.0 Hi-Speed port or higher |
| Warranty: | 1 Year |
