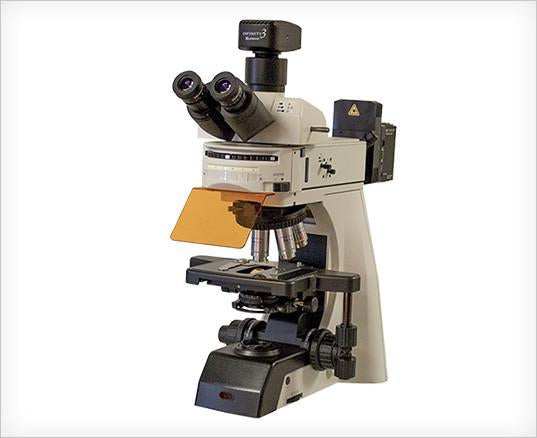

Accu-Scope EXC-500 Clinical Microscope

NEW! Request a quote for more information!

ACCU-SCOPE's new EXC-500 Series offers best-in-class performance and value for clinical laboratory and research applications. The newly designed NIS optical system provides sharp, crisp images via Plan or S-Plan APO objectives. The EXC-500 Series' modular design is compatible with many accessories for research, fluorescence, phase contrast and darkfield applications. Dual-viewing and multi-head configurations available!

Best-in-Class Comfort

ACCU-SCOPE's EXC-500 Series defines a new standard for ergonomics for laboratory operators. Designed for clinical and research environments, the EXC-500 controls are intuitively placed for operator comfort and ease of use diminishing repetitive movements and eye fatigue.

Digital Imaging Made Simple

With a range of viewing heads available, the EXC-500 Series offers unsurpassed imaging efficiency. When combined with our signature Lumenera® Black Series cameras, operator workflow and productivity are enhanced with the Infinity Analyze imaging software allowing for a seamless system for image capture, measurements, annotations and much more.

Optimal LED Eco-illumination for Pathology & Cytology

Engineered with the purpose of providing a solution for operators attempting to detect purples, cyans and reds, the EXC-500 Series utilizes a white LED with a high color rendering index that is similar to halogen allowing for color renderings that are equal to those of halogen lamp images. The motion sensing Eco-illumination automatically turns off the transmitted LED illuminator when it detects the operator has left for 30 minutes, saving both energy and lamp life.

Specifications
Head: Binocular or Ergonomic Tilting Binocular, or Trinocular
Eyepieces: WF 10x/22mm focusable eyepieces with eyeguards
Nosepiece: Reversed sextuple, ball bearing nosepiece with positive click stops
Objectives: Clinical Labs: NIS60 Plan achromat 4x, 10x, 40xR and 100xR oil.
Research/Pathology: NIS60 S-Plan APO 4x, 10x, 40xR and 100xR oil.
Stage: Mechanical stage with GorillaTM Glass insert and tension adjustable controls.
Condenser: Achromat swing out condenser 0.9 dry/1.25 oil on a rack and pinion with iris diaphragm.
Illumination: Koehler illumination - 3 watt variable S-LED illuminator Universal power supply 110v-240v.
Focusing:
Coaxial focusing system with adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear.
Mics.

Dust cover, power cord, instruction manual, UL Approved

5 Year Mechanical & Electrical Warranty

Trinocular ergonomic viewing head

A tilting trinocular tube accommodates operators of various builds and postures. The optical path beam splitter offers three different viewing methods (0:100, 100:0, and 80:20).

EXC-500 Gorilla<sup>TM</sup> glass Mechanical Stage

Our revolutionary, rackless mechanical stage with a GorillaTM glass stage insert allows operators to clearly and easily see their stained specimens while moving the slide effortlessly on the stage.

EXC-500 FRAEN Fluorescence Illuminator

The EXC-500's modular design allows for simple integrations with fluorescence, phase contrast, polarization and darkfield to provide users with a system that can scale as their needs evolve.

 Accu-Scope EXC-500 Brohcure

ACCU-SCOPE's new EXC-500 Series offers best-in-class performance and value for clinical laboratory and research applications. The newly designed NIS optical system provides sharp, crisp images via Plan or S-Plan APO objectives. The EXC-500 Series' modular design is compatible with many accessories for research, fluorescence, phase contrast and darkfield applications. - See more at: http://accu-scope.com/products/exc-500-microscope-series/#sthash.uIiBsUS5.dpuf
